ICON Stage 10 CDCV Tubular Suspension System for 23-25 Toyota Sequoia

Name: ICON Stage 10 CDCV Tubular Suspension System for 23-25 Toyota Sequoia
Brand: ICON
SKU: K53240T
Price: 7950.3 USD
Availability: InStock

$7,950.30 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53240T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

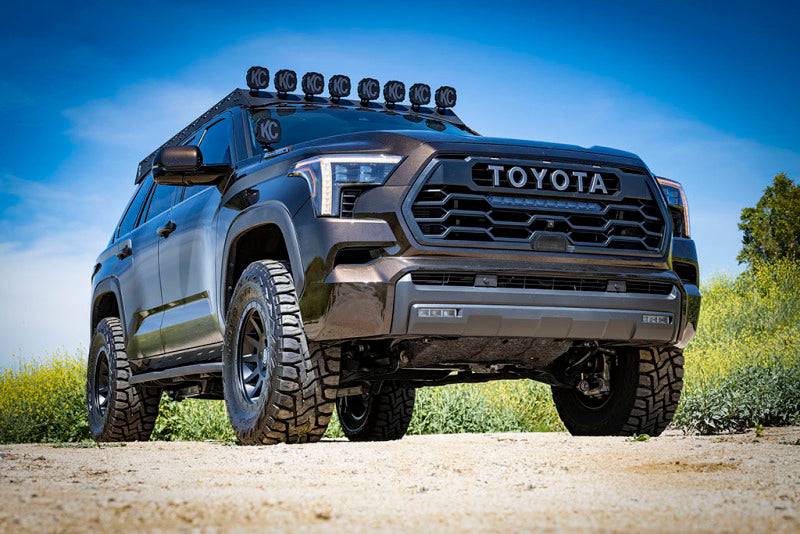

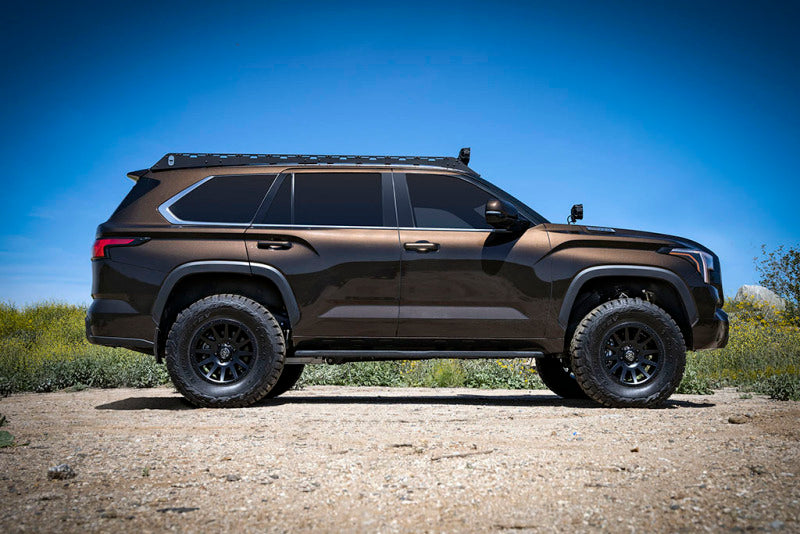

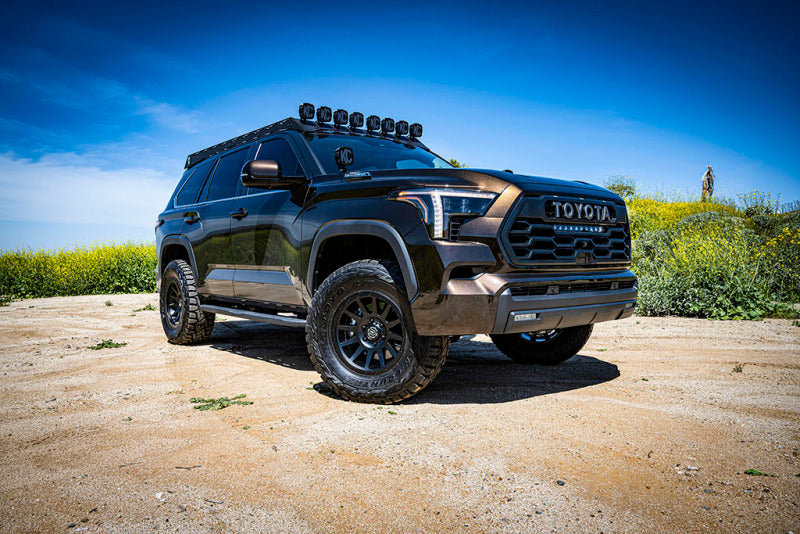

Lifts the 2023-2025 Toyota Sequoia up to 4.5 inches in front and 2 inches in rear for clearance up to 35-inch tires
2.5 Series coilovers and rear reservoir shocks add up to 40% more wheel travel than stock
10-position CDCV valves let you fine-tune compression damping by hand for any terrain
Tubular upper control arms with Delta Joint Pro correct geometry and add caster
Adjustable tubular rear links and billet track bar keep the rear axle precisely located
Dual-rate rear coil springs balance ride comfort with load support
Complete bolt-on front and rear system requires no additional aftermarket arms

The ICON Vehicle Dynamics K53240T Stage 10 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 4.5 inches of adjustable front lift and clearing up to a 35-inch tire. It uses CDCV valving with 10 external settings of manual compression damping adjustment with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Up to 4.5 inches of front lift and 2 inches of rear lift on most submodels for an aggressive, level stance
2.5 Series coilovers and rear reservoir shocks deliver up to 40% more travel than stock with superior ride quality on- and off-road
10-position CDCV compression damping lets you tune ride firmness by hand without tools
Tubular upper control arms restore proper geometry, add caster, and improve component clearance
Adjustable rear links and billet track bar keep the rear axle centered and properly located through the lift

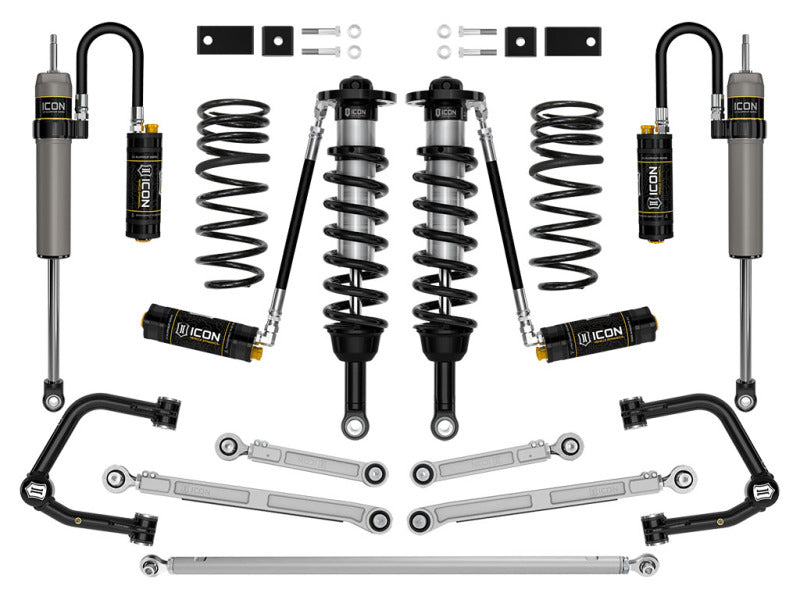

What's Included

2.5 Series front coilovers with remote reservoirs and CDCV adjusters
2.5 Aluminum Series rear remote reservoir shocks
Tubular upper control arm kit with Delta Joint Pro
Dual-rate rear coil springs
Tubular steel adjustable rear upper and lower links
Billet adjustable rear track bar
Front sway bar drop kit

Specifications

Series: ICON Stage 10
Valve type: CDCV (manual 10-position compression damping)
Front coilover: 2.5 Series with remote reservoir
Rear shock: 2.5 Aluminum Series with remote reservoir
Front lift: 3-4.5 inches (1-2.5 inches on TRD Off-Road / TRD Pro)
Rear lift: 2 inches (0 inches on TRD Off-Road / TRD Pro)
Max tire size: up to 35 inches

Fitment

Engineered specifically for the third-generation Toyota Sequoia. This is a complete standalone front and rear system; no separate aftermarket control arms are required. ADAS recalibration is required after installation, and the system is not compatible with factory Adaptive Variable Suspension. ICON recommends a diff drop kit on non-TRD 4WD models and a dedicated bracket on air-suspension-equipped vehicles.

2023-2025 Toyota Sequoia (front and rear)

FAQ

Will the ICON K53240T fit a Sequoia with factory air or adaptive suspension?

No. The K53240T is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53240T provide, and is the damping adjustable?

It provides 3 to 4.5 inches of adjustable front lift and about 2 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The 2.5 Series coilovers and rear shocks use CDCV valving with 10 external settings of manual compression damping adjustment.

What does the Stage 10 system include, and how does it differ from the other ICON stages?

Stage 10 is the top of the range: CDCV 2.5 Series coilovers and rear shocks with 10-setting manual compression adjustment, tubular upper control arms, tubular adjustable rear links and a billet adjustable rear track bar.
