ICON Stage 1 3.0 CDCV Billet Lift Kit for 2022-2025 Toyota Tundra

Name: ICON Stage 1 3.0 CDCV Billet Lift Kit for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53211
Price: 8799.03 USD
Availability: InStock

$8,799.03 USD

Sale Sold out

Final Sale — no returns or exchanges

Shipping calculated at checkout.

SKU:K53211

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 1.25-3.25 inches of front lift to level the stance and clear larger tires
Large-bore 3.0 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDCV compression adjusters let you fine-tune ride firmness from soft street to firm off-road by hand
Included billet upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 1 3.0 Series Suspension System (K53211) is a complete front-and-rear lift system for the 2023-2025 Toyota Sequoia and 2022-2025 Toyota Tundra, delivering 1.25-3.25 inches of adjustable front lift with 3.0 Series front coilovers and billet upper control arms.

Key Benefits

Delivers 1.25-3.25 inches of front lift to level the stance and clear larger tires
Large-bore 3.0 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDCV compression adjusters let you fine-tune ride firmness from soft street to firm off-road by hand
Included billet upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

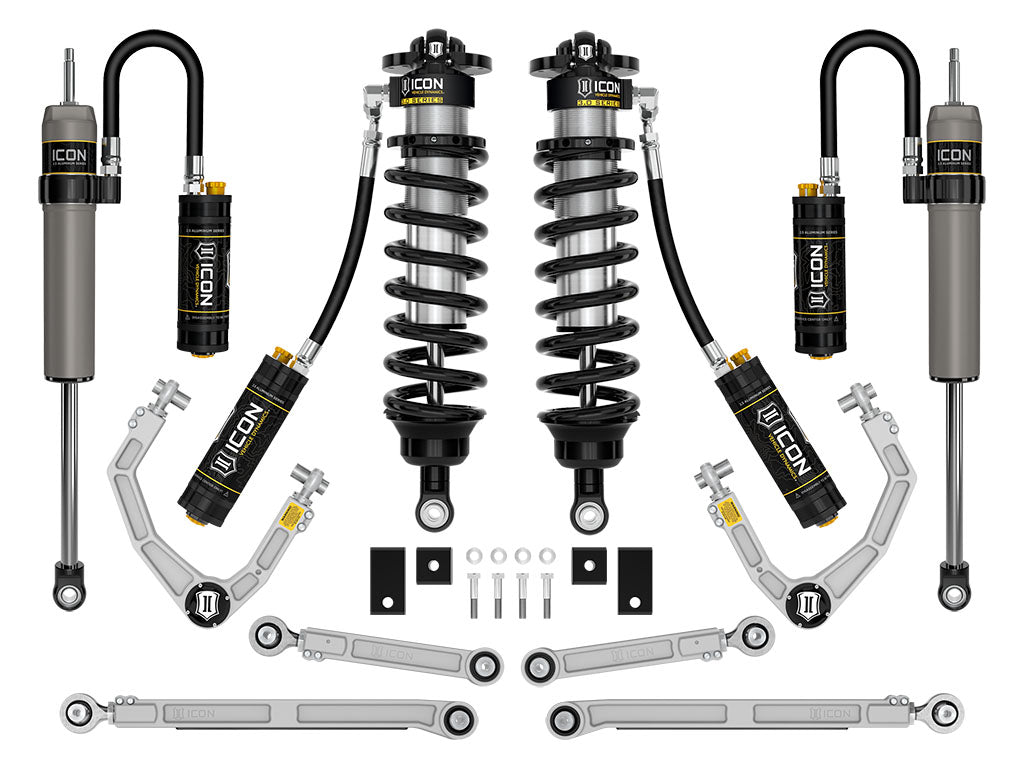

What's Included

Pair of 3.0 Series remote-reservoir front coilovers with CDCV compression adjusters
Pair of billet aluminum upper control arms with the patented ICON Delta Joint PRO
Pair of 2.5 Aluminum Series remote-reservoir rear shocks with CDCV compression adjusters
Front sway bar drop brackets and vehicle-specific mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53211
System: Stage 1
Front damper: 3.0 Series remote-reservoir coilover, CDCV compression-adjustable
Rear damper: 2.5 Aluminum Series remote-reservoir with CDCV adjusters
Upper control arms: billet aluminum
Front lift: 1.25-3.25 inches
Rear lift: 0-1.5 inches (0-1 in. with the TRD package)
Position: complete front-and-rear system

Fitment

This system is engineered for the 2023-2025 Toyota Sequoia and 2022-2025 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2023-2025 Toyota Sequoia (front and rear)
2022-2025 Toyota Tundra (front and rear)

FAQ

Does the ICON K53211 fit my Toyota Tundra?

It fits the 2023-2025 Toyota Sequoia and 2022-2025 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does the Stage 1 kit include upper control arms?

Yes. The K53211 is a complete system that includes billet upper control arms with the ICON Delta Joint PRO, so no separate aftermarket arms are needed.

What does CDCV mean on this ICON system?

CDCV is ICON's Compression Damping Control Valve — an external, hand-adjustable compression knob (10 positions) on each shock that lets you tune ride firmness without tools.
