ICON Stage 7 Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 7 Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53237
Price: 5283.32 USD
Availability: InStock

$5,283.32 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53237

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 7 front and rear suspension system for up to 3-4.5 in of lift
2.5 Series remote reservoir front coilovers resist heat fade on long trail runs
ICON Vehicle Specific (V.S.) valving is tuned for balanced road and trail control
Billet aluminum upper control arms restore correct front-end geometry
Serviceable, rebuildable ICON Delta Joint PRO replaces the OE ball joint
Dual-rate rear coils and 2.5 reservoir rear shocks balance the lift
Clears up to 35 in tires for an aggressive overland stance

The ICON Vehicle Dynamics K53237 Stage 7 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 4.5 inches of adjustable front lift and clearing up to a 35-inch tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Up to 3-4.5 in of front lift and 2 in of rear lift over stock for an aggressive, level stance (TRD Off-Road and TRD Pro models lift 1-2.5 in front, 0 in rear)
2.5 Series remote reservoir coilovers add oil volume and heat dissipation to resist fade under hard use
ICON-tuned Vehicle Specific (V.S.) valving delivers controlled, fade-resistant damping on the trail and the highway
Billet aluminum upper control arms with the serviceable, rebuildable ICON Delta Joint PRO correct front-end geometry and add camber/caster adjustment
Clears up to 35 in tires for a true overland and off-road build

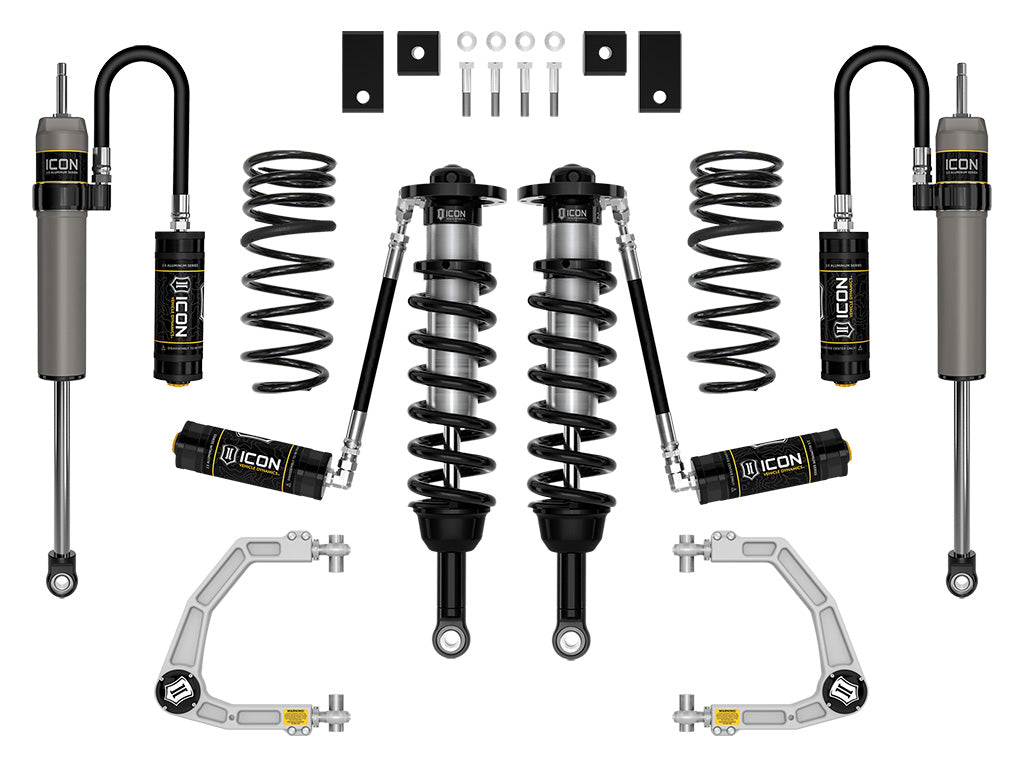

What's Included

Pair of V.S. 2.5 Series remote reservoir front coilovers
Billet aluminum upper control arm kit with ICON Delta Joint PRO
Pair of 2.5 Aluminum Series rear remote reservoir shocks
Dual-rate rear coil springs
Front sway bar drop kit

Specifications

System: Stage 7 complete front and rear suspension
Front shocks: V.S. 2.5 Series remote reservoir coilover (non-adjustable)
Rear shocks: 2.5 Aluminum Series remote reservoir
Upper control arms: Billet aluminum with Delta Joint PRO
Front lift: 3-4.5 in (1-2.5 in on TRD Off-Road / TRD Pro)
Rear lift: 2 in (0 in on TRD Off-Road / TRD Pro)
Max tire: up to 35 in

Fitment

Direct fit for the 2023-2025 Toyota Sequoia (all submodels). Not compatible with vehicles equipped with factory Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). Non-TRD 4WD models should add an ICON diff drop (PN 55156) to prevent CV axle damage; TRD aluminum skid plate vehicles require spacer PN 55164. ADAS recalibration is required after installation.

2023-2025 Toyota Sequoia - Front and Rear

FAQ

Will the ICON K53237 fit a Sequoia with factory air or adaptive suspension?

No. The K53237 is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53237 provide, and is the damping adjustable?

It provides 3 to 4.5 inches of adjustable front lift and about 2 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the Sequoia, so there is no external compression-adjuster knob.

What does the Stage 7 system include, and how does it differ from the other ICON stages?

Stage 7 combines billet aluminum upper control arms with V.S. 2.5 Series remote-reservoir front coilovers and 2.5 Aluminum Series remote-reservoir rear shocks, all using ICON's non-adjustable Vehicle Specific valving.
