ICON Stage 1 Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 1 Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53231
Price: 1939.02 USD
Availability: InStock

$1,939.02 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53231

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 0-2.13 inches of front lift to level the stance and clear larger tires

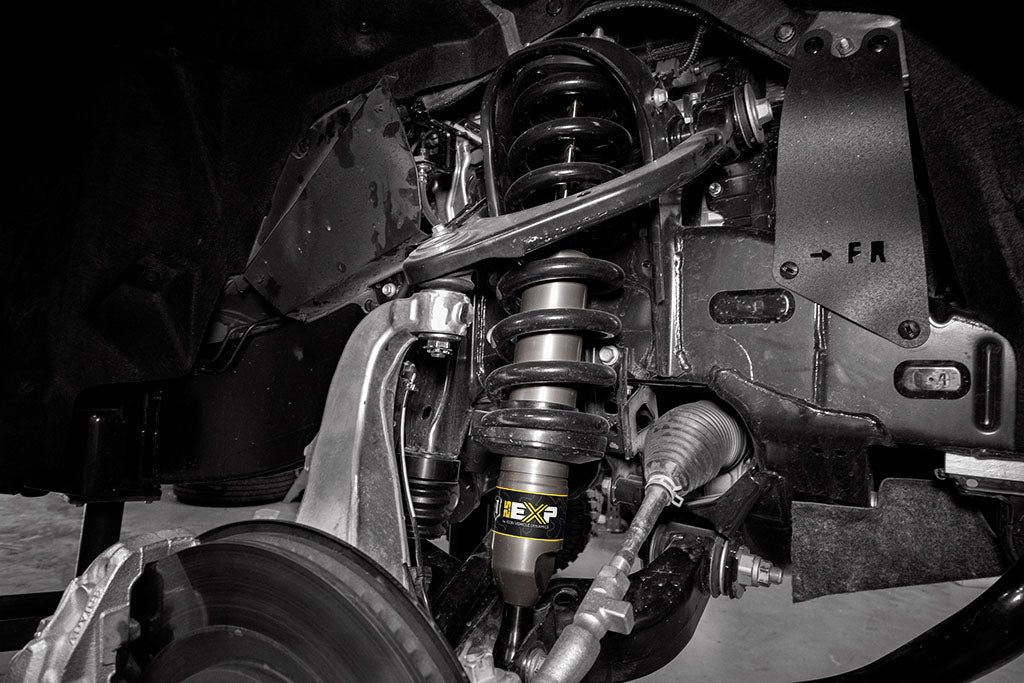

2.5 EXP Series front shocks with internal reservoirs bolt to the factory coil for improved control without a full coilover
Retains the factory upper control arms within the rated lift range for a simpler install
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 1 EXP Suspension System (K53231) is a complete front-and-rear shock package for the 2023-2025 Toyota Sequoia, delivering 0-2.13 inches of front lift using 2.5 EXP Series front shocks that reuse the factory coil springs while retaining the factory upper control arms.

Key Benefits

Delivers 0-2.13 inches of front lift to level the stance and clear larger tires
2.5 EXP Series front shocks with internal reservoirs bolt to the factory coil for improved control without a full coilover
Retains the factory upper control arms within the rated lift range for a simpler install
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

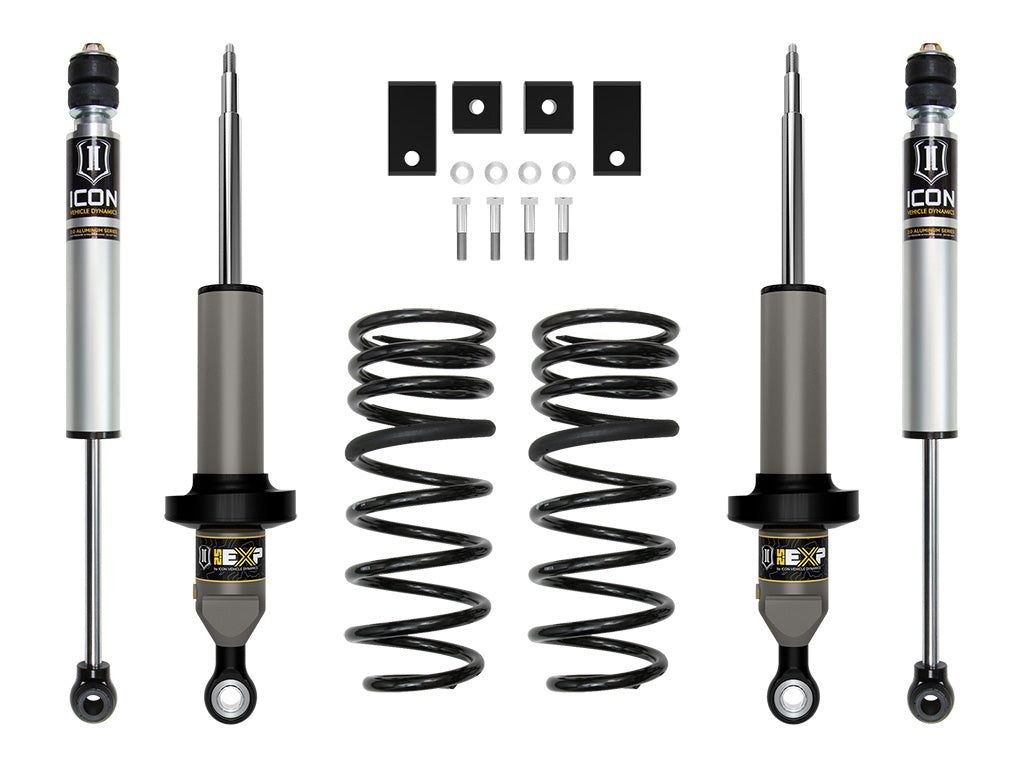

What's Included

Pair of 2.5 EXP Series front shocks with internal reservoirs (reuse the factory coil springs and hardware)
Pair of 2.0 Aluminum Series rear shocks
Sway bar relocation brackets and vehicle-specific mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53231
System: Stage 1
Front damper: 2.5 EXP Series internal-reservoir shock, non-adjustable velocity-sensitive valving
Rear damper: 2.0 Aluminum Series
Upper control arms: not included (reuses factory arms within the rated range)
Front lift: 0-2.13 inches
Rear lift: 2 inches on non-TRD models; 0 in. on TRD Off-Road models
Position: complete front-and-rear system

Fitment

This system is engineered for the 2023-2025 Toyota Sequoia. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), vehicles with the Load-Leveling Rear Height Control air suspension, or TRD Pro models. On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2023-2025 Toyota Sequoia (front and rear)

FAQ

Does the ICON K53231 fit my 2023-2025 Sequoia?

Yes, it fits the 2023-2025 (third-generation) Toyota Sequoia in 2WD and 4WD. It does not fit vehicles with Adaptive Variable Suspension (AVS), the Load-Leveling Rear air suspension, or the TRD Pro.

Does this kit include upper control arms?

No. The K53231 reuses the factory upper control arms within its rated lift range; ICON upper control arms are available separately if you want added geometry correction.

Do I need a differential drop kit?

On 4WD models without the TRD Off-Road package, ICON recommends its differential drop kit (part #55156) to keep proper CV-axle angles at the lifted height.
