ICON Stage 6 Tubular Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 6 Tubular Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53236T
Price: 3982.68 USD
Availability: InStock

$3,982.68 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53236T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Up to 3-4.5 inches of adjustable front lift for an aggressive, level stance
Clears up to 35-inch tires for a more capable wheel-and-tire package
2.5 Series remote-reservoir front coilovers resist fade and dissipate heat under hard use
Tubular Delta Joint Pro upper control arms correct geometry and add caster
V.S. 2.0 aluminum remote-reservoir rear shocks smooth out rough terrain
Complete front-and-rear system tuned as a matched package by ICON
Backed by ICON's lifetime warranty on non-wearable components and weldments

The ICON Vehicle Dynamics K53236T Stage 6 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 4.5 inches of adjustable front lift and clearing up to a 35-inch tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Up to 3-4.5 inches of adjustable front lift over stock (1-2.5 inches on TRD Off-Road/Pro) for an aggressive, level stance
Clears up to 35-inch tires for a bolder wheel-and-tire setup
2.5 Series remote-reservoir front coilovers improve heat dissipation and fade resistance off-road
Tubular upper control arms with Delta Joint Pro correct front-end geometry and add caster for better steering response
Rear remote-reservoir shocks deliver smoother ride quality and control over rough terrain

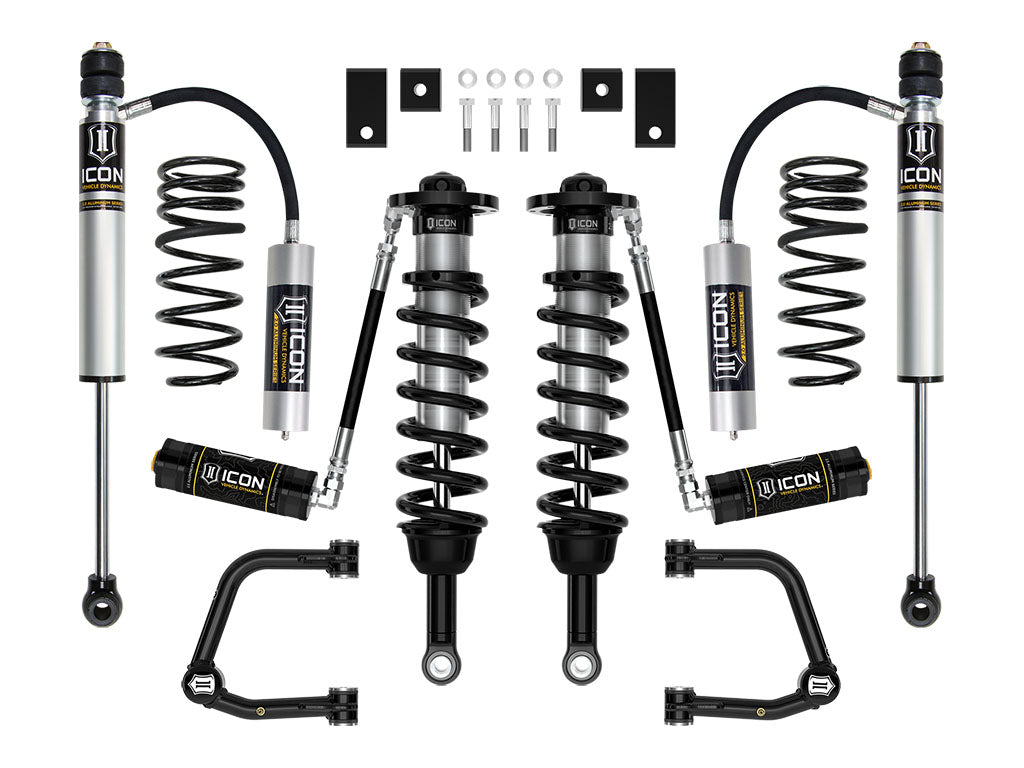

What's Included

2.5 Series front coilover kit with remote reservoirs (pair)
Tubular upper control arm kit with Delta Joint Pro ball joints
V.S. 2.0 Aluminum Series rear remote-reservoir shocks (pair)
Dual-rate rear coil springs
Sway bar drop brackets

Specifications

Stage: 6 (Tubular)
Front lift: 3-4.5 inches (non-TRD); 1-2.5 inches (TRD Off-Road/Pro)
Rear lift: 2 inches (non-TRD); 0 inches (TRD Off-Road/Pro)
Front damping: 2.5 Series remote reservoir, adjustable preload coilover
Rear damping: V.S. 2.0 Aluminum Series remote reservoir
Upper control arms: included (tubular, Delta Joint Pro)
Max tire size: up to 35 inches

Fitment

Engineered specifically for the 2023-2025 Toyota Sequoia (third generation). Not compatible with vehicles equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation. A differential drop kit is recommended on non-TRD models, and ICON skid plate spacer kit #55164 is required if equipped with the factory aluminum skid plate.

2023-2025 Toyota Sequoia (front and rear)

FAQ

Will the ICON K53236T fit a Sequoia with factory air or adaptive suspension?

No. The K53236T is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53236T provide, and is the damping adjustable?

It provides 3 to 4.5 inches of adjustable front lift and about 2 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the Sequoia, so there is no external compression-adjuster knob.

What does the Stage 6 system include, and how does it differ from the other ICON stages?

Stage 6 pairs tubular upper control arms with V.S. 2.5 Series remote-reservoir front coilovers and V.S. 2.0 remote-reservoir rear shocks.
