ICON Stage 8 Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 8 Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53238S
Price: 6826.71 USD
Availability: InStock

$6,826.71 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53238S

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Up to 4.5" of adjustable front lift with clearance for 35" tires
ICON-tuned Vehicle Specific (V.S.) valving delivers consistent, fade-resistant damping
Billet aluminum upper control arms with Delta Joint Pro for corrected alignment geometry
Billet rear lower links add strength and free up rear articulation
2.5 Series remote-reservoir shocks front and rear for consistent fade-free damping
Dual-rate rear coil springs deliver a level, load-ready stance
Full billet construction for an aggressive look and long-term durability

The ICON Vehicle Dynamics K53238S Stage 8 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 4.5 inches of adjustable front lift and clearing up to a 35-inch tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Up to 4.5" of adjustable front lift for proper stance and clearance for 35" tires
ICON-tuned Vehicle Specific (V.S.) 2.5 Series remote-reservoir damping for fade-resistant control on and off road
Billet aluminum upper control arms with Delta Joint Pro for corrected alignment geometry and durable, maintenance-light pivots
Billet rear lower links free up rear suspension movement while adding strength and ground clearance
2.5 Series remote-reservoir front and rear shocks for superior heat dissipation and consistent damping
Dual-rate rear coil springs deliver level front-to-rear stance with improved load support

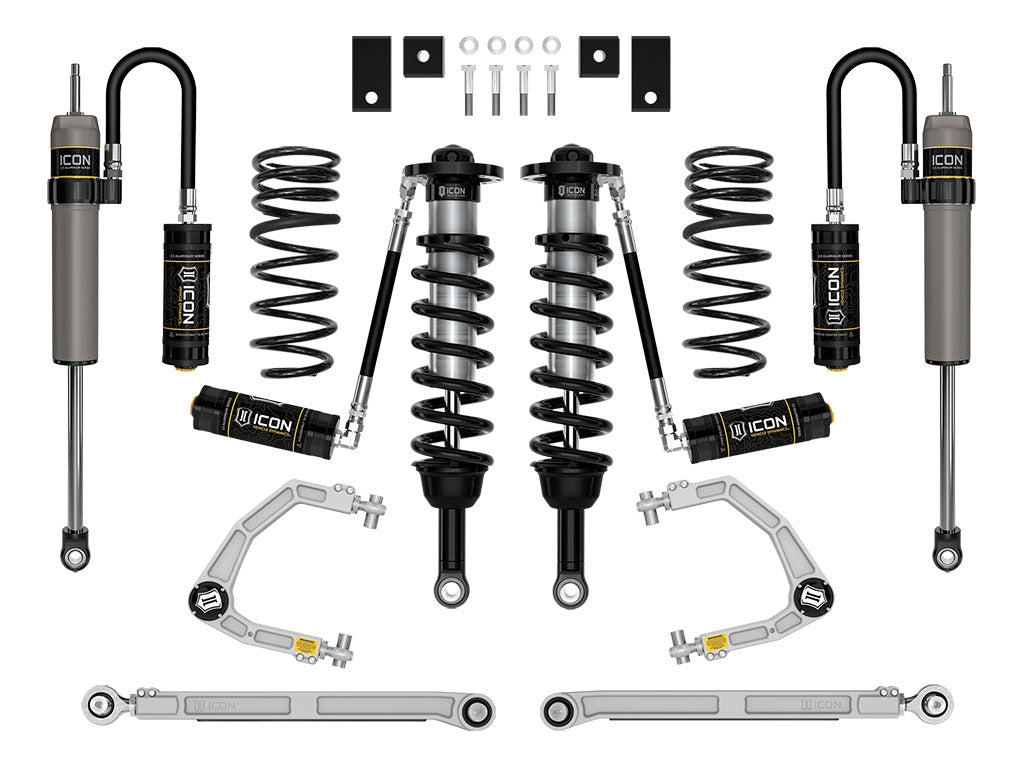

What's Included

Pair of V.S. 2.5 Series remote-reservoir front coilover shocks
Billet aluminum front upper control arms with Delta Joint Pro (PN 58561DJ)
Front sway bar drop / relocation kit (PN 55154)
Billet rear lower link kit (PN 54002)
Pair of rear 2.5 Series VS RR shocks (PN 57840P)
Dual-rate rear coil springs (PN 51216)
All mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53238S
System: Stage 8 complete front and rear suspension system
Construction: Billet aluminum
Front shock: V.S. 2.5 Series remote reservoir (non-adjustable valving)
Rear shock: 2.5 Series remote reservoir
Front lift: 3-4.5" (1-2.5" on TRD Off-Road / TRD Pro)
Rear lift: 4" (2" on TRD Off-Road / TRD Pro)
Max tire fitment: up to 35"

Fitment

Engineered specifically for the 2023-2025 (third-generation) Toyota Sequoia. Not compatible with vehicles equipped with Adaptive Variable Suspension (AVS) or rear load-leveling air suspension. ADAS recalibration is required after installation. On non-TRD models ICON recommends the Diff Drop kit (PN 55156) or factory TRD axles; TRD aluminum skid plates require the spacer kit (PN 55164). Sold separately.

2023-2025 Toyota Sequoia (front and rear)

FAQ

Will the ICON K53238S fit a Sequoia with factory air or adaptive suspension?

No. The K53238S is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53238S provide, and is the damping adjustable?

It provides 3 to 4.5 inches of adjustable front lift and about 4 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the Sequoia, so there is no external compression-adjuster knob.

What does the Stage 8 system include, and how does it differ from the other ICON stages?

Stage 8 adds billet rear lower links and greater rear travel (up to 4 inches of rear lift) with billet upper control arms and V.S. 2.5 Series remote-reservoir shocks front and rear, using ICON's non-adjustable Vehicle Specific valving.
