ICON Stage 5 Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 5 Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53235
Price: 4133.7 USD
Availability: InStock

$4,133.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53235

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete bolt-on system lifts the Sequoia 3-4.5" front and 2" rear
Clears up to 35" tires for a serious off-road footprint
2.5 Series front coilovers deliver tunable ride-height and damping control
Remote-reservoir rear shocks dissipate heat for fade-free performance
Billet aluminum upper control arms with Delta Joint PRO restore alignment
Dual-rate rear coils balance comfort and load capacity
Included sway bar drop kit ensures correct geometry at lift height

The ICON Vehicle Dynamics K53235 Stage 5 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 4.5 inches of adjustable front lift and clearing up to a 35-inch tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Up to 3-4.5" of front lift and 2" of rear lift for an aggressive, level stance
Clears up to 35"x12.50" tires (minor fender trimming may be required)
Improved on- and off-road performance with better ride control and damping
Remote-reservoir rear shocks for greater heat dissipation under sustained load
Billet aluminum upper control arms restore proper alignment and add durability

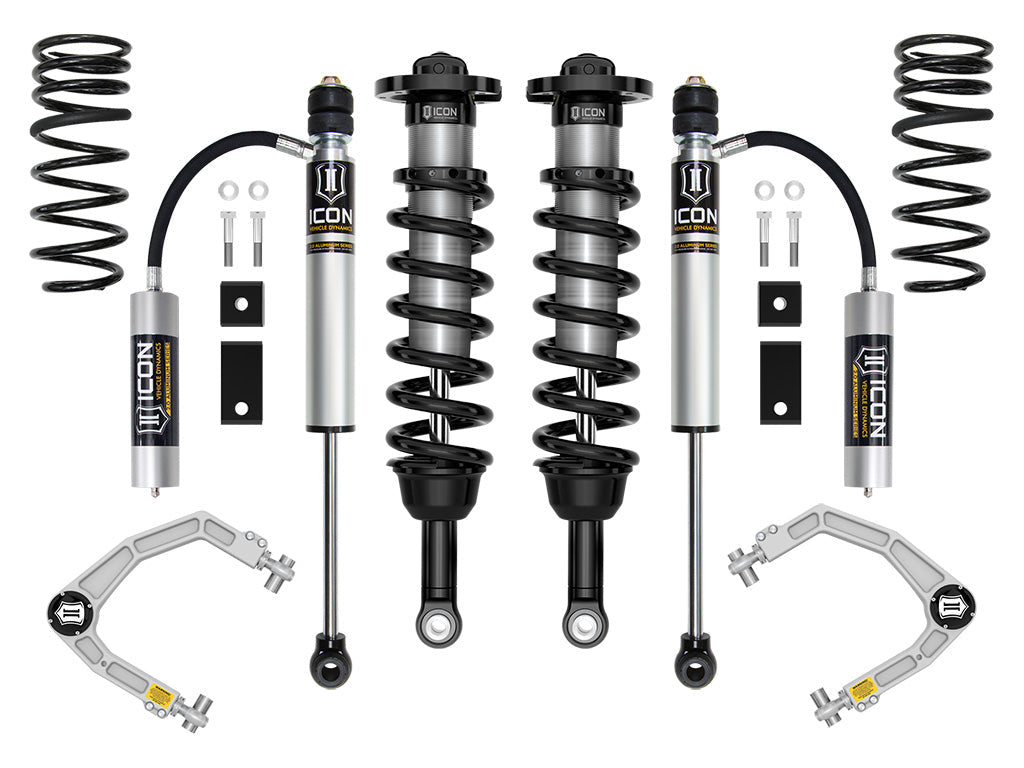

What's Included

Pair of front 2.5 Series internal-reservoir coilover shocks (ride-height adjustable)
Billet aluminum front upper control arms with Delta Joint PRO
Pair of V.S. 2.0 Aluminum Series remote-reservoir rear shocks
Dual-rate rear coil springs
Front sway bar drop kit

Specifications

Front lift: 3-4.5" (1-2.5" on TRD Off-Road / TRD Pro)
Rear lift: 2" (0" on TRD Off-Road / TRD Pro)
Front shock: 2.5 Series internal-reservoir coilover, ride-height adjustable
Rear shock: V.S. 2.0 Aluminum Series, remote reservoir
Max tire: 35" x 12.50"
Position: Front and rear (complete system)

Fitment

Engineered for the 2023-2025 Toyota Sequoia. Not compatible with Adaptive Variable Suspension (AVS) or load-leveling rear air suspension. Requires ADAS recalibration after install. For 4WD non-TRD models, ICON recommends a differential drop (part #55156) or Toyota TRD axles to prevent front axle damage.

2023-2025 Toyota Sequoia (front and rear)

FAQ

Will the ICON K53235 fit a Sequoia with factory air or adaptive suspension?

No. The K53235 is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53235 provide, and is the damping adjustable?

It provides 3 to 4.5 inches of adjustable front lift and about 2 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the Sequoia, so there is no external compression-adjuster knob.

What does the Stage 5 system include, and how does it differ from the other ICON stages?

Stage 5 uses billet aluminum upper control arms with V.S. 2.5 Series front coilovers and V.S. 2.0 Aluminum Series remote-reservoir rear shocks. Stage 4 (K53234T) is the tubular-arm version.
