ICON

ICON Stage 4 2.5 Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 4 2.5 Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53234T
Price: 3353.7 USD
Availability: InStock

$3,353.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53234T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

3-4.5 inches of front lift and 2 inches of rear lift for an aggressive leveled stance
2.5 Series VS front coilovers with internal reservoirs and manual compression adjustment
Tubular upper control arms with Delta Joint Pro for corrected geometry and added articulation
Rear 2.0 aluminum monotube shocks paired with dual-rate rear springs for a controlled ride
Front sway bar drop brackets included to maintain proper sway bar geometry at ride height
Clears up to 35-inch tires for serious off-road tire upgrades
Complete matched front-and-rear system engineered by ICON, not a mix-and-match lift

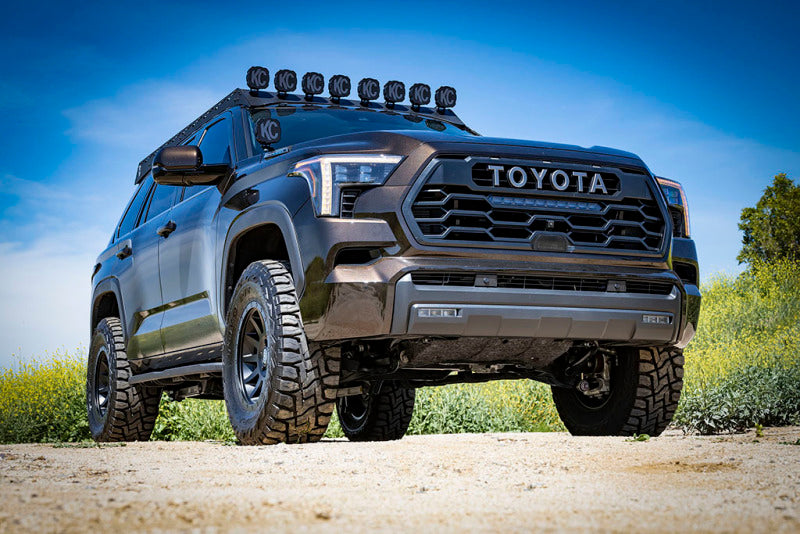

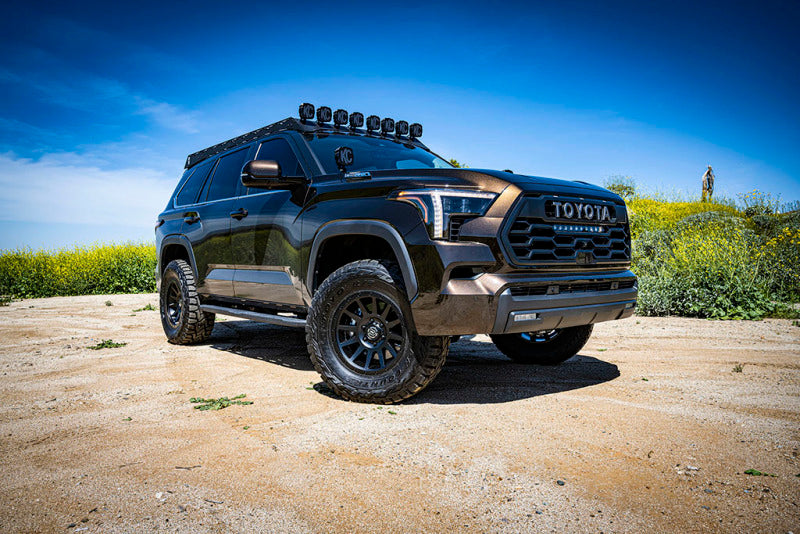

The ICON Vehicle Dynamics K53234T Stage 4 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 4.5 inches of adjustable front lift and clearing up to a 35-inch tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Delivers 3-4.5 inches of front lift and 2 inches of rear lift for an aggressive, leveled stance
V.S. 2.5 Series coilovers with internal reservoirs and ICON-tuned, non-adjustable Vehicle Specific valving
Tubular upper control arms with Delta Joint Pro restore correct geometry and add articulation at height
Clears up to 35-inch tires (minor fender trimming may be required)
Complete front-and-rear system engineered as a matched package, not a piecemeal lift

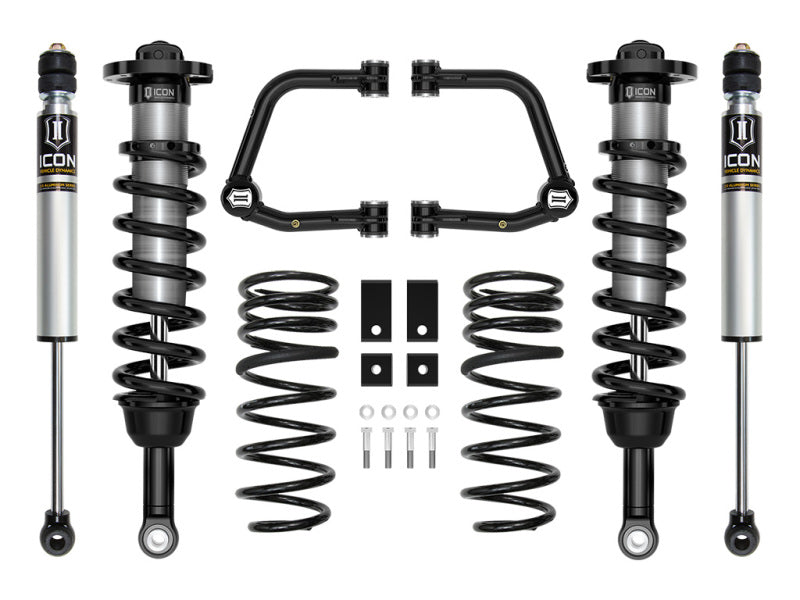

What's Included

Front 2.5 Series VS internal-reservoir coilover kit (pair)
Tubular front upper control arms with Delta Joint Pro (pair)
Front sway bar drop brackets

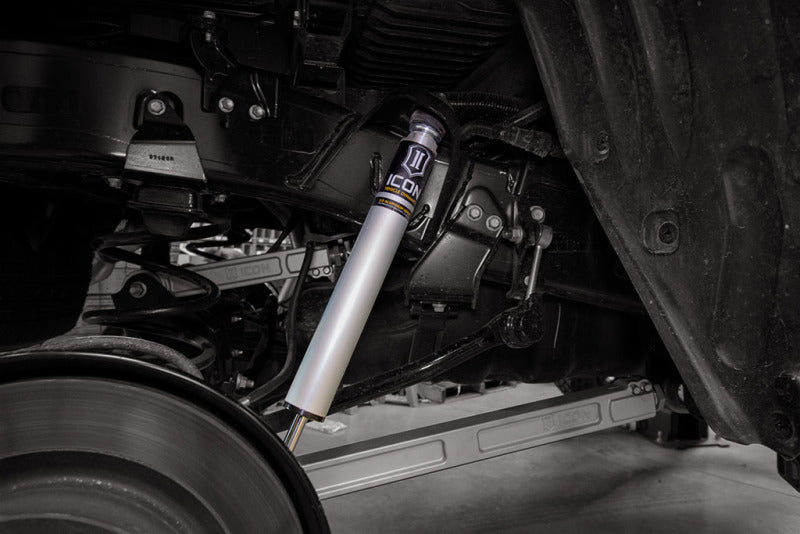

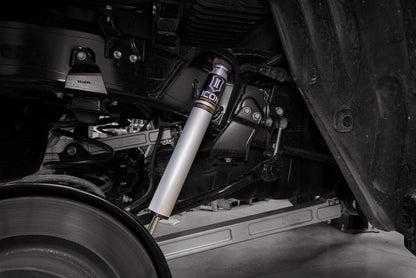

Rear 2.0 aluminum monotube shocks (pair)
Dual-rate rear coil springs (pair)

Specifications

Front lift: 3-4.5 in (1-2.5 in on TRD Off-Road / TRD Pro models)
Rear lift: 2 in (stock height on TRD Off-Road / TRD Pro models)
Front shock: V.S. 2.5 Series, internal reservoir, ride-height adjustable (non-adjustable damping)
Rear shock: 2.0 aluminum monotube
Maximum tire size: 35 x 12.50 in
Upper control arms: tubular, included

Fitment

Engineered specifically for the 2023-2025 Toyota Sequoia. Models equipped with factory TRD skid plates also require ICON part 55164 (sold separately). TRD Off-Road and TRD Pro models achieve a reduced front lift range and remain at stock rear height.

2023-2025 Toyota Sequoia (front and rear)

FAQ

Will the ICON K53234T fit a Sequoia with factory air or adaptive suspension?

No. The K53234T is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53234T provide, and is the damping adjustable?

It provides 3 to 4.5 inches of adjustable front lift and about 2 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the Sequoia, so there is no external compression-adjuster knob.

What does the Stage 4 system include, and how does it differ from the other ICON stages?

Stage 4 adds ICON tubular upper control arms with the Delta Joint PRO over Stage 3, keeping V.S. 2.5 Series front coilovers and 2.0 Series rear shocks. Stage 5 (K53235) is the billet-arm version.
