ICON Stage 3 2.5 Suspension System for 2023-2025 Toyota Sequoia

Name: ICON Stage 3 2.5 Suspension System for 2023-2025 Toyota Sequoia
Brand: ICON
SKU: K53233
Price: 2473.75 USD
Availability: InStock

$2,473.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53233

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 3 to 3.75 inches of adjustable front lift for a leveled, aggressive stance
Rebuildable 2.5 Series front coilovers with internal reservoirs resist fade on long off-road runs
Matched 2.0 Aluminum Series rear shocks and dual-rate springs balance ride front to rear
Clears up to 35-inch tires for a more capable, commanding look
Sway bar drop kit maintains proper geometry at the new ride height
Works with stock upper control arms through the full lift range
Complete bolt-on front and rear system for the 2023-2025 Sequoia

The ICON Vehicle Dynamics K53233 Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2023-2025 Toyota Sequoia (third generation), providing 3 to 3.75 inches of adjustable front lift and clearing up to a 35-inch tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving and retains the factory upper control arms.

Key Benefits

Provides 3 to 3.75 inches of adjustable front lift over stock for an aggressive, leveled stance
Clears larger, more aggressive wheel and tire packages up to 35 inches
Rebuildable and re-tunable 2.5 Series front coilovers with internal reservoirs for fade-free damping
Balanced front-to-rear control with matched rear shocks and dual-rate springs
Improved on-road comfort and off-road capability in a single bolt-on package

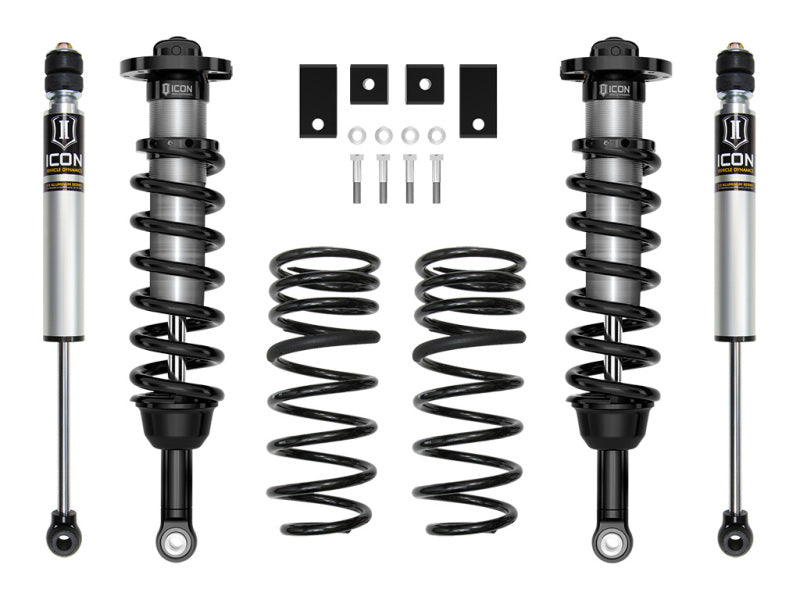

What's Included

Pair of 2.5 Series front coilovers with internal reservoirs

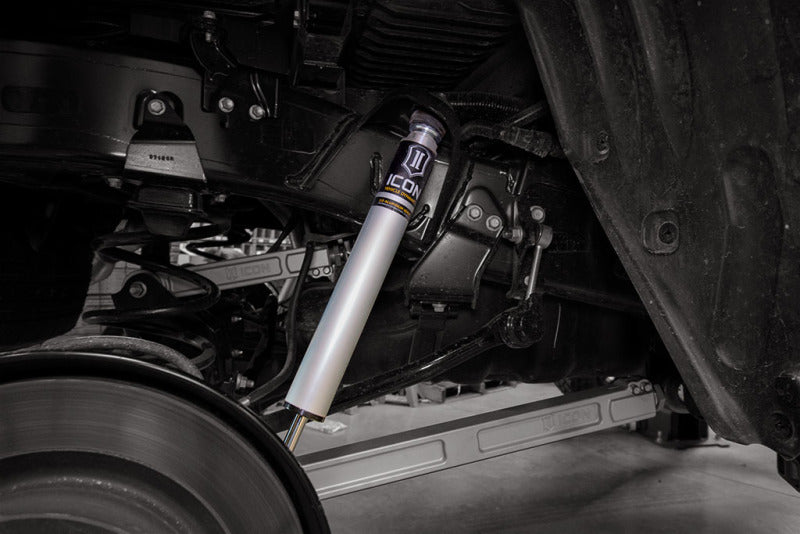

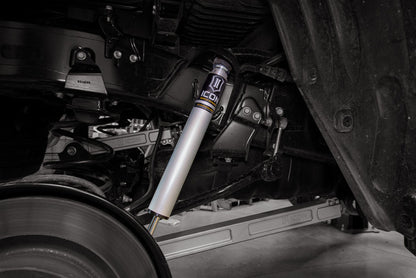

Pair of 2.0 Aluminum Series rear shocks
Dual-rate rear coil springs
Front sway bar drop bracket kit
Necessary mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53233
Front lift: 3 to 3.75 inches (adjustable)
Front coilover: V.S. 2.5 Series, internal reservoir, standard valving
Rear shock: V.S. 2.0 Aluminum Series
Position: Front and rear
Fully rebuildable and re-tunable

Fitment

Direct fit for the 2023-2025 third-generation Toyota Sequoia (non-TRD application). This Stage 3 kit retains the factory upper control arms; ICON upper control arms are available separately for taller builds.

2023-2025 Toyota Sequoia

FAQ

Will the ICON K53233 fit a Sequoia with factory air or adaptive suspension?

No. The K53233 is engineered for the 2023-2025 third-generation Toyota Sequoia and is not compatible with models equipped with Adaptive Variable Suspension (AVS) or factory load-leveling rear air suspension. On 4WD non-TRD models ICON specifies its differential drop kit (part #55156) to protect the front CV axles, and ADAS recalibration is required after installation.

How much lift does the ICON K53233 provide, and is the damping adjustable?

It provides 3 to 3.75 inches of adjustable front lift and about 2 inches of rear lift, with a reduced range on TRD Off-Road and TRD Pro models, and clears up to a 35-inch tire. The shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the Sequoia, so there is no external compression-adjuster knob.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 is the entry complete system: V.S. 2.5 Series internal-reservoir front coilovers, V.S. 2.0 Aluminum Series rear shocks and dual-rate rear springs. It retains the factory upper control arms; higher stages add ICON upper control arms and larger rear shocks.
