ICON Stage 2 2.5 EXP Suspension System for 2022-2025 Toyota Tundra

Name: ICON Stage 2 2.5 EXP Suspension System for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53192
Price: 2879.7 USD
Availability: InStock

$2,879.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53192

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3" of adjustable front lift to set your exact stance and clear up to 35" tires
Billet aluminum upper control arms correct camber and caster at any ride height
ICON Delta Joint PRO allows full suspension travel without bind and is fully rebuildable
2.5 EXP front coilovers with internal reservoir resist fade on rough terrain
Rear 2.0 aluminum monotube shocks keep the ride balanced front to rear
Front sway bar drop kit reduces bind in the OE sway bar links
Bolt-on installation with no drilling, cutting, or welding

The ICON K53192 Stage 2 Suspension System is a complete bolt-on kit for the 2022-2025 Toyota Tundra and 2023-2025 Sequoia, delivering 0-3 inches of adjustable front lift with 2.5 EXP Series front coilovers, billet aluminum upper control arms with Delta Joint PRO, and 2.0 Aluminum Series rear shocks, clearing up to 35-inch tires.

Key Benefits

0-3" of adjustable front lift to dial in your exact stance and clear up to 35" tires
Billet aluminum upper control arms restore correct camber/caster and add clearance at lifted ride heights
ICON Delta Joint PRO replaces the OE ball joint with a serviceable, rebuildable joint that allows full bump and droop travel without bind
2.5 EXP front coilovers with internal reservoir deliver fade-free damping on the trail
Rear 2.0 aluminum monotube shocks balance the tune front to rear
True bolt-on installation - no drilling, cutting, or welding required

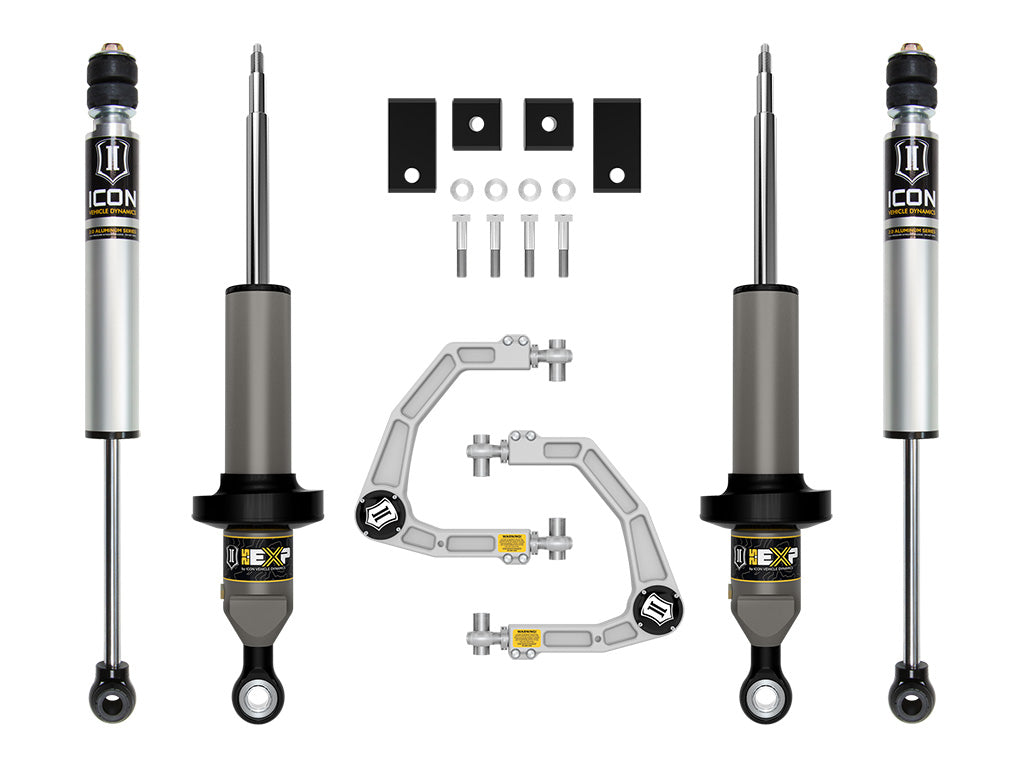

What's Included

2x ICON 2.5 EXP series front coilover shocks (with springs, internal reservoir)
ICON billet aluminum upper control arm kit with Delta Joint PRO
Front sway bar drop kit
2x ICON 2.0 aluminum series rear shocks

Specifications

Front lift: 0-3" adjustable over stock
Rear lift: up to 1.5" (up to 1" on TRD-suspension models)
Front shock: 2.5" diameter EXP series coilover, internal reservoir, rebuildable
Rear shock: 2.0" aluminum series monotube
Max tire size: 35" x 12.50" (minor fender trimming may be required)
Upper control arms: billet aluminum with Delta Joint PRO

Fitment

Direct-fit for the 3rd-generation Toyota Tundra and Sequoia. NOT compatible with trucks equipped with load-leveling Rear Height Control air suspension, TRD Pro, or Adaptive Variable Suspension (AVS). 4WD models without TRD Off-Road require a differential drop kit or Toyota TRD axles. ADAS recalibration is recommended after installation.

2022-2025 Toyota Tundra (front)
2023-2025 Toyota Sequoia (front)

FAQ

What does the ICON K53192 not fit?

It does not fit trucks with load-leveling rear air suspension, Adaptive Variable Suspension (AVS), or TRD Pro. On 4WD models without TRD Off-Road a differential drop kit (or Toyota TRD axles) is required. ADAS recalibration is recommended after installation.

Does the ICON K53192 include upper control arms?

Yes. It includes billet aluminum upper control arms with the rebuildable Delta Joint PRO, which allows full bump and droop travel without bind.

How much lift does the ICON K53192 provide?

0 to 3 inches of adjustable front lift and up to 1.5 inches of rear lift (up to 1 inch on TRD-suspension models), clearing tires up to 35x12.50.
