ICON Stage 1 2.5 EXP Suspension System 22-25 Tundra Sequoia

Name: ICON Stage 1 2.5 EXP Suspension System 22-25 Tundra Sequoia
Brand: ICON
SKU: K53191
Price: 1479.75 USD
Availability: InStock

$1,479.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53191

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Up to 2.25 inches of front lift to level the factory rake

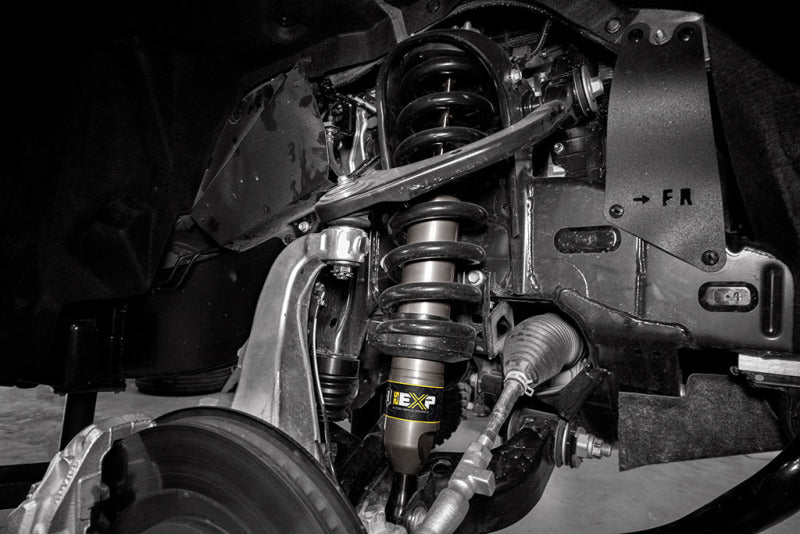

Rebuildable 2.5-inch EXP series front coilovers for tunable ride quality
Reuses factory coil springs for a cost-effective performance upgrade
Clears up to 35-inch tires for a more aggressive stance
Includes a sway bar drop kit to preserve correct geometry at lift height

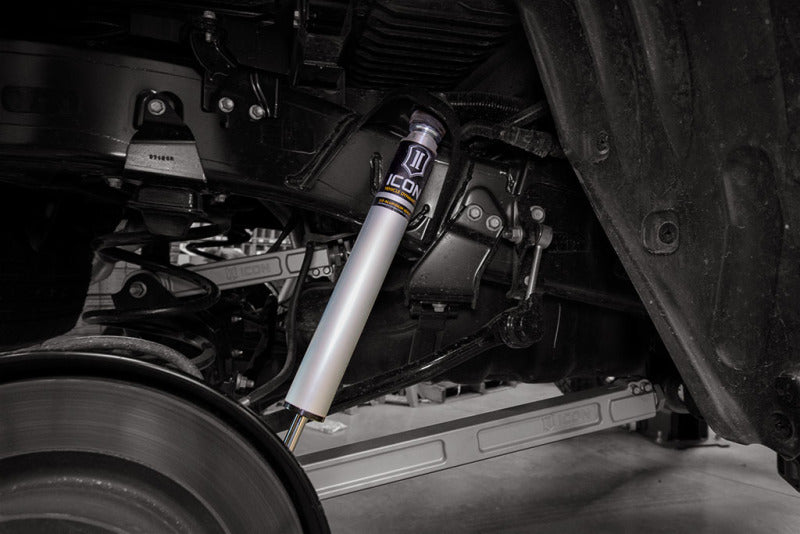

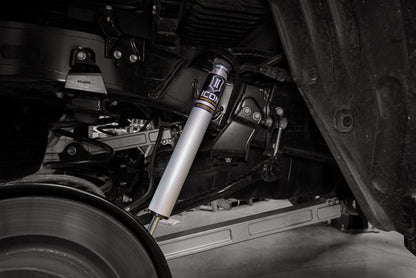

Rear 2.0 VS shocks valved to match the new front ride height
Bolt-on install with no aftermarket upper control arms required

The ICON K53191 Stage 1 Suspension System is a bolt-on front leveling kit for the 2022-2025 Toyota Tundra and 2023-2025 Sequoia, delivering up to 2.25 inches of front lift with rebuildable 2.5 EXP Series front coilovers (reusing the factory coil springs) and 2.0 VS Series rear shocks, clearing up to 35-inch tires.

Key Benefits

Up to 2.25 inches of front-end lift for a level, aggressive stance
Rebuildable 2.5-inch EXP series front coilovers for premium on- and off-road damping
Reuses the factory coil springs to keep cost down while upgrading performance
Clears up to 35-inch tires
Direct bolt-on install with no aftermarket upper control arms required

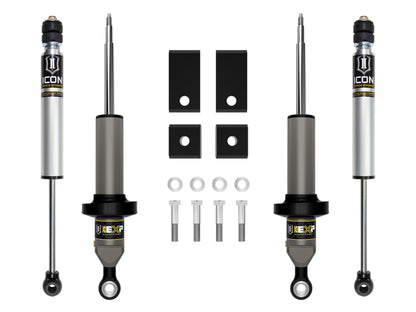

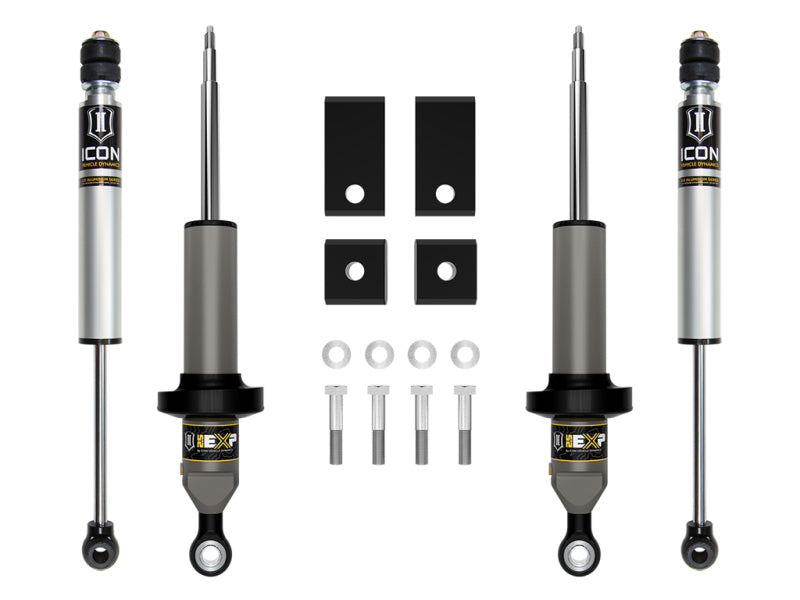

What's Included

Front 2.5 EXP series coilovers (pair) with internal reservoir
Sway bar drop kit
Rear 2.0 VS series shocks (pair)
Mounting hardware

Specifications

Stage: 1
Front lift: 0 to 2.25 inches
Front shock: 2.5-inch EXP series, internal reservoir, rebuildable
Rear shock: 2.0 VS series
Valve adjustment: none (EXP series, no CDCV/CDEV)
Max tire size: up to 35 inches
Position: front (with matched rear shocks)

Fitment

Confirmed for the following applications. Not compatible with load-leveling rear air suspension, Adaptive Variable Suspension (AVS), TRD Pro, or hybrid models. ADAS recalibration recommended after installation.

2022-2025 Toyota Tundra
2023-2025 Toyota Sequoia

FAQ

What does the ICON K53191 not fit?

It does not fit trucks with load-leveling rear air suspension, Adaptive Variable Suspension (AVS), TRD Pro, or hybrid models. ADAS recalibration is recommended after installation.

Does the ICON K53191 reuse the factory springs?

Yes. The 2.5 EXP front coilovers reuse the factory coil springs to lower cost while adding up to 2.25 inches of lift and clearing up to 35-inch tires.

What is the difference between K53191 Stage 1 and K53192 Stage 2?

Stage 1 (K53191) is coilovers plus rear shocks and retains the factory upper control arms. Stage 2 (K53192) adds billet aluminum upper control arms with Delta Joint PRO and offers 0-3 inches of front lift.
