ICON 3.0 VS RR CDCV Front Coilovers 22-25 Tundra/Sequoia

Name: ICON 3.0 VS RR CDCV Front Coilovers 22-25 Tundra/Sequoia
Brand: ICON
SKU: 58775C
Price: 3530.62 USD
Availability: InStock

$3,530.62 USD

Sale Sold out

Final Sale — no returns or exchanges

Shipping calculated at checkout.

SKU:58775C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Flagship 3.0-inch remote-reservoir shock body resists fade during towing and desert running
CDCV single-knob adjuster with 10 manual compression settings
Vehicle-specific front lift tuned per trim and powertrain
Built for trucks carrying bumpers and winches
Requires aftermarket upper control arms
Fits 2022-2025 Tundra and 2023-2025 Sequoia

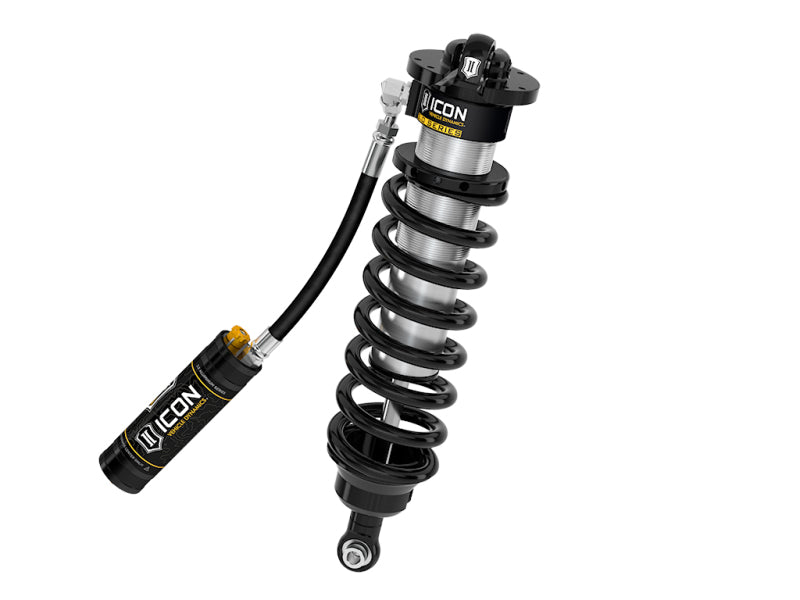

The ICON Vehicle Dynamics 58775C is a 3.0 Series VS remote-reservoir CDCV front coilover kit for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia, built from ICON's largest shock body for maximum control on the 3rd-generation platform.

Key Benefits

Large 3.0-inch shock body with more piston area and oil volume than 2.5 shocks for superior damping and fade resistance
CDCV single-knob adjuster with 10 external compression settings
Vehicle-specific front lift tuned to trim and powertrain
Aluminum remote reservoirs add cooling for desert running and towing
Built for trucks carrying added front-end weight such as bumpers and winches

What's Included

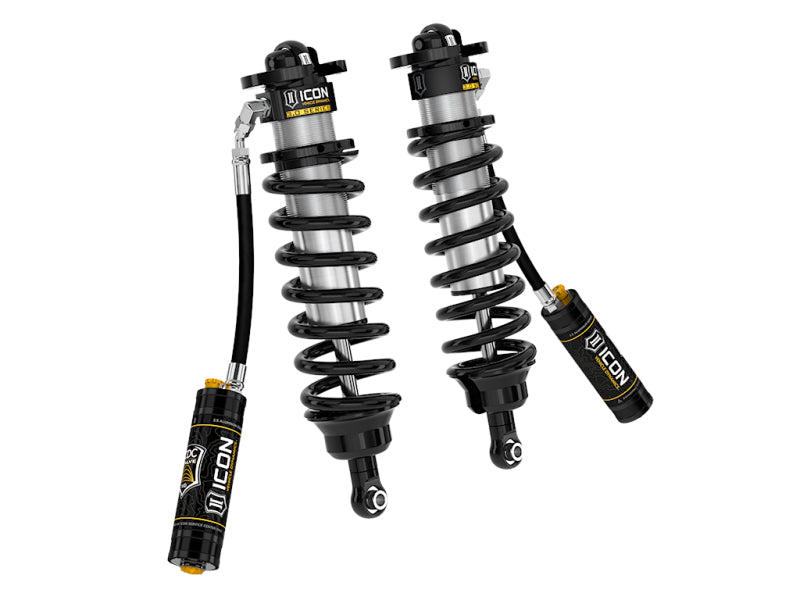

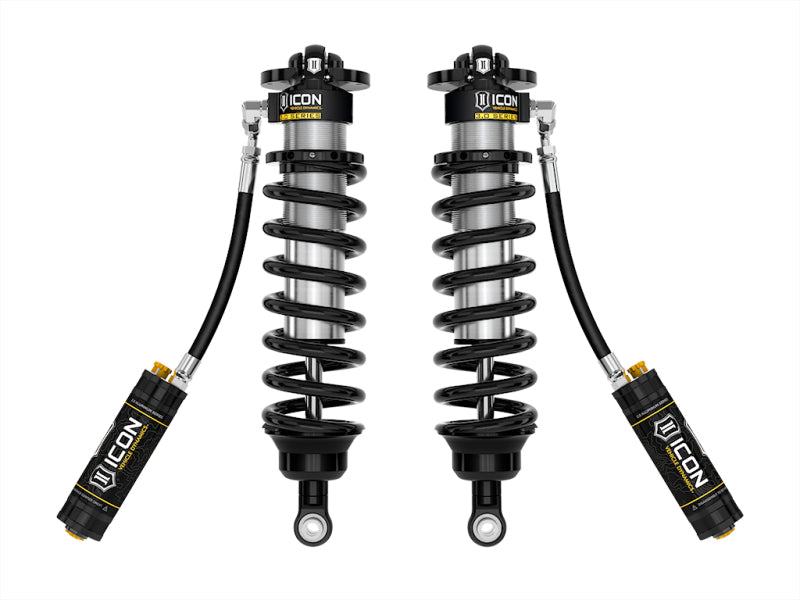

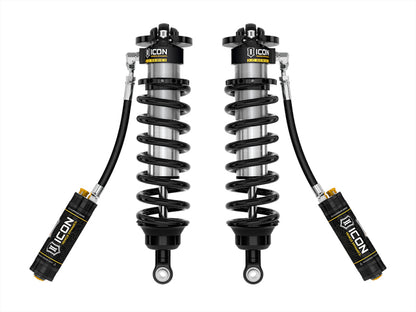

Pair of ICON 3.0 Series VS remote-reservoir CDCV front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Fitment

Fits the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. This 3.0 Series system is designed to run with aftermarket upper control arms. Does not fit the 2007-2021 Tundra or 2008-2022 Sequoia. Requires aftermarket upper control arms. For the smaller 2.5-inch body with CDCV, choose the 58770C.

FAQ

Do I need upper control arms for the 58775C?

Yes. ICON specifies this 3.0 Series coilover be used with aftermarket upper control arms.

How is the 58775C different from the 58770C?

The 58775C uses the larger 3.0-inch shock body with more oil volume and requires aftermarket UCAs; the 58770C uses the 2.5-inch body.

Does it fit both the Tundra and Sequoia?

Yes, it fits the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2023–2025	Toyota	Sequoia	—	Front
2022–2025	Toyota	Tundra	—	Front

Specifications

material: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
side: pair
valve: CDCV
series: ICON 3.0 V.S. Remote Reservoir
valving: ICON CDCV (Compression Damping Control Valve) single-knob adjuster with 10 external compression settings
excludes: TRD Pro, AVS, rear air load-leveling suspension
lift range: Trim/powertrain-specific front lift
mounting position: Front (sold as a pair)
valve description: manual externally adjustable compression damping control valve
upper control arms: Aftermarket UCAs required
rear shocks included: no, sold separately
tundra lift range: 1.25-3.25 in
sequoia lift range: 3-4.25 in
wheel travel increase: up to 40% over stock
sway bar drop required: #55154 above 2.25 in lift
requires aftermarket uca: yes, above 2.25 in lift
