ICON 2.5 VS CDCV Front Coilover Kit for 2022-2025 Tundra/Sequoia

Name: ICON 2.5 VS CDCV Front Coilover Kit for 2022-2025 Tundra/Sequoia
Brand: ICON
SKU: 58770C
Price: 2345.88 USD
Availability: InStock

$2,345.88 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58770C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CDCV single-knob adjuster with 10 hand-set compression settings
2.5-inch remote-reservoir shocks for controlled, fade-free damping
Trim- and powertrain-specific front lift up to 3.5 in (Tundra) / 4.5 in (Sequoia)
Step up to CDXS 58770X for dual-speed adjustment
ICON UCA recommended at higher lift on 4WD models
Fits 2022-2025 Tundra and 2023-2025 Sequoia

The ICON Vehicle Dynamics 58770C is a 2.5 Series VS remote-reservoir CDCV front coilover kit for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia, adding a 10-setting external compression adjuster to the vehicle-specific platform.

Key Benefits

CDCV single-knob adjuster with 10 external compression settings, soft to firm
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered vehicle-specific springs and valving for the 3rd-generation platform
Adjustable ride height to clear larger wheel and tire packages
Bolt-on install in the factory front shock locations

What's Included

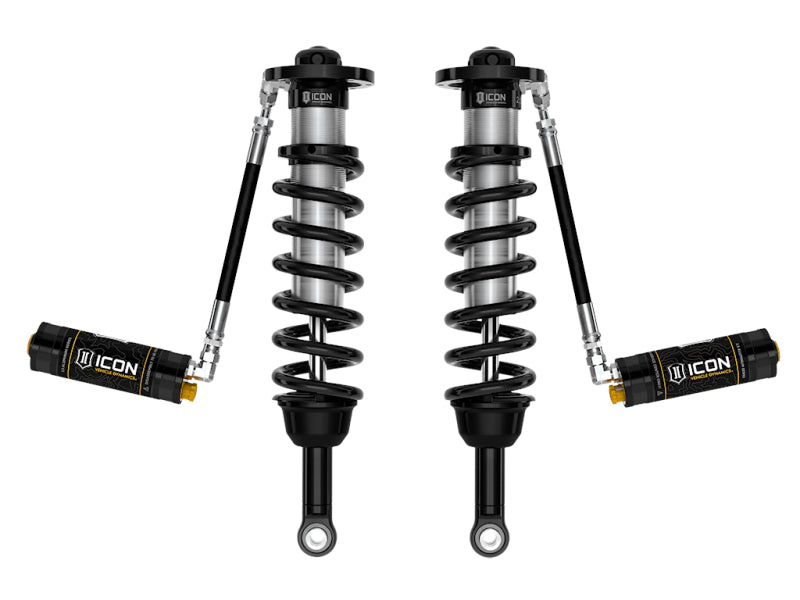

Pair of ICON 2.5 Series VS remote-reservoir CDCV front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled
Reservoir mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Series: 2.5 Series VS remote reservoir
Valving: ICON CDCV (Compression Damping Control Valve) single-knob adjuster with 10 external compression settings
Lift range: Trim/powertrain-specific, up to 3.5 inches (Tundra) or 4.5 inches (Sequoia)
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: ICON UCA recommended above 2.25 in (Tundra) / 3.75 in (Sequoia) on 4WD

Fitment

Front lift is trim- and powertrain-specific: 1.25-3.5 inches on the i-FORCE gas Tundra, 0.75-3 inches on the i-FORCE MAX hybrid Tundra, 0-1.75 inches on the Tundra TRD Pro, 3-4.5 inches on the standard Sequoia, and 1-2.5 inches on the Sequoia TRD Off-Road/Pro. Fits the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. ICON recommends an upper control arm above 2.25 inches of lift on the Tundra and 3.75 inches on the Sequoia for 4WD models. Does not fit the 2007-2021 Tundra or 2008-2022 Sequoia. This is the manual CDCV version; the 58770 has fixed valving, the 58770X adds dual-speed CDXS adjustment, and the 58775C uses the 3.0-inch body.

FAQ

What does the CDCV adjuster do?

It is a single knob with 10 detented settings that lets you tune compression damping by hand from soft to firm.

How much lift does it provide?

Lift is trim- and powertrain-specific: about 1.25-3.5 inches on the gas Tundra, 0.75-3 inches on the i-FORCE MAX, and 3-4.5 inches on the standard Sequoia.

How is the 58770C different from the 58770X?

The 58770C has a single compression knob (CDCV); the 58770X (CDXS) adds independent low-speed and high-speed compression knobs.

Do I need upper control arms?

ICON recommends an aftermarket UCA above 2.25 inches of lift on the Tundra and 3.75 inches on the Sequoia for 4WD trucks.
