ICON 2.5 VS RR Front Coilover Kit for 2022-2025 Tundra/Sequoia

Name: ICON 2.5 VS RR Front Coilover Kit for 2022-2025 Tundra/Sequoia
Brand: ICON
SKU: 58770
Price: 2035.23 USD
Availability: InStock

$2,035.23 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58770

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Vehicle-specific front lift tuned per trim and powertrain (up to 3.5 in Tundra, 4.5 in Sequoia)
2.5-inch remote-reservoir shocks for controlled, fade-free damping
ICON-engineered springs and valving for the 3rd-gen platform
Fixed valving; step up to CDCV 58770C or CDXS 58770X for adjustability
ICON UCA recommended at higher lift on 4WD models
Fits 2022-2025 Tundra and 2023-2025 Sequoia

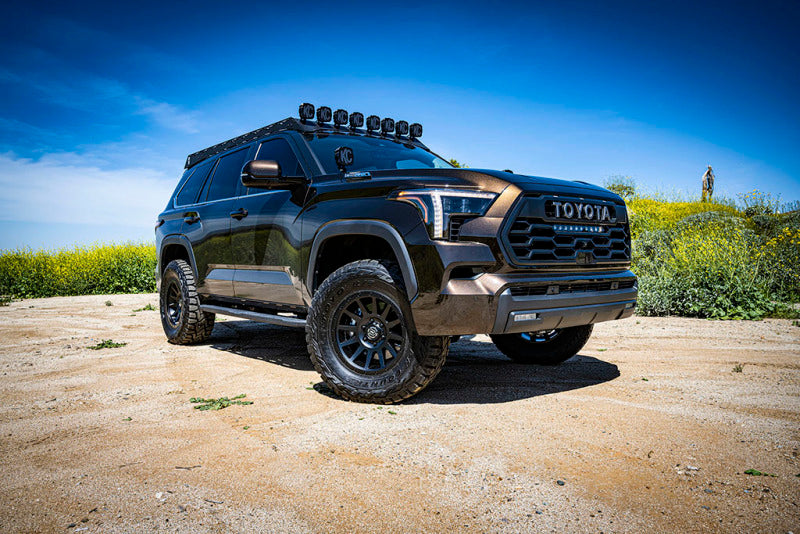

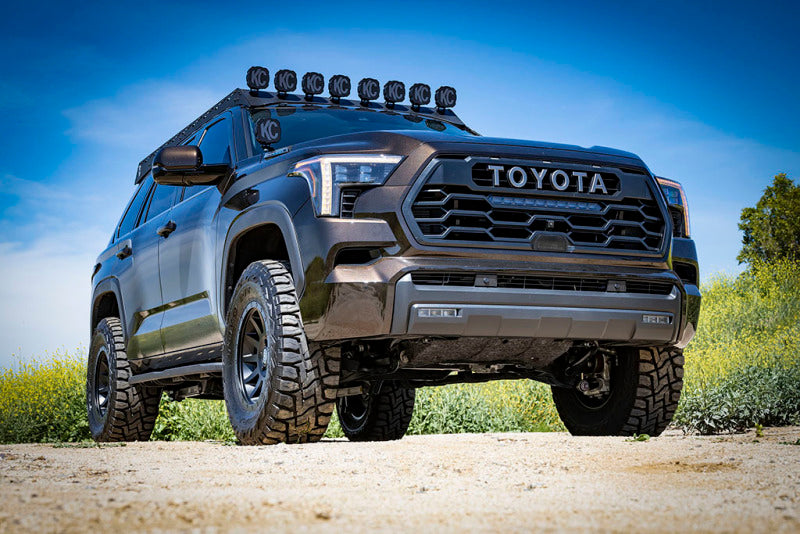

The ICON Vehicle Dynamics 58770 is a 2.5 Series VS remote-reservoir front coilover kit for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia, providing vehicle-specific front lift tuned to each trim and powertrain.

Key Benefits

2.5-inch remote-reservoir shocks with increased piston area for strong, controlled damping
ICON-engineered vehicle-specific springs and valving tuned to the 3rd-generation platform
Adjustable ride height to clear larger wheel and tire packages
Remote reservoirs add oil capacity and run cooler under hard use
Bolt-on install in the factory front shock locations

What's Included

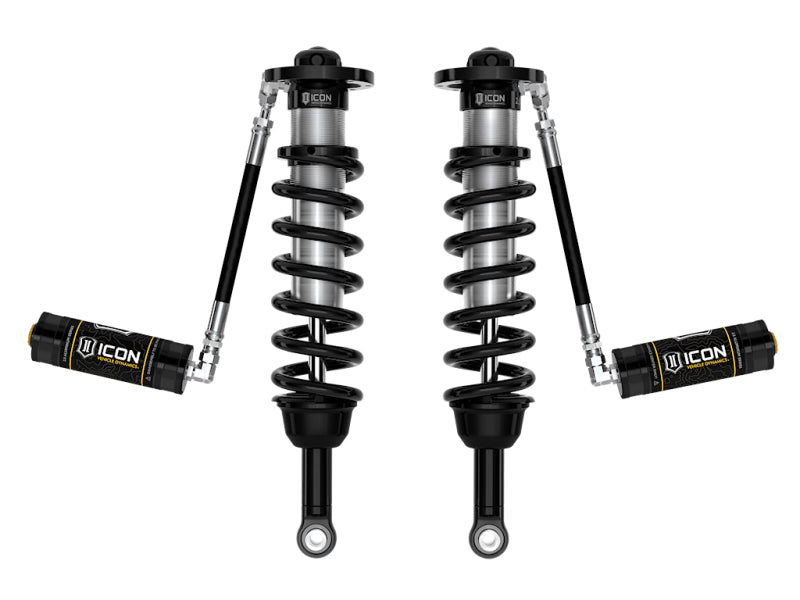

Pair of ICON 2.5 Series VS remote-reservoir front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled
Reservoir mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Series: 2.5 Series VS remote reservoir
Valving: Vehicle-specific non-adjustable valving (no external knob)
Lift range: Trim/powertrain-specific, up to 3.5 inches (Tundra) or 4.5 inches (Sequoia)
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: ICON UCA recommended above 2.25 in (Tundra) / 3.75 in (Sequoia) on 4WD

Fitment

Front lift is trim- and powertrain-specific: 1.25-3.5 inches on the i-FORCE gas Tundra, 0.75-3 inches on the i-FORCE MAX hybrid Tundra, 0-1.75 inches on the Tundra TRD Pro, 3-4.5 inches on the standard Sequoia, and 1-2.5 inches on the Sequoia TRD Off-Road/Pro. Fits the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. ICON recommends an upper control arm above 2.25 inches of lift on the Tundra and 3.75 inches on the Sequoia for 4WD models. Does not fit the 2007-2021 Tundra or 2008-2022 Sequoia (2nd generation, use the 58750/58755 series). This base kit has non-adjustable valving; for a manual compression knob choose the CDCV 58770C, for dual-speed adjustment the CDXS 58770X, or for the 3.0-inch body the 58775C.

FAQ

How much lift does the 58770 provide?

Lift depends on the model and engine: roughly 1.25-3.5 inches on the gas Tundra, 0.75-3 inches on the i-FORCE MAX hybrid, and 3-4.5 inches on the standard Sequoia.

Does it fit both the Tundra and Sequoia?

Yes, it fits the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia.

Is this coilover adjustable?

The 58770 uses fixed vehicle-specific valving. For hand-adjustable compression, choose the CDCV 58770C; for dual-speed adjustment, the CDXS 58770X.

Do I need upper control arms?

ICON recommends an aftermarket UCA above 2.25 inches of lift on the Tundra and 3.75 inches on the Sequoia for 4WD trucks.
