ICON 2.5 VS IR Front Coilover Kit for 2022-2025 Toyota Tundra

Name: ICON 2.5 VS IR Front Coilover Kit for 2022-2025 Toyota Tundra
Brand: ICON
SKU: 58670
Price: 1713.87 USD
Availability: InStock

$1,713.87 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58670

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides up to 3.5 inches of front lift (varies by model and trim) with on-vehicle ride-height adjustment to clear larger tires
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

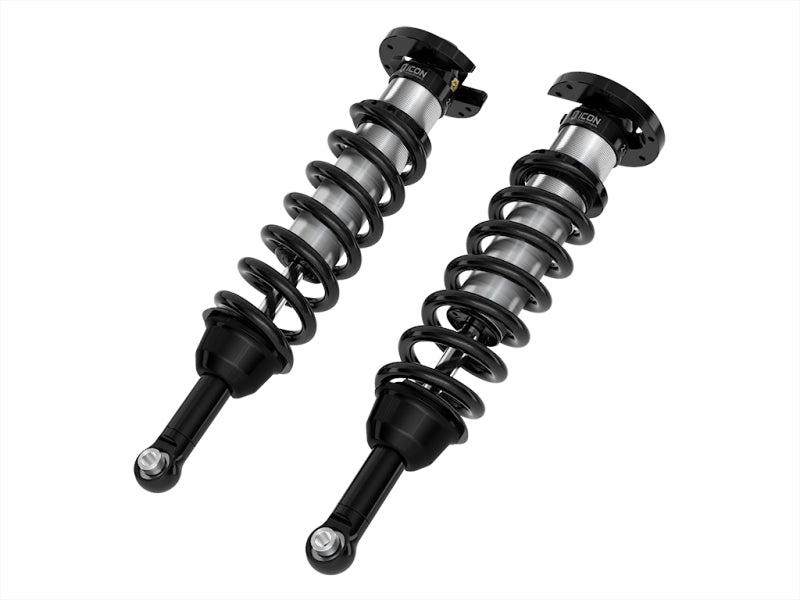

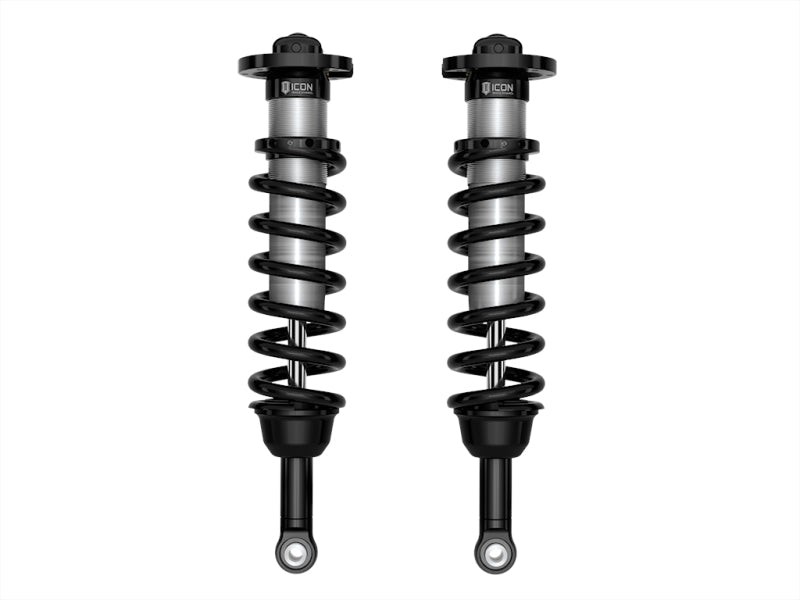

The ICON Vehicle Dynamics V.S. 2.5 Series internal-reservoir front coilover kit (MPN 58670) is a bolt-in front suspension upgrade for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia, providing up to 3.5 inches of front lift (varies by model and trim). It replaces the factory front struts with rebuildable, 2.5-inch internal reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides up to 3.5 inches of front lift (varies by model and trim) with on-vehicle ride-height adjustment to clear larger tires
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

Specifications

Brand: ICON Vehicle Dynamics
Part number (MPN): 58670
Series: ICON V.S. 2.5 Series
Reservoir: Internal Reservoir
Front lift range: 1.25-3.5 inches on the gas i-Force Tundra, 0.75-3 inches on the i-Force MAX hybrid, 0-1.75 inches on the Tundra TRD Pro, 3-4.5 inches on standard Sequoia models, and 1-2.5 inches on the Sequoia TRD Off-Road/Pro
Damping: Velocity-sensitive (V.S.) non-adjustable valving
Position: Front (sold as a pair)
Travel: Standard travel
Construction: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and 7/8-inch shaft

What's Included

Sold as a front pair of preassembled coilovers (shock and coil spring per side).

Fitment

This kit is a direct front-suspension fit for 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. ICON does not recommend lifting above 2.25 inches (Tundra) or 3.75 inches (Sequoia) without an ICON upper control arm. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58670 provide?

It provides 1.25-3.5 inches on the gas i-Force Tundra, 0.75-3 inches on the i-Force MAX hybrid, 0-1.75 inches on the Tundra TRD Pro, 3-4.5 inches on standard Sequoia models, and 1-2.5 inches on the Sequoia TRD Off-Road/Pro, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

ICON does not recommend lifting above 2.25 inches (Tundra) or 3.75 inches (Sequoia) without an ICON upper control arm.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.
