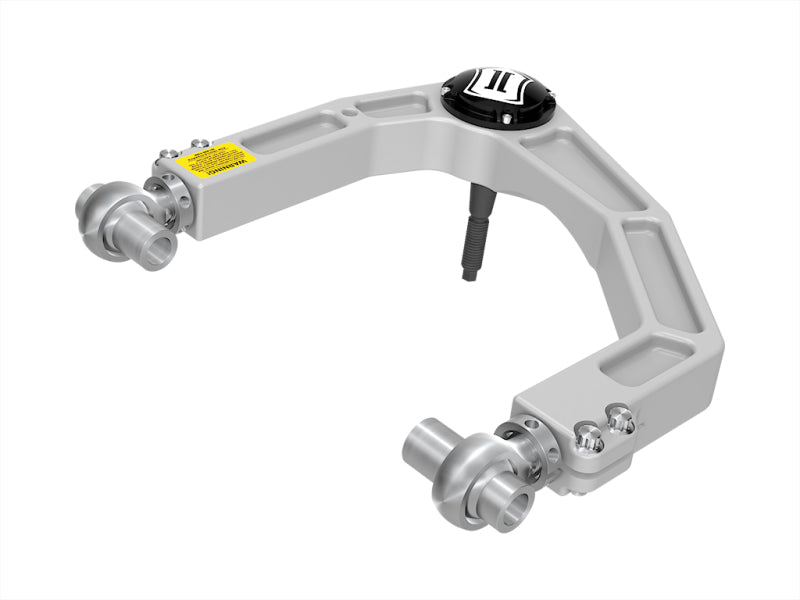

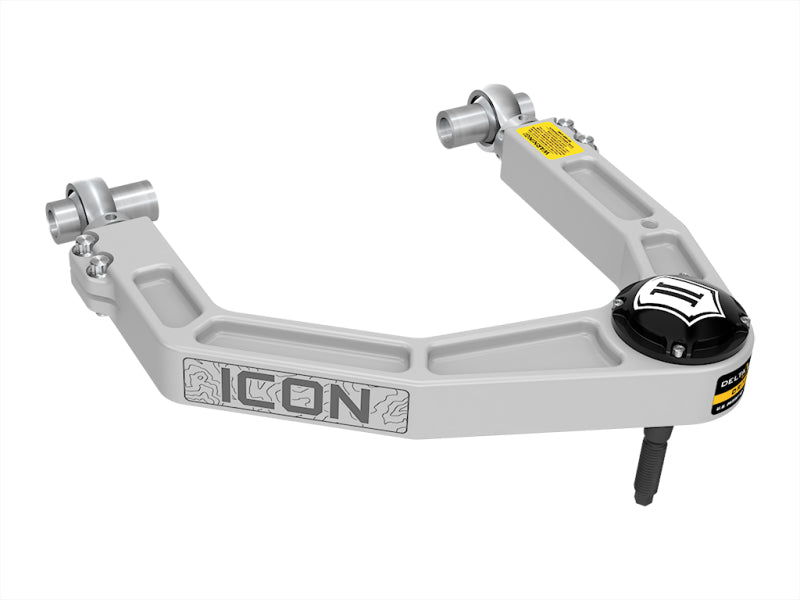

ICON Billet Delta Joint PRO Upper Control Arms for 22-25 Toyota Tundra

Name: ICON Billet Delta Joint PRO Upper Control Arms for 22-25 Toyota Tundra
Brand: ICON
SKU: 58561DJ
Price: 1439.95 USD
Availability: InStock

$1,439.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58561DJ

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CNC-machined 6061 billet aluminum arms are light and corrosion-resistant
ICON patented Delta Joint high-angle sealed ball joint gives uniball-style articulation with sealed, rebuildable ball-joint durability
Threaded adjuster sleeves allow on-vehicle caster and camber tuning
Corrects front-end geometry and adds droop travel over the factory rubber-bushed arms
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points

The ICON Vehicle Dynamics 58561DJ is a billet aluminum Delta Joint PRO upper control arm kit for the 2023-2025 Toyota Sequoia and 2022-2025 Toyota Tundra.

It replaces the factory upper control arms to restore correct front-end geometry and add tire and travel clearance when running an ICON front coilover lift.

Key Features

CNC-machined 6061 billet aluminum arms are light and corrosion-resistant
Uses the upgraded, fully rebuildable Delta Joint PRO developed for ICON's newer heavy-duty Toyota platforms
ICON patented Delta Joint high-angle sealed ball joint gives uniball-style articulation with sealed, rebuildable ball-joint durability
Threaded adjuster sleeves allow on-vehicle caster and camber tuning
Corrects front-end geometry and adds droop travel over the factory rubber-bushed arms
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points
Backed by ICON's limited lifetime warranty on the fabricated weldment; the Delta Joint carries a 5-year limited warranty when run in a complete ICON suspension system.

What's Included

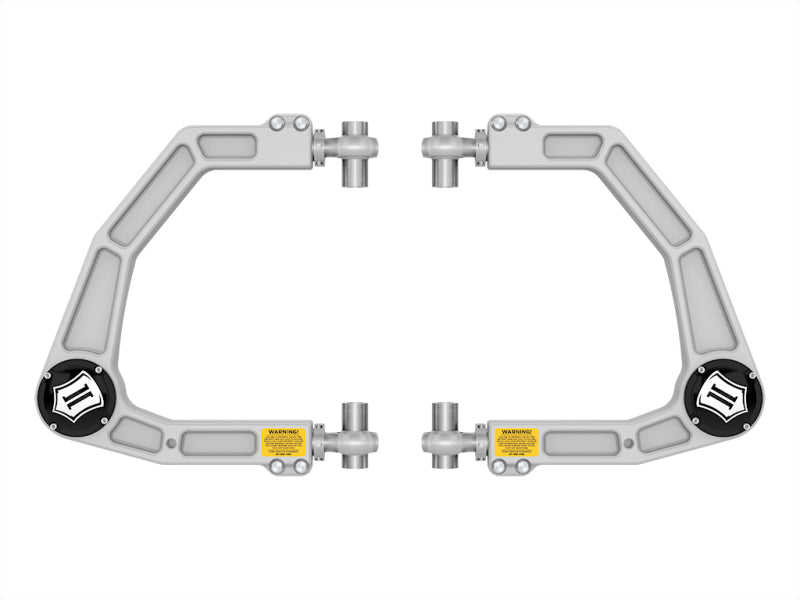

Pair of billet aluminum upper control arms (left and right) with integrated Delta Joint PRO assemblies
Serviceable bushings/adjuster hardware
Installation hardware and instructions

Specifications

Position: Front (sold as a pair, left and right)
Joint: ICON Delta Joint PRO (patented high-angle sealed ball joint)
Construction: CNC-machined 6061 billet aluminum, matte anodized
Adjustable: On-vehicle caster and camber
Brand: ICON Vehicle Dynamics
Part number: 58561DJ

Fitment

Direct-fit for the following applications, verified for ICON part number 58561DJ: 2023-2025 Toyota Sequoia, 2022-2025 Toyota Tundra. CNC-machined 6061 billet version with on-vehicle caster/camber adjustment; the tubular version is ICON 58461DJ. Fits the 2022-2025 Tundra and 2023-2025 Sequoia; the 2007-2021 Tundra uses ICON 58560DJ. This is the billet arm — tubular is 58461DJ.

2023-2025 Toyota Sequoia
2022-2025 Toyota Tundra

FAQ

What is the Delta Joint PRO?

ICON's upgraded, fully rebuildable high-angle sealed ball joint for its newer heavy-duty Toyota platforms.

What is the difference between the billet and tubular ICON UCAs?

The billet arm is CNC-machined from 6061 aluminum with threaded adjuster sleeves for on-vehicle caster and camber tuning; the tubular arm (ICON 58461DJ) is welded 1026 DOM steel with fixed built-in caster. Both use the Delta Joint.

Does this fit the 2007-2021 Tundra?

No — 58561DJ is for the 2022-2025 Tundra and 2023-2025 Sequoia. Older trucks use ICON 58560DJ.
