ICON

ICON Stage 5 CDCV Suspension System for 24-25 Toyota Tacoma

Name: ICON Stage 5 CDCV Suspension System for 24-25 Toyota Tacoma
Brand: ICON
SKU: K53295TS
Price: 4241.29 USD
Availability: InStock

$4,241.29 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53295TS

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3 inch front lift to clear larger tires and level the stance
10-level manually adjustable CDC Valve compression damping for on- or off-road tuning
Tubular upper control arms with serviceable Delta Joint Pro restore geometry and add caster
2.5 Series remote-reservoir shocks for fade-free performance on long trails
Triple-rate rear springs balance plush ride comfort with bottoming resistance under load
Includes front differential drop kit for proper 4WD CV angles
Complete standalone front-and-rear system engineered by ICON for the new Tacoma

The ICON Vehicle Dynamics K53295TS Stage 5 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses CDCV valving with 10 external settings of manual compression damping adjustment with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable front coilovers provide 1.25-3 inches of lift to clear larger tires and level the stance
CDC Valve technology offers 10 levels of manual compression damping adjustment to dial in ride feel on or off road
Tubular upper control arms with serviceable Delta Joint Pro restore correct front-end geometry and add caster
2.5 Series remote-reservoir shocks resist fade and deliver consistent damping on long, fast trails
Triple-rate rear springs blend a plush ride with strong bottoming resistance under load

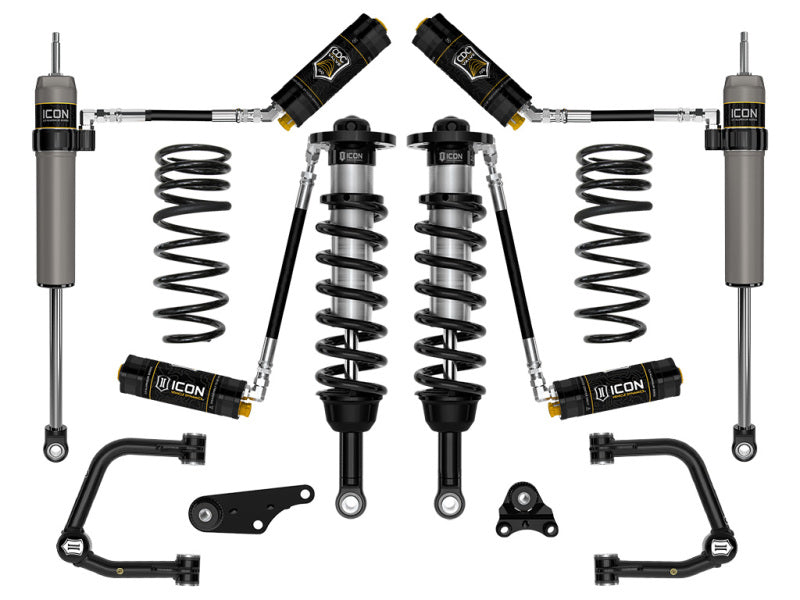

What's Included

2.5 Series front coilovers with remote reservoirs (CDCV)
Tubular front upper control arms with Delta Joint Pro
Front differential drop kit (4WD)
2.5 Aluminum Series rear reservoir shocks (CDCV)
Triple-rate rear coil springs

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53295TS
Stage: 5 (complete system)
Front lift range: 1.25-3 inches
Shock series: 2.5 with remote reservoirs
Valve type: CDCV (manually adjustable, 10 levels)
Upper control arms: Tubular with Delta Joint Pro
Rear springs: Triple-rate
Position: Front and rear (complete system)

Fitment

Engineered specifically for the 2024-2025 Toyota Tacoma 4WD. Not compatible with Adaptive Variable Suspension (AVS) equipped models (Limited, Trailhunter, TRD Pro). ADAS recalibration is required after installation; an adjustable track bar is recommended but not required to recenter the axle.

2024-2025 Toyota Tacoma (4WD)

FAQ

Will the ICON K53295TS fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53295TS provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series shocks are equipped with CDC Valves offering 10 settings of manual compression damping adjustment front and rear.

What does the Stage 5 system include, and how does it differ from the other ICON stages?

Stage 5 is the CDCV top tier: 2.5 Series coilovers and rear shocks with 10-setting manual compression adjustment (CDC Valves), tubular upper control arms and triple-rate rear coil springs.
