Mishimoto Intercooler MMINT-TAC-24BK 2024-2025 Toyota Tacoma Black

Name: Mishimoto Intercooler MMINT-TAC-24BK 2024-2025 Toyota Tacoma Black
Brand: Mishimoto
SKU: MMINT-TAC-24BK
Price: 849.95 USD
Availability: InStock

$849.95 USD

Sale Sold out

Shipping calculated at checkout.

Free Shipping

SKU:MMINT-TAC-24BK

In stock

FREE shipping on this item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Bar-and-plate core measuring 24.13 x 8.87 x 3.50 inches for real heat-sink mass
Up to 36 degrees F lower charge air temperature at wide-open throttle, per Mishimoto testing
30 percent lower pressure drop than the OEM intercooler
Cast aluminium end tanks with billet aluminium ORB ports
2.03-inch inlet and 2.22-inch outlet, 31 pound assembly
Stealth-black powder coat finish
Ships with the intercooler duct and duct bracket for a sealed direct fit
Compatible with OEM or Mishimoto charge pipes; Mishimoto Lifetime Warranty

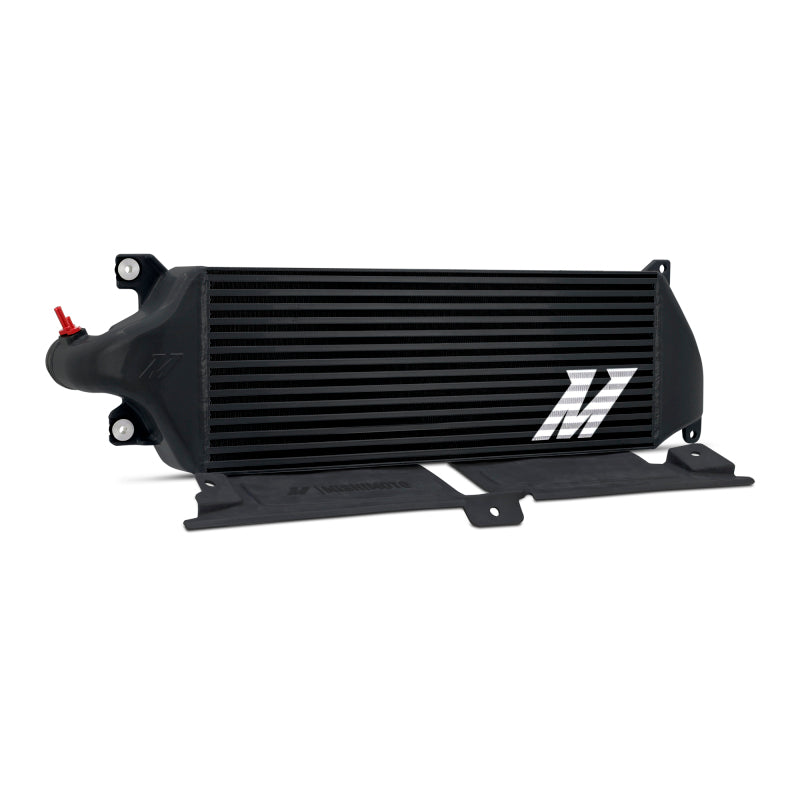

Mishimoto part MMINT-TAC-24BK is the stealth-black performance intercooler for the 2024+ Toyota Tacoma and the 2024+ Toyota Land Cruiser LC250 running the 2.4L turbocharged T24A-FTS engine. It is a bar-and-plate core measuring 24.13 by 8.87 by 3.50 inches, with cast aluminium end tanks, billet aluminium ORB ports, a 2.03-inch inlet and a 2.22-inch outlet, at 31 pounds.

A turbocharged four-cylinder in a truck lives in the worst-case duty cycle for charge-air cooling: long grades under load, low-speed crawling with no ram air, and repeated wide-open-throttle pulls with a trailer behind. Mishimoto's answer is core mass and geometry — its testing shows charge air temperatures cut by up to 36 degrees F at wide-open throttle with 30 percent lower pressure drop than the OEM intercooler. Lower drop matters as much as lower temperature: it is the difference between a bigger core that cools well and a bigger core that chokes airflow.

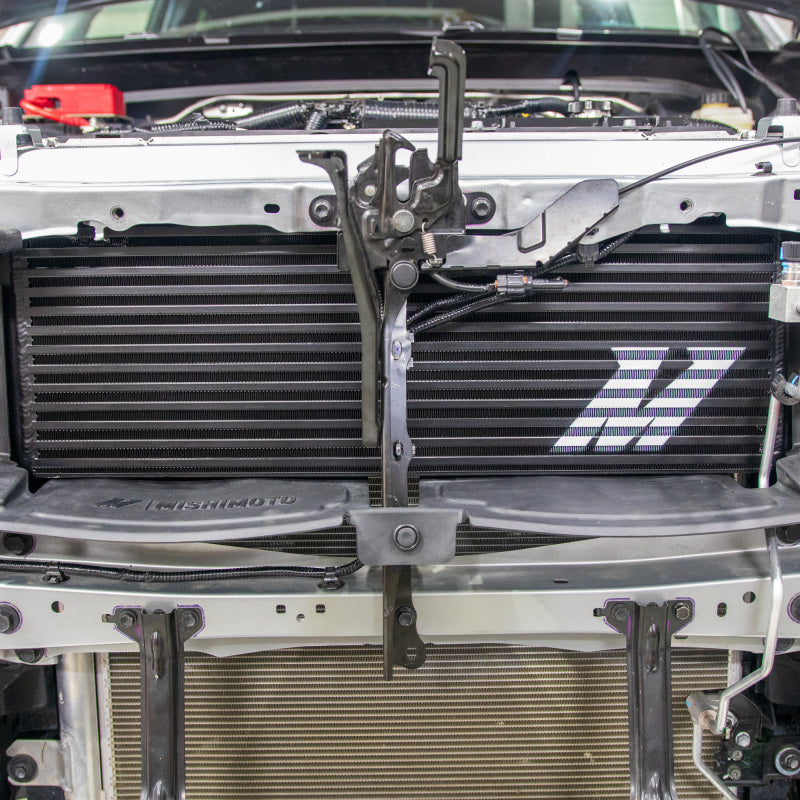

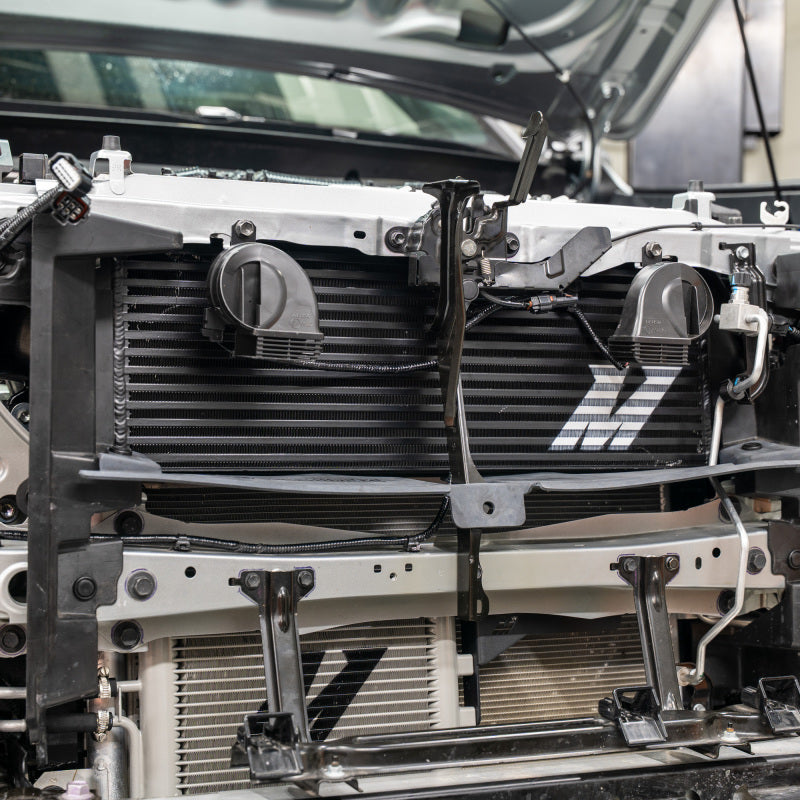

This is a direct-fit part. The box holds the intercooler, two vacuum fittings, an intercooler duct and a duct bracket, and Mishimoto rates the job medium difficulty. Charge pipes are sold separately; Mishimoto states the intercooler works with both the OEM pipes and its own. Coverage is the Mishimoto Lifetime Warranty.

Emissions: No CARB EO number has been found for MMINT-TAC-24BK. It is not legal for sale or use in California or other states that have adopted California emission standards.

Key Benefits

Bar-and-plate core, 24.13 x 8.87 x 3.50 inches, weighing 31 pounds.
Charge air temperatures cut by up to 36 degrees F at wide-open throttle, per Mishimoto's testing.
30 percent lower pressure drop than the OEM intercooler — more core without choking flow.
Cast aluminium end tanks with billet aluminium ORB ports; 2.03-inch inlet, 2.22-inch outlet.
Stealth-black powder coat, and it ships with the duct and duct bracket needed to seal it up.
Works with the factory charge pipes or Mishimoto's, so you can stage the build.
Covered by the Mishimoto Lifetime Warranty.

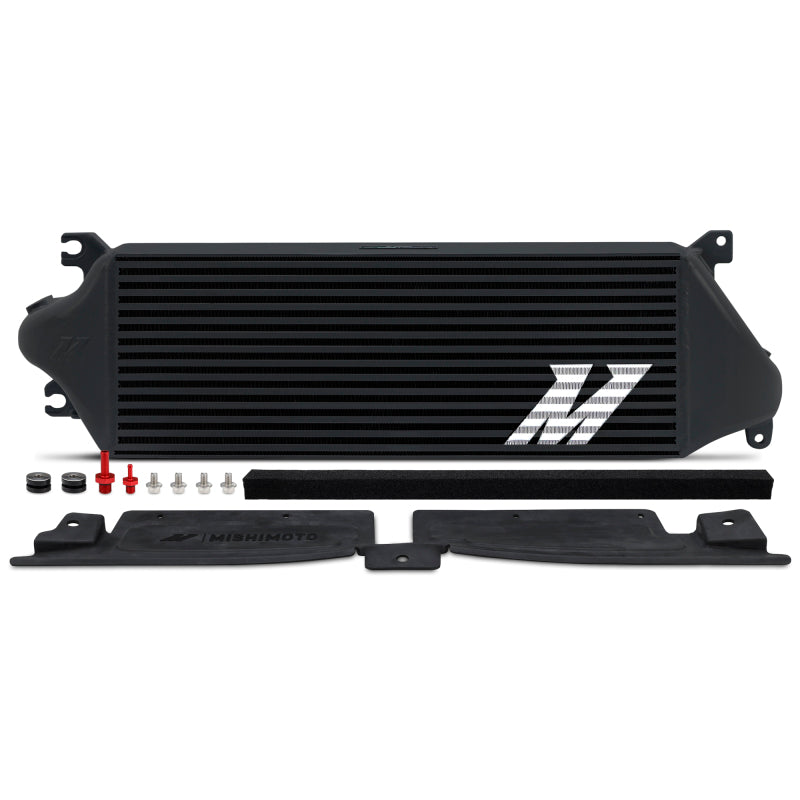

What's Included

1x performance intercooler, black
2x vacuum fittings
1x intercooler duct
1x intercooler duct bracket

Fitment

Mishimoto lists MMINT-TAC-24BK for the 2024+ Toyota Tacoma with the T24A-FTS 2.4L turbocharged engine on the N400 chassis, and for the 2024+ Toyota Land Cruiser LC250 with the same engine — on the Land Cruiser, Mishimoto notes that A/C condenser bracket removal may be required. Mishimoto publishes no trim, cab, bed or transmission restriction for this intercooler, and does not list the 2016-2023 third-generation Tacoma. On the i-FORCE MAX hybrid, Mishimoto lists the T24A-FTS engine and makes no statement either way about hybrid applications for this part — confirm with Mishimoto before ordering for a hybrid truck. The direct sibling is MMINT-TAC-24SL, the identical intercooler in silver. Mishimoto also sells a complete intercooler kit under a separate part number bundling the cooler with charge pipes — this listing is the intercooler on its own.

FAQ

Is Mishimoto MMINT-TAC-24BK CARB legal in California?

No CARB EO number has been found for this part. It is not legal for sale or use in California or other states that have adopted California emission standards.

Does MMINT-TAC-24BK include charge pipes?

No. Charge pipes are sold separately. Mishimoto states this intercooler is compatible with both the OEM charge pipes and Mishimoto's own.

What is the difference between MMINT-TAC-24BK and MMINT-TAC-24SL?

They are the same intercooler. MMINT-TAC-24BK has the stealth-black powder coat and MMINT-TAC-24SL is silver.

Will this intercooler fit a Toyota Land Cruiser LC250?

Yes. Mishimoto lists the 2024+ Land Cruiser LC250 with the same T24A-FTS engine, and notes that A/C condenser bracket removal may be required on that vehicle.

Vehicle Fitment

Years	Make	Model	Submodel
2024–2025	Toyota	Land Cruiser	—
2024–2025	Toyota	Tacoma	—

Specifications

material: Bar-and-plate aluminium core with cast aluminium end tanks and billet aluminium ORB ports
finish: Stealth black powder coat
compatibility: 2024+ Toyota Tacoma and Land Cruiser LC250 with the 2.4L turbocharged T24A-FTS engine
color: Black
inlet: 2.03 in
outlet: 2.22 in
warranty: Mishimoto Lifetime Warranty
core size: 24.13 in long x 8.87 in tall x 3.50 in thick
core type: Bar-and-plate
end tanks: Cast aluminium with billet aluminium ORB ports
carb status: No CARB EO found — not legal for sale or use in California or other states that have adopted California emission standards
charge pipes: Sold separately; compatible with OEM and Mishimoto pipes
assembly mass: 31 lb
pressure drop: 30 percent lower than OEM
charge air temp reduction: Up to 36 degrees F at wide-open throttle
