ICON 55160 Front Diff Drop Kit for 24-26 Toyota Tacoma 4WD

Name: ICON 55160 Front Diff Drop Kit for 24-26 Toyota Tacoma 4WD
Brand: ICON
SKU: 55160
Price: 239.75 USD
Availability: InStock

$239.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:55160

In stock

Free shipping on orders $250+
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Corrects CV angle at full droop after a front lift on IFS Toyotas
Frees up the full front suspension travel instead of limiting droop
Polyurethane bushings replace soft OE rubber and stop the diff walking under load
CNC laser-cut, brake-formed steel with semi-gloss black powder coat
100 percent bolt-on, no cutting or welding
Required by ICON for its coilover kits on these three platforms
One part number covers Tacoma, 4Runner and Land Cruiser 250

The ICON 55160 is a front differential drop kit for 4WD models of the 2024-2026 Toyota Tacoma, the 2025-2026 4Runner and the 2024-2025 Land Cruiser 250 Series, and it exists to fix the geometry problem that a taller front end creates.

Lift the front of an independent-front-suspension Toyota and the differential stays where Toyota bolted it while the wheels travel further down. The CV axles now run at a steeper angle at full droop than they were designed for, and at the extreme they bind - which shows up as a clunk over a whooped-out road, accelerated boot wear, and in the worst case a failed joint miles from pavement. Dropping the differential a fixed amount pulls the inboard end of each axle down toward the outboard end and puts the joints back in their working range.

ICON builds the kit from CNC laser-cut, precision brake-formed steel finished in semi-gloss black powder coat, and it swaps the soft OE differential bushings for polyurethane.

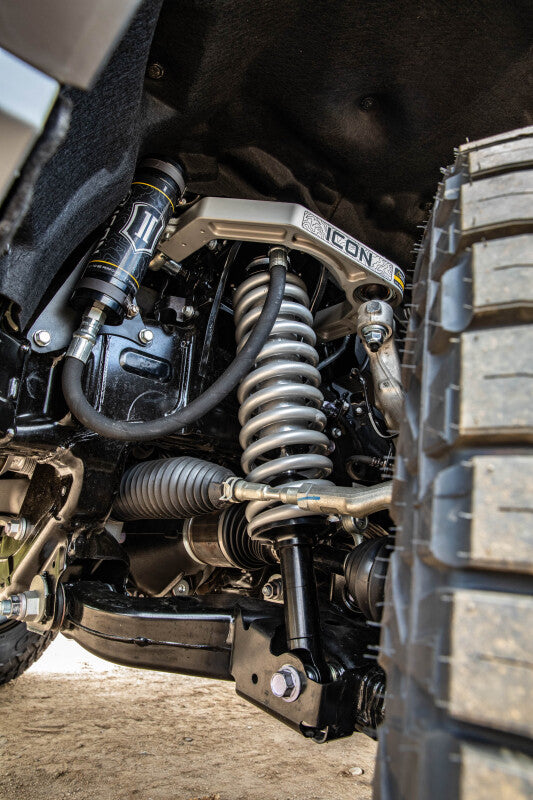

ICON calls 55160 required for its coilover installations on these platforms, so if a set of ICON coilovers is on the build sheet, this kit belongs in the same order. Installation is 100 percent bolt-on with no cutting or welding.

Key Benefits

Restores CV angle at full suspension droop after a front lift, keeping the joints inside their designed operating range.
Maximizes the available front suspension travel instead of leaving droop on the table to protect the axles.
Polyurethane mounting bushings replace the soft OE rubber and limit differential movement under load.
CNC laser-cut and precision brake-formed steel construction rather than a folded-plate spacer.
100 percent bolt-on - no cutting, no welding.

What's Included

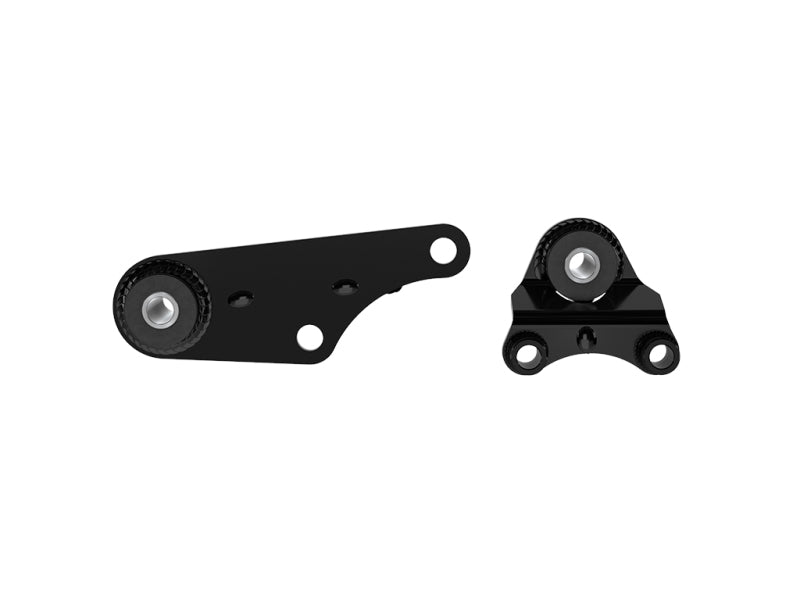

Front differential drop kit brackets, CNC laser-cut steel
Polyurethane mounting bushings
Installation guide and warranty document

Specifications

MPN: 55160
Type: front differential drop kit
Material: CNC laser-cut, precision brake-formed steel
Finish: semi-gloss black powder coat
Bushings: polyurethane, replacing the OE differential bushings
Installation: 100 percent bolt-on, no cutting or welding
Drive type: 4WD only
Warranty: ICON limited lifetime warranty against defects and premature failure, excluding wear items
CARB status: n/a (non-emissions part)

Fitment

ICON lists 55160 for the 2024-2026 Toyota Tacoma in 4WD, and states that all submodels within the listed year range are compatible.

ICON also lists 55160 for the 2025-2026 Toyota 4Runner in 4WD, the 6th-generation truck that shares the TNGA-F platform with the Tacoma.

ICON also lists 55160 for the 2024-2025 Toyota Land Cruiser 250 Series.

Does not fit 2WD models. A differential drop kit relocates the front differential housing, and a 2WD truck does not have one - ICON lists only 4WD applications for this part number.

Cab, bed length, transmission and the i-FORCE MAX hybrid are not gates here. ICON publishes no restriction on any of them and states that all submodels in the listed years are compatible.

2024-2026 Toyota Tacoma 4WD
2025-2026 Toyota 4Runner 4WD
2024-2025 Toyota Land Cruiser 250 Series 4WD

FAQ

Does ICON 55160 fit a 2WD Tacoma?

No. ICON lists only 4WD models for this part number, and a 2WD truck has no front differential to drop.

Do I need a diff drop kit with ICON coilovers?

ICON states that 55160 is required for the installation of its coilover kits on the 2024-2026 Tacoma, 2025-2026 4Runner and 2024-2025 Land Cruiser 250.

Does 55160 fit the i-FORCE MAX hybrid Tacoma?

ICON publishes no powertrain restriction and states that all submodels within the listed year ranges are compatible.

Is cutting or welding required to install it?

No. ICON describes the kit as 100 percent bolt-on with no cutting or welding necessary.
