K&N Engineering 63-8003 Snorkel Intake Kit for 2024-26 Toyota Tacoma

Name: K&N Engineering 63-8003 Snorkel Intake Kit for 2024-26 Toyota Tacoma
Brand: K&N Engineering
SKU: 63-8003
Price: 589.99 USD
Availability: InStock

$589.99 USD

Sale Sold out

Shipping calculated at checkout.

Free Shipping

SKU:63-8003

In stock

FREE shipping on this item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Moves the air pickup from the inner fender up to passenger-side A-pillar height
Matched to the K&N Engineering 63-9043 intake system - will not bolt to the factory airbox
K&N Engineering snorkel top with integrated grill, clamped with a #72 hose clamp
Seven-stud fender mount plus a taped A-pillar bracket for two-point support
Rubber sealing washers at every stud seal the drilled fender
Fresh-air and airbox lid block-offs let you force all intake air through the snorkel
Two full-size drilling templates supplied for hole layout
Complete stud, nut, washer, grommet and clamp hardware pack in the box

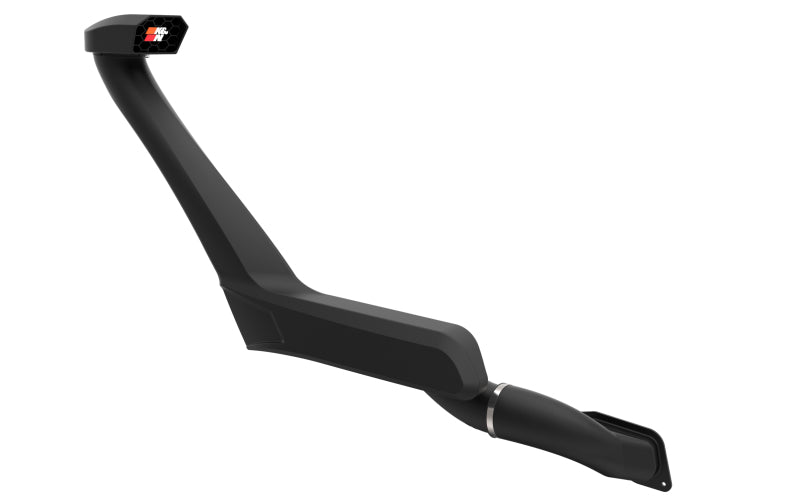

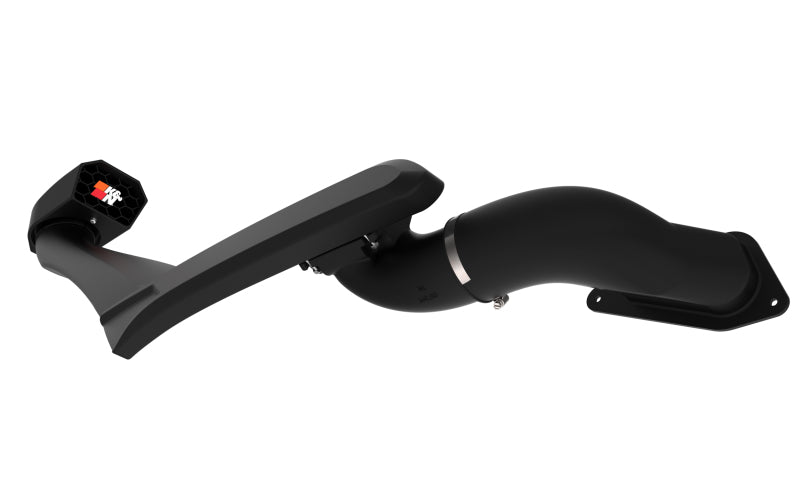

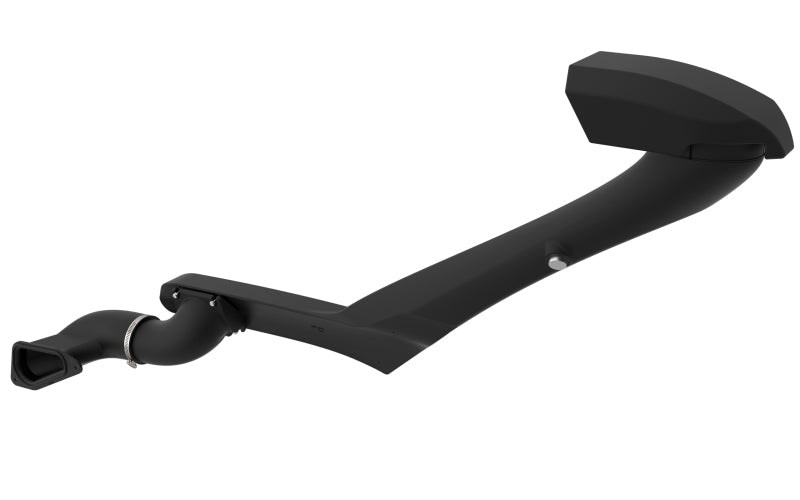

The K&N Engineering 63-8003 Elevated Intake Kit is a fender-mounted snorkel for the 2024-2026 Toyota Tacoma with the L4-2.4L turbo engine and the 2026 Toyota 4Runner, and it is a snorkel assembly only: K&N Engineering states it must be used with the K&N Engineering 63-9043 intake system, which is sold separately.

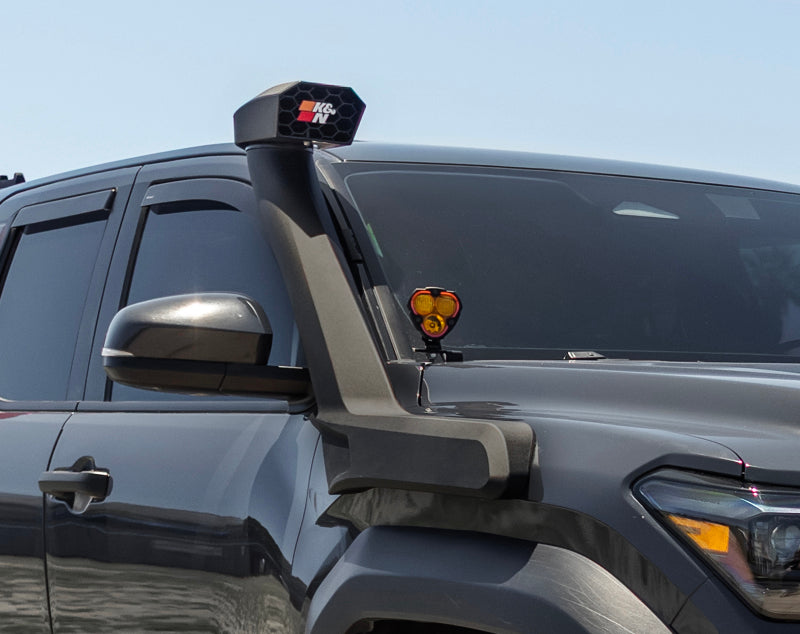

On the fourth-generation Tacoma the factory air pickup sits low in the passenger-side inner fender - exactly where dust hangs on a washboard road. The 63-8003 carries that pickup up the A-pillar to roof height instead. It is a body-modification kit, not a bolt-on: the instruction sheet has you open four 3/8 in and three 1/2 in mounting holes and cut a 4 in pass-through with a hole saw in the passenger-side fender, then deburr and paint the bare edges. K&N Engineering recommends a professional installer if that work is outside your comfort zone.

Key Benefits

Relocates the intake pickup out of the inner fender and up to the top of the passenger-side A-pillar.
Capped by a K&N Engineering snorkel top with an integrated grill, clamped on with a #72 hose clamp.
Braced at two points - seven M6 studs through the fender plus a dedicated A-pillar mount bracket on double-sided tape.
Rubber sealing washers sit behind the large fender washers at every stud, so the drilled fender is sealed at the fastener line.
Ships with a factory fresh-air block-off and a K&N airbox lid block-off, so in extreme conditions all intake air can be forced through the snorkel.
Complete hardware pack - studs, nylock nuts, fender washers, grommets, screw grommets and two hose clamps are all in the box.
Engineered as a matched pair with the K&N Engineering 63-9043 intake; K&N Engineering states the snorkel will not bolt to the stock system or to any other manufacturer's intake.

What's Included

Snorkel body, inner tube and K&N Engineering snorkel top with grill
Snorkel coupler, 9/16 in ID grommet and two inner screw grommets
Fresh-air block-off plate and black rubber lid block-off
Seven M6-1.0 x 40 mm studs and seven M6 nylock nuts
Three 1 in fender washers, four 1/4 in ID washers and four rubber sealing washers
A-pillar mount bracket with double-sided mounting tape
Two M6-1 x 20 mm hex bolts, one #60 and one #72 hose clamp
Instruction sheet with two full-size drilling templates

Fitment

K&N Engineering lists the 63-8003 for the 2024-2026 Toyota Tacoma with the L4-2.4L turbo engine and for the 2026 Toyota 4Runner. Because the kit is a snorkel only, it can be run solely in combination with the K&N Engineering 63-9043 intake system, and K&N Engineering states that 63-9043 will not fit the 2024-2026 Tacoma TRD Pro or the 2025-2026 4Runner TRD Pro - so the snorkel does not fit a TRD Pro either. It does not fit a vehicle with a body lift, and it does not bolt to the factory airbox or to any other brand's intake. K&N Engineering also states that the kit does not increase the manufacturer's suggested water fording limit for the vehicle,. K&N Engineering names only the 2.4L turbo engine and the TRD Pro exclusion on this application; it publishes no i-FORCE MAX hybrid, cab, bed or transmission restriction. Do not confuse the two part numbers: 63-9043 is the intake system itself - airbox, tube, dry filter and MAF adapter - and is the required companion, while 63-8003 adds only the elevated snorkel stack that feeds it. No CARB Executive Order was found for 63-8003, so this part is not legal for sale or use in California or other states that have adopted California emission standards.

FAQ

Does the K&N 63-8003 snorkel include the intake system?

No. K&N Engineering's instruction sheet states that K&N intake system 63-9043 must be used and is sold separately, and that this snorkel will not bolt up to the stock system or any other manufacturer's intake.

Does installing 63-8003 require cutting the fender?

Yes. K&N Engineering's instructions direct you to drill eight 3/16 in pilot holes, open four 3/8 in and three 1/2 in mounting holes, and cut one 4 in pass-through hole in the passenger-side fender with a hole saw, then deburr and paint the bare metal.

Does the K&N 63-8003 fit a Tacoma TRD Pro?

No. The snorkel requires K&N intake 63-9043, and K&N Engineering states that 63-9043 will not fit the 2024-2026 Toyota Tacoma TRD Pro or the 2025-2026 Toyota 4Runner TRD Pro.

Is the K&N 63-8003 CARB legal in California?

No CARB Executive Order was found for this part number, so it is not legal for sale or use in California or in other states that have adopted California emission standards.

Vehicle Fitment

Years	Make	Model	Submodel
2026	Toyota	4Runner	—
2024–2026	Toyota	Tacoma	—

Specifications

compatibility: Requires K&N Engineering intake system 63-9043, sold separately. Will not bolt to the factory airbox or to any other manufacturer's intake. Not designed for vehicles with a body lift.
mounting: Passenger-side fender on seven M6 studs, plus an A-pillar support bracket on double-sided tape
carb status: No CARB EO found - not legal for sale or use in California or other states that have adopted California emission standards
snorkel top: K&N Engineering top with integrated grill, secured with a #72 hose clamp
water fording: K&N Engineering states this kit will not increase the vehicle's manufacturer-suggested water fording limit
body modification: Drills the passenger-side fender: eight 3/16 in pilot holes, four 3/8 in and three 1/2 in mounting holes, and one 4 in pass-through hole cut with a hole saw
instruction sheet: K&N Engineering #170146E, rev 2-3-26, with two full-size drilling templates
airbox modification: Two 5/16 in ID holes drilled into the K&N air filter housing
special tools required: Drill motor with 3/16 in, 5/16 in, 3/8 in and 1/2 in bits, a 4 in hole saw, a file and touch-up paint
body lift compatibility: Not designed to fit vehicles with a body lift
required companion part: K&N Engineering intake system 63-9043, sold separately
extreme conditions option: Factory fresh-air block-off and K&N lid block-off included to force all intake air through the snorkel
