ICON Stage 4 Tubular Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 4 Tubular Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53294TS
Price: 3769.54 USD
Availability: InStock

$3,769.54 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53294TS

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 4 front-to-rear suspension system for the 2024-2025 Toyota Tacoma 4WD
Height-adjustable front lift from 1.25 to 3 inches over stock
ICON 2.5 Series remote-reservoir coilovers for fade-free off-road damping
Tubular upper control arms with serviceable Delta Joint Pro for correct alignment and bind-free travel
Triple-rate rear coil springs balance ride comfort with bottoming resistance
2.5 Aluminum Series remote-reservoir rear shocks for consistent control
Vehicle-specific ICON tuning delivers a dialed ride out of the box

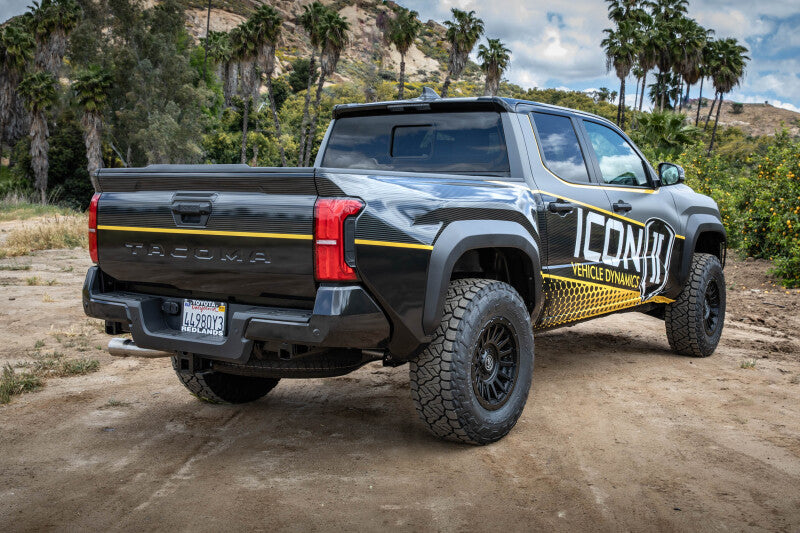

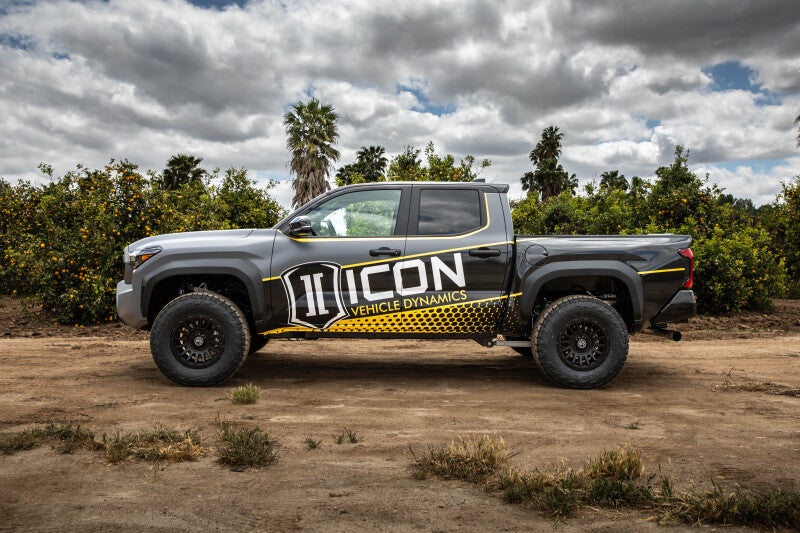

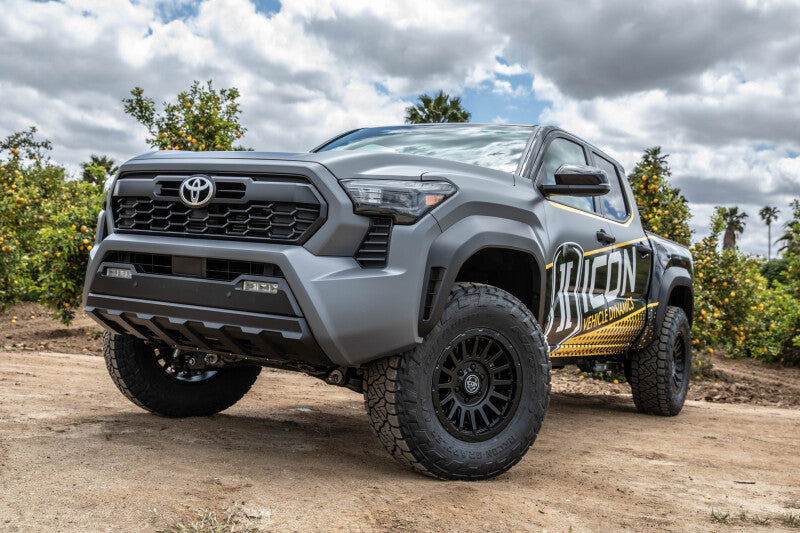

The ICON Vehicle Dynamics K53294TS Stage 4 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable 2.5 Series front coilovers deliver 1.25-3 inches of lift to clear larger tires and level the front end.
Remote-reservoir damping front and rear resists fade on long, rough trails.
Tubular upper control arms with the serviceable Delta Joint Pro restore correct alignment and add full bump and droop travel without bind.
Triple-rate rear coil springs blend a supple ride with firm bottoming resistance.
Vehicle-specific ICON tuning means a dialed ride right out of the box.

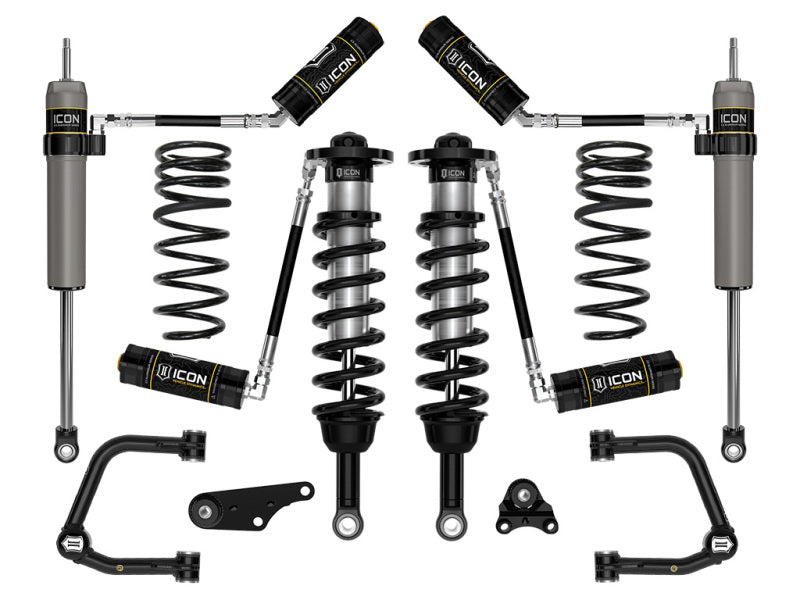

What's Included

2.5 Series front coilovers with remote reservoirs and ICON-engineered coil springs
Tubular upper control arms with Delta Joint Pro
Front differential drop bracket with polyurethane mounting bushings (4WD)
2.5 Aluminum Series remote-reservoir rear shocks
Triple-rate rear coil springs

Specifications

Front lift: 1.25-3 inches (adjustable over stock)
Rear lift: approximately 0.5 inch over stock
Front coilover: ICON 2.5 Series, remote reservoir, vehicle-specific valving
Rear shock: ICON 2.5 Aluminum Series, remote reservoir
Upper control arms: tubular with Delta Joint Pro
Drivetrain: 4WD (configured for 4WD models)

Fitment

Engineered for the 2024-2025 Toyota Tacoma 4WD. Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles, and will not fit submodels with rear leaf springs. An adjustable track bar is recommended (not required) to realign the rear axle. Recalibration of Advanced Driver Assistance Systems (ADAS) is required after installation.

2024-2025 Toyota Tacoma 4WD (front and rear)

FAQ

Will the ICON K53294TS fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53294TS provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 4 system include, and how does it differ from the other ICON stages?

Stage 4 with tubular upper control arms, triple-rate rear coil springs and 2.5 Aluminum Series remote-reservoir rear shocks. K53294T is the same without the triple-rate springs.
