ICON Stage 4 Tubular Lift Kit for 2024-2026 Toyota Tacoma 4WD

Name: ICON Stage 4 Tubular Lift Kit for 2024-2026 Toyota Tacoma 4WD
Brand: ICON
SKU: K53294T
Price: 4094.8 USD
Availability: InStock

$4,094.80 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53294T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3 inch front lift for custom stance and bigger tires
2.5 Series remote-reservoir front coilovers resist fade under hard use
Included tubular upper control arms correct geometry and add caster
2.5 Aluminum Series rear shocks with integrated bump zones for control
Vehicle-specific valving balances ride quality front to rear
Front differential drop maximizes travel and prevents CV bind
Complete bolt-on Stage 4 system engineered for the 4th-gen Tacoma

The ICON Vehicle Dynamics K53294T Stage 4 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable 1.25-3 inch front lift dials in your exact stance and tire clearance
2.5 Series remote-reservoir coilovers add oil volume and heat dissipation to resist fade under hard use
Tubular upper control arms restore front-end geometry, add caster, and improve component clearance
Vehicle-specific valving balances damping front-to-rear for a planted, controlled ride
Front differential drop maximizes travel and prevents CV bind at lift height

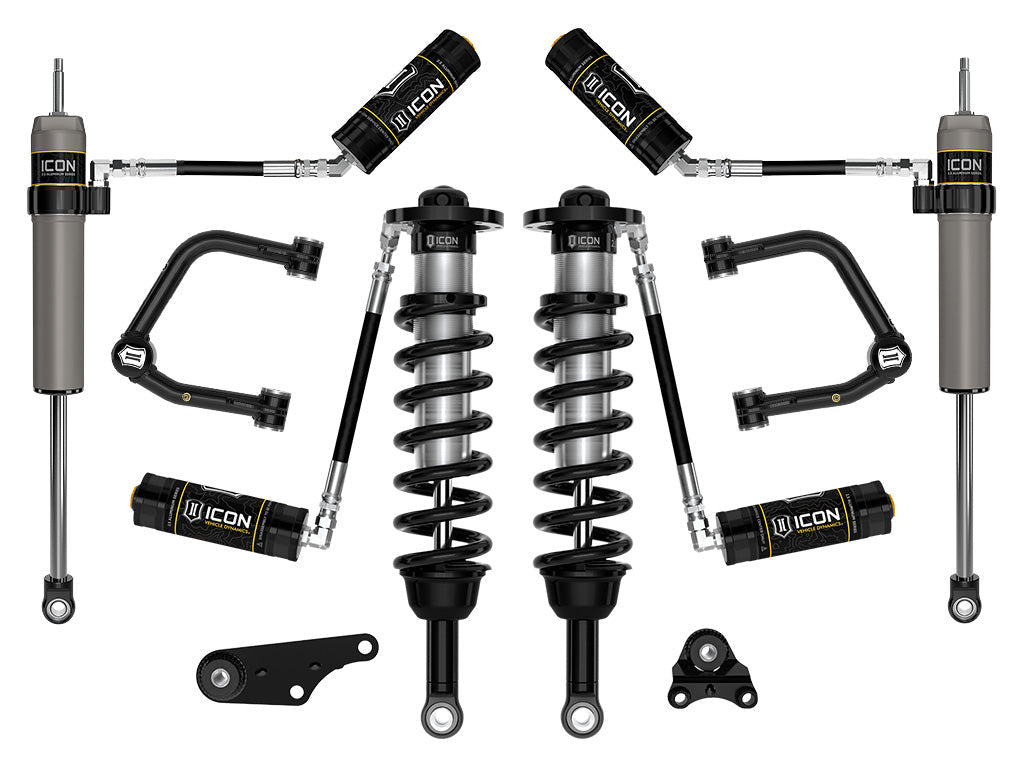

What's Included

Pair of 2.5 Series front coilovers with remote reservoirs and ICON-engineered coil springs
Tubular upper control arm kit
Pair of 2.5 Aluminum Series remote-reservoir rear shocks with integrated bump zones
Vehicle-specific mounting hardware

Fitment

Designed specifically for the 2024-2026 Toyota Tacoma in 4WD configuration. Does not fit submodels equipped with rear leaf springs, and excludes Limited, Trailhunter, and TRD Pro trims. Not compatible with Adaptive Variable Suspension (AVS). Installation requires ICON front differential drop kit (part #55160, sold separately) and recalibration of Advanced Driver Assistance Systems (ADAS) after install.

2024-2026 Toyota Tacoma 4WD (excludes Limited, Trailhunter, TRD Pro and leaf-spring submodels)

FAQ

Will the ICON K53294T fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2026 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53294T provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about up to 1 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 4 system include, and how does it differ from the other ICON stages?

Stage 4 steps the rear up to 2.5 Aluminum Series remote-reservoir shocks with tubular upper control arms and V.S. 2.5 front coilovers. K53294TS adds triple-rate rear coil springs.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

drive: 4WD only
valve: CDC (standard ICON 2.5 valving; non-electronic — CDEV/IIC controller not used on this kit)
lift range: 1.25-3 in front
rear shock: ICON 2.5 Aluminum Series, remote reservoir, integrated bump zones
front shock: ICON 2.5 Series coilover, remote reservoir, height adjustable
rear shocks: ICON 2.5 Aluminum Series, remote reservoir, integrated bump zones
front shocks: ICON 2.5 Series coilover, remote reservoir, height adjustable
front lift range: 1.25-3 inches over stock
install requires: Front differential drop #55160 (sold separately); ADAS recalibration after install
mounting position: Front and rear (complete system)
upper control arms: ICON tubular UCA included
manufacturer part number: K53294T
