ICON Stage 3 Suspension System for 2024-2026 Toyota Tacoma

Name: ICON Stage 3 Suspension System for 2024-2026 Toyota Tacoma
Brand: ICON
SKU: K53293X
Price: 4019.7 USD
Availability: InStock

$4,019.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53293X

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 2.5 Series front coilovers deliver 1.25-3 in of lift for bigger tire fitment
ICON's non-adjustable Vehicle Specific valving is tuned for controlled damping on any terrain
Billet aluminum UCAs with Delta Joint PRO correct geometry and add alignment range
Billet Overland dual-rate rear coils carry roughly 600 lbs of accessory load
2.0 remote-reservoir rear shocks add cooling capacity for sustained off-road use
Integrated front differential drop prevents CV bind at lifted ride height
Complete bolt-on front-and-rear system tuned specifically for the 4th-gen Tacoma

The ICON Vehicle Dynamics K53293X Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable front coilovers dial in 1.25-3 in of lift for larger wheel and tire packages
ICON-tuned Vehicle Specific (V.S.) valving delivers controlled, fade-resistant damping from street to rocks to wide-open desert
Billet aluminum upper control arms with serviceable ICON Delta Joint PRO restore front-end geometry and add caster/camber adjustment
Billet Overland dual-rate rear coils support roughly 600 lbs of added accessory weight for a level, capable stance
Front differential drop maintains proper CV joint operating angles and prevents bind at lifted ride heights

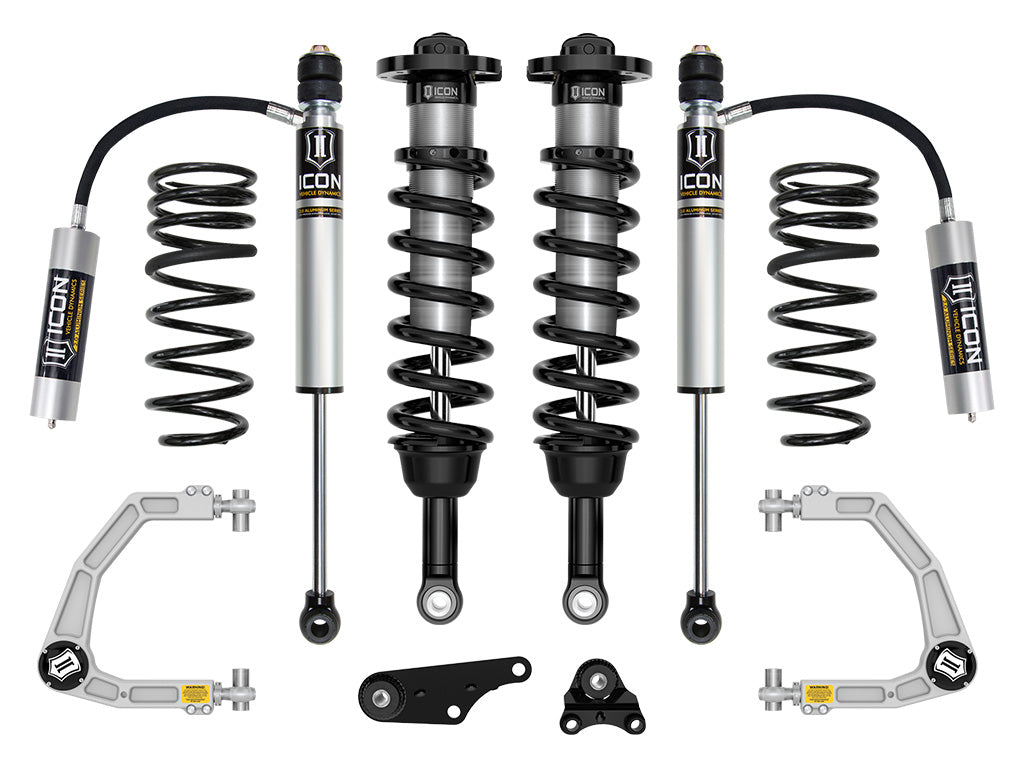

What's Included

Pair of V.S. 2.5 Series front coilover shocks with internal reservoirs
Billet aluminum upper control arm kit with ICON Delta Joint PRO ball joints
Pair of 2.0 Aluminum Series remote-reservoir rear shocks
Billet Overland dual-rate rear coil springs
Front differential drop brackets and polyurethane mounting bushings (4WD)

Specifications

Stage: Stage 3 (complete front and rear system)
Front coilover: V.S. 2.5 Series, 7/8 in shaft, internal reservoir (non-adjustable)
Rear shock: 2.0 Aluminum Series, 5/8 in shaft, remote reservoir
Upper control arm: Billet aluminum with Delta Joint PRO
Rear spring: Billet Overland dual-rate coil
Front lift: 1.25-3 in adjustable
Rear lift: approximately 0.5 in (rated for ~600 lbs added weight)
Drivetrain: configured for 4WD

Fitment

Engineered specifically for the 4th-generation Toyota Tacoma in 4WD configuration.

2024-2026 Toyota Tacoma (4WD)

FAQ

Will the ICON K53293X fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2026 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53293X provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 with billet upper control arms and Overland rear coil springs (rated for about 600 lb added), with 2.0 remote-reservoir rear shocks and ICON's non-adjustable V.S. valving. K53293TX is the tubular-arm Overland version.
