ICON Stage 3 Tubular Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 3 Tubular Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53293TX
Price: 3469.7 USD
Availability: InStock

$3,469.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53293TX

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3 inch front lift dials in your ideal stance and tire clearance
ICON-tuned Vehicle Specific (V.S.) coilovers deliver fade-resistant damping
Tubular Delta Joint Pro upper control arms add strength and correct alignment geometry
Overland-rate rear coils support added camping and touring gear without sagging
Remote-reservoir front and rear shocks resist fade on long, rough trails
Front differential drop brackets protect CV joints and maximize wheel travel on 4WD
Vehicle-specific tuning balances ride quality from front to rear

The ICON Vehicle Dynamics K53293TX Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

1.25-3 inches of adjustable front ride height to clear larger tires and level the stance
V.S. 2.5 Series front coilovers with ICON-tuned, fade-resistant Vehicle Specific valving
Tubular upper control arms with patented Delta Joint Pro for strength, durability, and corrected alignment geometry
Overland-rate rear coil springs that carry added gear weight while preserving ride quality
Remote-reservoir rear shocks tuned to balance the truck front to rear on and off the trail

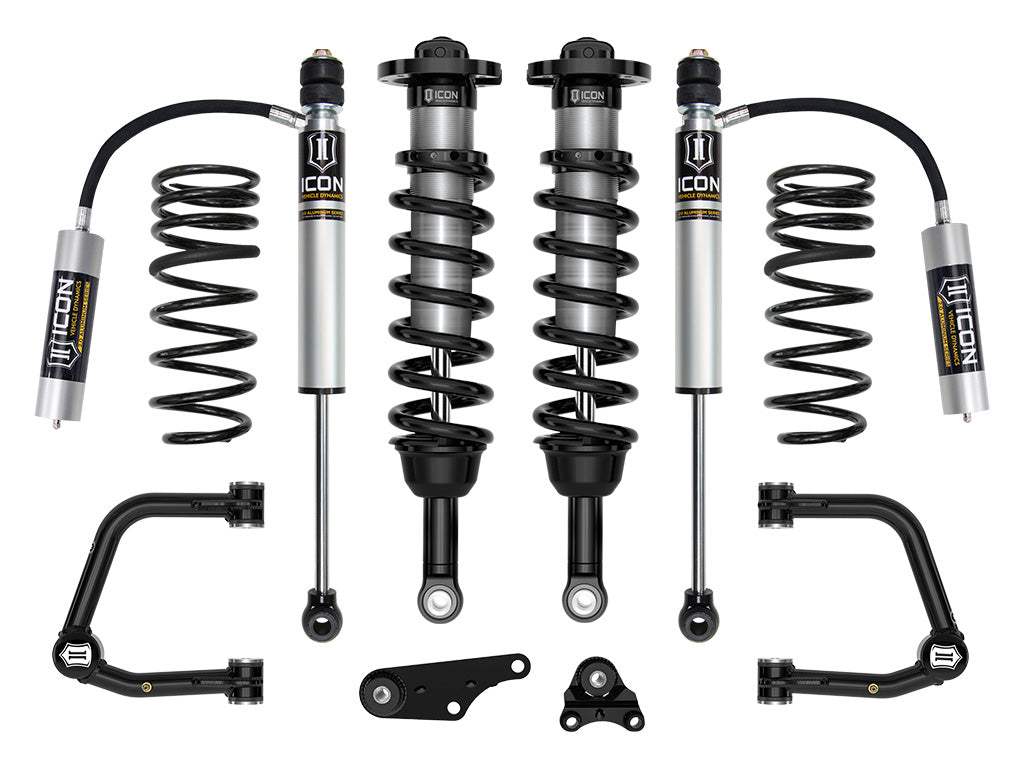

What's Included

V.S. 2.5 Series remote-reservoir front coilovers
Tubular upper control arms with Delta Joint Pro
Front differential drop brackets
Overland-rate rear coil springs
Aluminum Series remote-reservoir rear shocks
Vehicle-specific mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53293TX
Stage: 3
Front Lift: 1.25-3 inches (adjustable)
Valving: V.S. Vehicle Specific (non-adjustable)
Front Shock: 2.5 Series remote reservoir coilover
Upper Control Arms: Tubular with Delta Joint Pro
Rear: Overland-rate coil springs with remote-reservoir shocks
Recommended Tire: 33 x 11.50 in (trimming may be required for larger)

Fitment

This system is engineered specifically for the 4th-generation Toyota Tacoma. The front differential drop maximizes CV joint operating angle and wheel travel on 4WD models.

2024-2025 Toyota Tacoma

FAQ

Will the ICON K53293TX fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53293TX provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 with tubular upper control arms and Overland rear coil springs for added gear weight, with 2.0 remote-reservoir rear shocks and ICON's non-adjustable V.S. valving. K53293X is the billet-arm Overland version.
