ICON Stage 3 Suspension System for 2024-2026 Toyota Tacoma

Name: ICON Stage 3 Suspension System for 2024-2026 Toyota Tacoma
Brand: ICON
SKU: K53293TS
Price: 2949.25 USD
Availability: InStock

$2,949.25 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53293TS

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Vehicle-tuned 2.5 Series front coilovers with internal reservoirs for consistent, fade-free damping
Adjustable 1.25 to 3 inches of front lift to fit larger wheel and tire setups
Tubular upper control arms with rebuildable ICON Delta Joint PRO for corrected geometry and added caster
Triple-rate rear coil springs blend highway comfort with strong off-road bottoming resistance
2.0 Aluminum Series remote reservoir rear shocks add cooling capacity and front-to-rear balance
Complete bolt-on Stage 3 package designed and tuned by ICON for the 2024-2026 Tacoma platform
CAD-plated coilover bodies with 7/8-inch shafts for durability and corrosion resistance

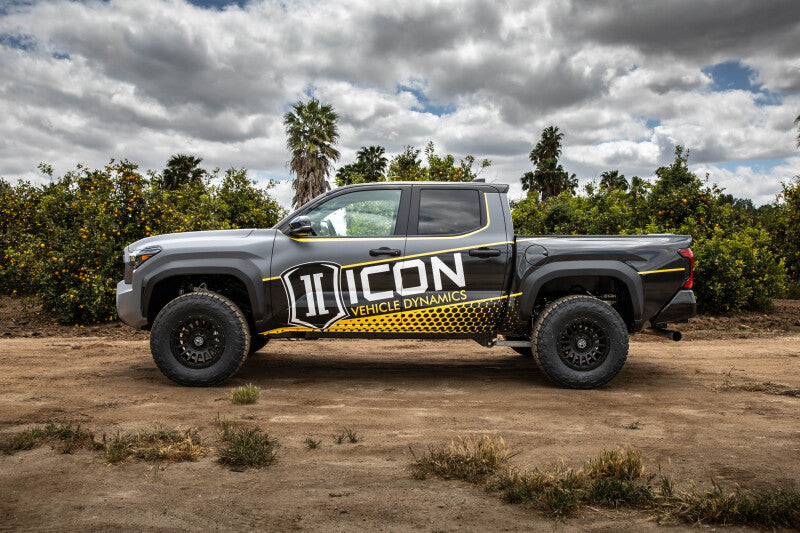

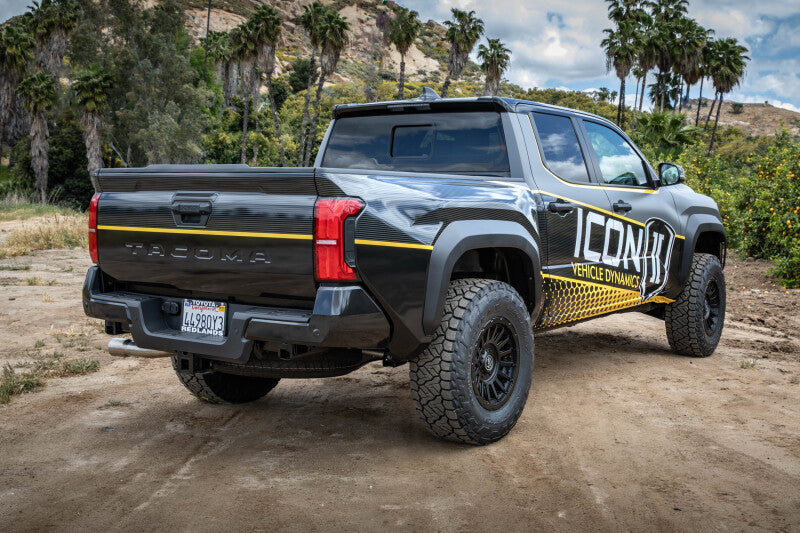

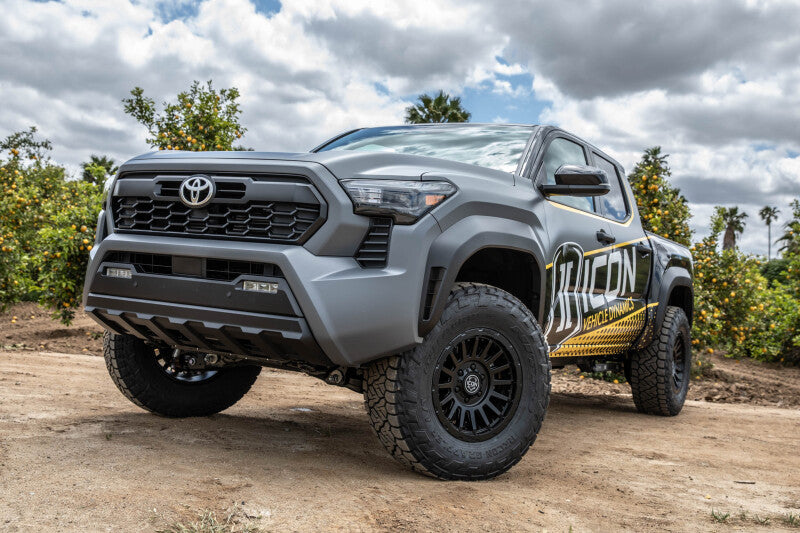

The ICON Vehicle Dynamics K53293TS Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Vehicle-specific tuned 2.5 Series front coilovers with internal reservoirs for superior heat management and consistent damping
Height-adjustable 1.25 to 3 inches of front lift to clear larger, more aggressive wheel and tire combinations
Tubular upper control arms with the serviceable, rebuildable ICON Delta Joint PRO add caster and correct front-end geometry through full travel
Triple-rate rear coil springs balance a plush highway ride with strong bottoming resistance under load
2.0 Aluminum Series remote reservoir rear shocks deliver added cooling capacity and vehicle-specific valving for front-to-rear balance

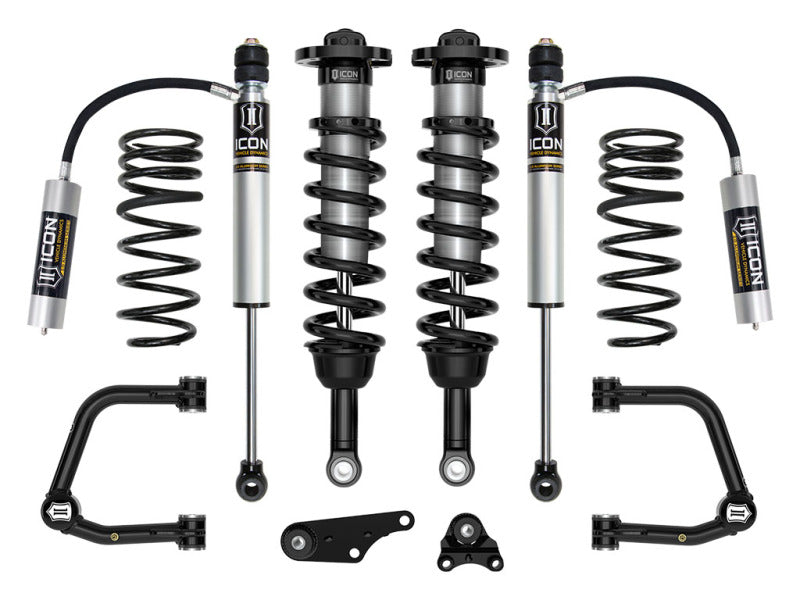

What's Included

Pair of 2.5 Series front coilover shocks (vehicle-tuned, height-adjustable, internal reservoir)
Tubular upper control arms with ICON Delta Joint PRO
Triple-rate rear coil springs
Pair of 2.0 Aluminum Series remote reservoir rear shocks
Polyurethane differential bushings and required hardware

Fitment

Engineered specifically for the 2024-2026 Toyota Tacoma 4WD. Will not fit submodels equipped with rear leaf springs and is not compatible with Adaptive Variable Suspension (AVS) equipped vehicles (Limited, Trailhunter, TRD Pro). The ICON #55160 front differential drop kit is required on 4WD models and is sold separately.

2024-2026 Toyota Tacoma (4WD, coil-rear models)

FAQ

Will the ICON K53293TS fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2026 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53293TS provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 with tubular upper control arms, triple-rate rear coil springs and 2.0 remote-reservoir rear shocks. K53293S is the billet-arm version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

stage: Stage 3
valve: non-adjustable (2.5 Series internal reservoir)
drivetrain: 4WD
front lift: 1.25 to 3 inches over stock (adjustable)
rear shock: 2.0 Aluminum Series remote reservoir
front shock: 2.5 Series coilover, internal reservoir, 7/8in shaft
rear spring: triple-rate coil
restrictions: Front differential drop kit (ICON #55160) required for 4WD installation, sold separately
upper control arms: tubular w/ ICON Delta Joint PRO
required separately: ICON #55160 front differential drop kit
