ICON

ICON Stage 3 Billet Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 3 Billet Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53293S
Price: 3416.75 USD
Availability: InStock

$3,416.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53293S

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 1.25-3 inch front lift for larger wheel and tire combinations
2.5 Series front coilovers with internal reservoirs for improved damping and cooling
Billet aluminum upper control arms restore proper geometry with camber/caster adjustment
Rebuildable ICON Delta Joint PRO ball joints eliminate bind through full suspension travel
Triple-rate rear springs deliver on-road comfort with off-road bottoming resistance
2.0 Aluminum Series remote-reservoir rear shocks balance front-to-rear performance
Complete front-and-rear system with diff drop brackets to prevent CV bind

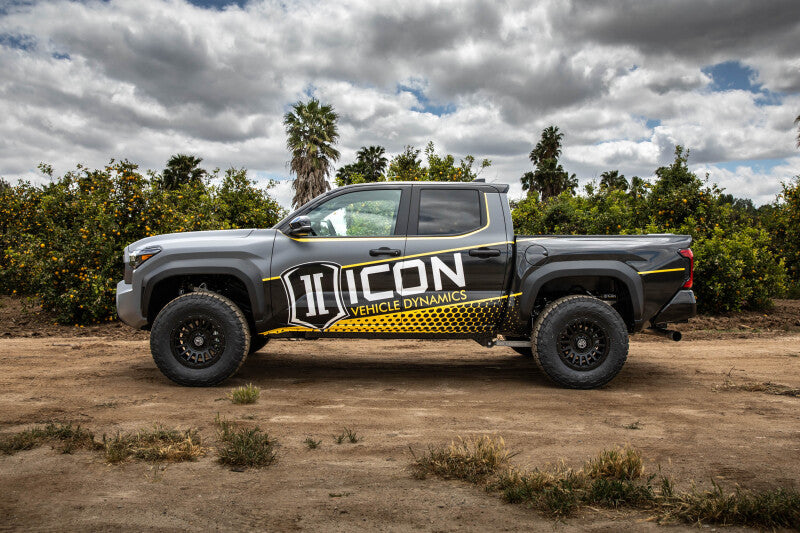

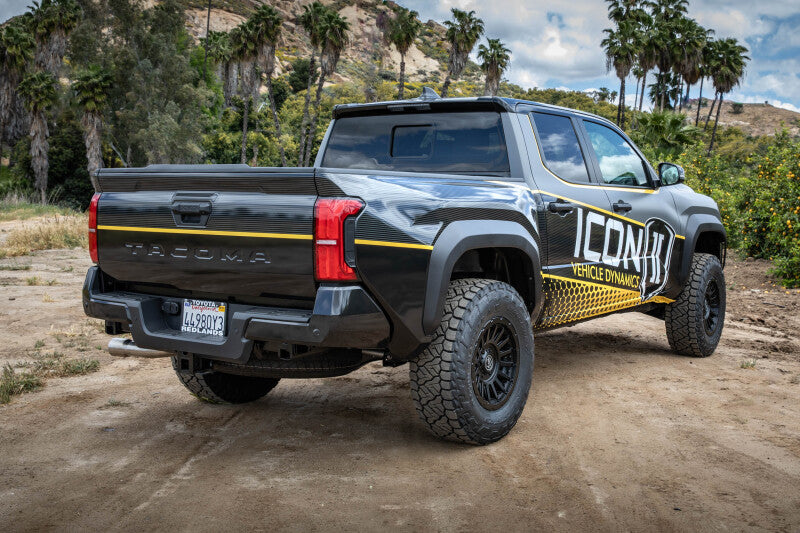

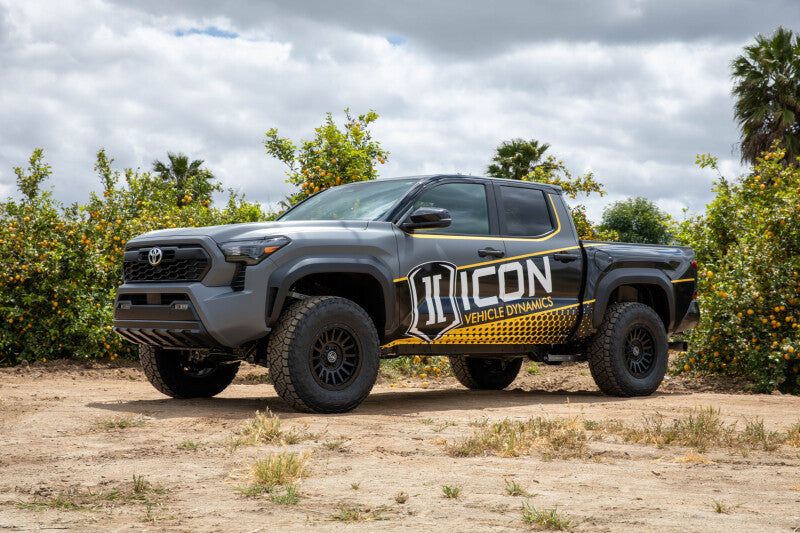

The ICON Vehicle Dynamics K53293S Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable 1.25-3 inch front lift to clear larger, more aggressive wheel and tire setups
2.5 Series front coilovers with internal reservoirs for superior damping control and shock cooling
Billet aluminum upper control arms correct front-end geometry and add camber/caster adjustment
Rebuildable ICON Delta Joint PRO ball joints allow full bump and droop travel without bind
Triple-rate rear springs blend a plush on-road ride with strong bottoming resistance off-road
Front-to-rear balanced valving for confident handling on the street and on the trail

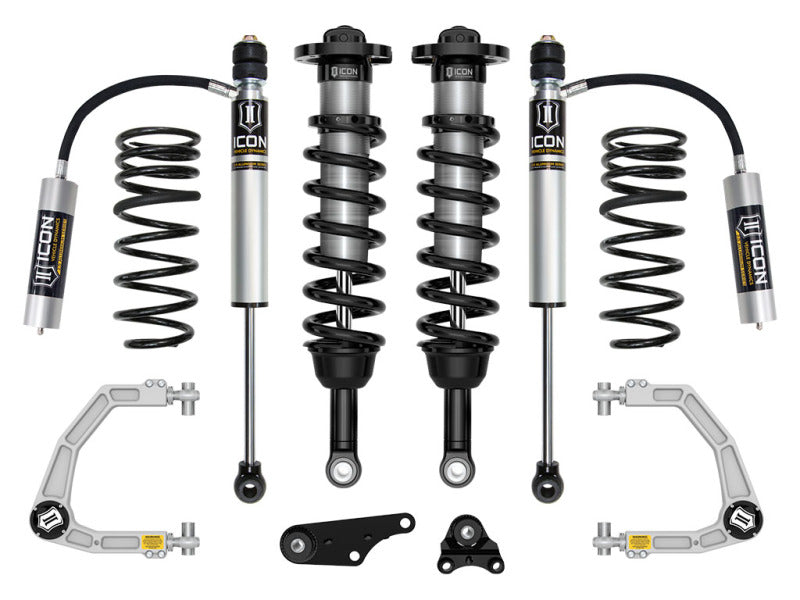

What's Included

2.5 Series front coilover shocks with internal reservoirs and ICON-tuned coil springs
Billet aluminum upper control arm kit with ICON Delta Joint PRO ball joints
Polyurethane differential mounting bushings and front differential drop brackets
Triple-rate rear coil springs
ICON 2.0 Aluminum Series remote-reservoir rear shocks

Specifications

Lift range: 1.25-3 inches (front)
Front coilover: 2.5 Series, internal reservoir, height adjustable
Rear shock: 2.0 Aluminum Series, remote reservoir
Rear spring: triple-rate
Upper control arms: billet aluminum with Delta Joint PRO
Position: front and rear
Drivetrain: 4WD (2WD installs without diff drop kit 55160)

Fitment

This kit is configured for 4WD models. Verified for the exact part number K53293S:

2024-2025 Toyota Tacoma (4th generation)

FAQ

Will the ICON K53293S fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53293S provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 with billet upper control arms, triple-rate rear coil springs and 2.0 remote-reservoir rear shocks. K53293TS is the tubular-arm version.
