ICON Stage 2 Billet Overland System for 2024-2026 Toyota Tacoma

Name: ICON Stage 2 Billet Overland System for 2024-2026 Toyota Tacoma
Brand: ICON
SKU: K53292X
Price: 3799.7 USD
Availability: BackOrder

$3,799.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53292X

On backorder — ships when back in stock

Calculated shipping — oversized item
Ships when back in stock
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3 inches of front lift over stock for bigger tires and a more aggressive stance
2.5 Series front coilovers with internal reservoirs keep damping consistent and cool during hard use
Billet aluminum upper control arms with rebuildable Delta Joint PRO restore proper geometry at lift height
Billet Overland rear dual-rate coils add load capacity for gear and accessories without harsh ride
Complete standalone front-and-rear system lifts the truck on its own - no companion kit needed
Included front differential drop brackets and poly bushings protect CV angles at the new ride height
Vehicle-specific ICON tuning balances on-road comfort with off-road control

The ICON Vehicle Dynamics K53292X Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Adjustable 1.25-3 inches of front lift to clear larger wheel and tire combinations
2.5 Series front coilovers with internal reservoirs for cooler, more consistent damping under heavy use
Billet aluminum upper control arms with rebuildable Delta Joint PRO correct alignment and add clearance for the new ride height
Billet Overland rear dual-rate coils handle added accessory and gear weight while improving fender clearance
Complete standalone system - no companion lift required to achieve full lift height

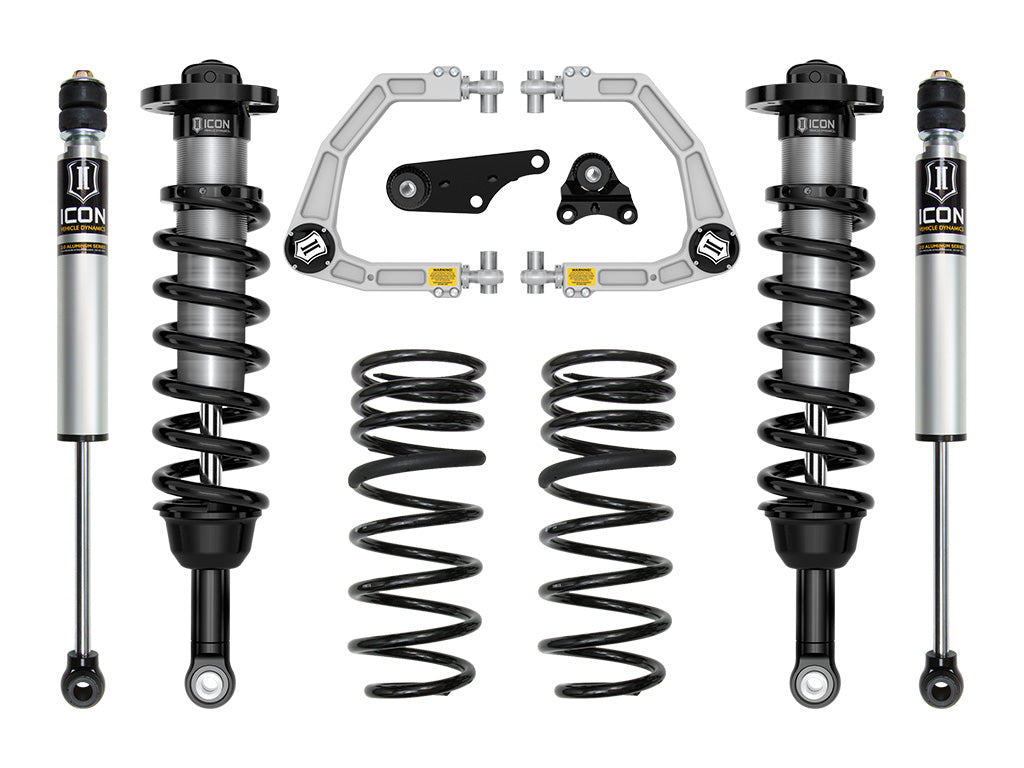

What's Included

Front 2.5 Series coilover shocks with internal reservoirs
Billet aluminum upper control arm kit with Delta Joint PRO ball joints
Front differential drop brackets and polyurethane differential mounting bushings
Rear 2.0 Aluminum Series internal-reservoir shocks
Rear Billet Overland dual-rate coil springs
Mounting hardware and fasteners

Fitment

Engineered specifically for the 4th-generation Toyota Tacoma 4WD. Not compatible with submodels equipped with rear leaf springs. The included front differential drop is required on 4WD models. An adjustable track bar is recommended but not required to recenter the rear axle.

2024-2026 Toyota Tacoma (4WD)

FAQ

Will the ICON K53292X fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2026 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53292X provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 with billet aluminum upper control arms plus Overland rear coil springs for heavy accessory loads (about 0.5 inch rear). K53292TX is the tubular-arm Overland version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

valve: non-adjustable internal reservoir (2.5 Series, vehicle-specific tuned)
series: Stage 2
diff drop: included (front, required on 4WD)
rear lift: approximately 0.5 inch (with ~600 lbs added rear weight)
drivetrain: 4WD
front lift: 1.25-3 inches adjustable over stock
rear shock: 2.0 Aluminum Series internal reservoir
standalone: yes - complete system, no companion lift required
front shock: 2.5 Series, internal reservoir, vehicle-specific tuned valving
upper control arms: billet aluminum with Delta Joint PRO (included)
application summary: 4WD models; front differential drop included
