ICON Stage 2 Coilover Suspension System 2024-2026 Toyota Tacoma

Name: ICON Stage 2 Coilover Suspension System 2024-2026 Toyota Tacoma
Brand: ICON
SKU: K53292TX
Price: 3249.7 USD
Availability: InStock

$3,249.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53292TX

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

1.25-3 inches of adjustable front lift from 2.5 Series internal-reservoir coilovers
Tubular Delta Joint PRO upper control arms add caster and front-end clearance
Overland dual-rate rear coils prevent sag under racks, tents, and bumpers
Vehicle-specific tuning blends street comfort with off-road control
6061 CNC-machined aluminum and CAD-plated shock bodies resist corrosion
Includes front diff drop brackets and polyurethane bushings for clean geometry
Lifetime guarantee against coil spring sag and breakage

The ICON Vehicle Dynamics K53292TX Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable 2.5 Series coilovers provide 1.25-3 inches of front lift over stock with internal reservoirs for superior cooling and fade resistance.
Tubular upper control arms with the serviceable Delta Joint PRO add caster, improve clearance, and allow full bump and droop travel.
Overland dual-rate rear coils resist sag from racks, tents, drawers, and steel bumpers while adding roughly 0.5 inch of rear lift.
Vehicle-specific tuning balances daily-driver comfort with off-road capability.
CNC-machined 6061 aircraft-grade aluminum components and CAD-plated shock bodies stand up to harsh conditions.

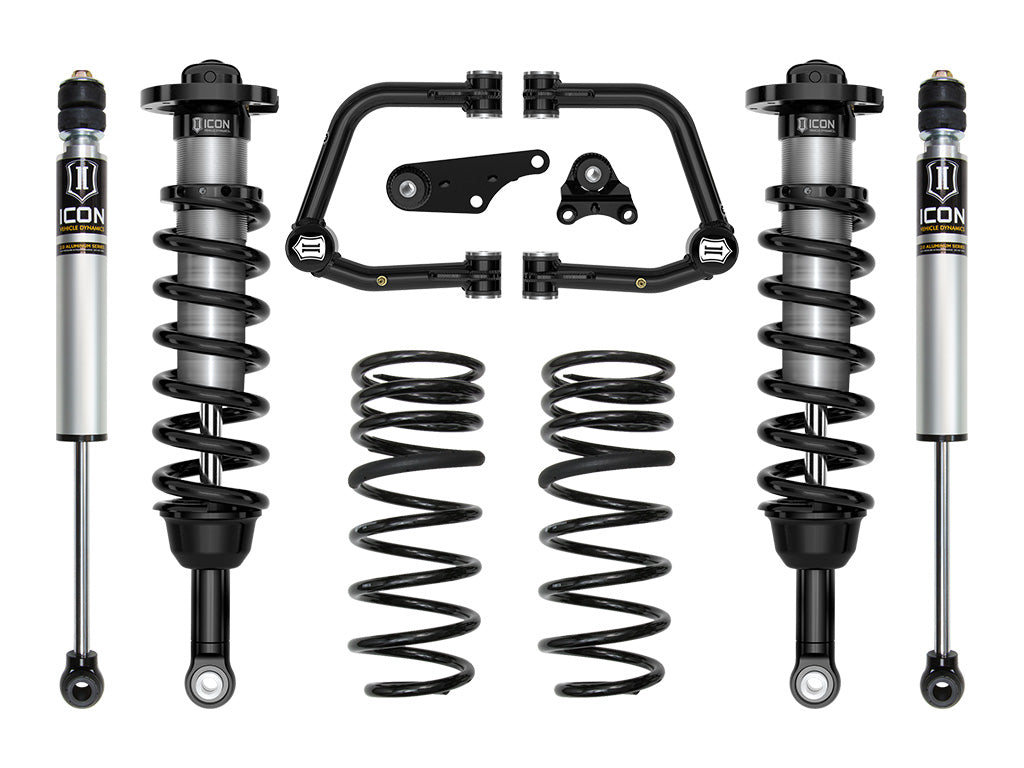

What's Included

Front 2.5 Series coilover shocks with internal reservoirs and ICON coil springs
Tubular upper control arm kit with Delta Joint PRO
Rear 2.0 Aluminum Series reservoir shocks
Overland dual-rate rear coil springs
Front differential drop brackets and polyurethane bushings
Vehicle-specific mounting hardware

Fitment

Fits the 4th-generation Toyota Tacoma. Not compatible with vehicles equipped with Adaptive Variable Suspension (AVS). 4WD models require the ICON front differential drop. ADAS recalibration is recommended after installation.

2024-2026 Toyota Tacoma (front)

FAQ

Will the ICON K53292TX fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2026 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53292TX provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 with tubular upper control arms plus Overland rear coil springs rated for roughly 600 lb of added gear (about 0.5 inch rear). K53292X is the billet-arm Overland version. ICON titles this the Tubular, Overland Rear Springs kit.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

notes: Lifetime guarantee against spring sag and breakage
stage: Stage 2
valve: manual spanner-adjustable (non-electronic, not CDCV/CDEV)
coilover: 2.5 Series, internal reservoir, manual spanner-adjustable preload (non-electronic)
rear coil: Overland dual-rate
rear lift: approximately 0.5 inch
front lift: 1.25-3 inches (adjustable)
generation: 4th gen Tacoma
coilover series: 2.5 Series internal reservoir
upper control arms: tubular Delta Joint PRO
