ICON Stage 2 Tubular Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 2 Tubular Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53292TS
Price: 3249.68 USD
Availability: InStock

$3,249.68 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53292TS

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 1.25-3 inch front lift clears larger wheel and tire setups
2.5 Series internal-reservoir coilovers resist fade on long, hot trails
Tubular upper control arms add caster and correct front-end geometry
Delta Joint PRO is serviceable and rebuildable, eliminating ball joint bind
Triple-rate rear springs deliver comfort on-road and control off-road
Front differential drop brackets prevent CV bind and maximize travel
Complete bolt-on Stage 2 package tuned front-to-rear for the 4th-gen Tacoma

The ICON Vehicle Dynamics K53292TS Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable 1.25-3 inches of front lift to fit larger wheels and tires
2.5 Series coilovers with internal reservoirs for superior heat dissipation and fade resistance
Tubular upper control arms add caster, correct geometry, and improve clearance
Serviceable, rebuildable Delta Joint PRO replaces the OE ball joint and eliminates bind
Triple-rate rear springs blend a plush ride with strong bottoming resistance
Front differential drop brackets maximize travel and prevent CV bind

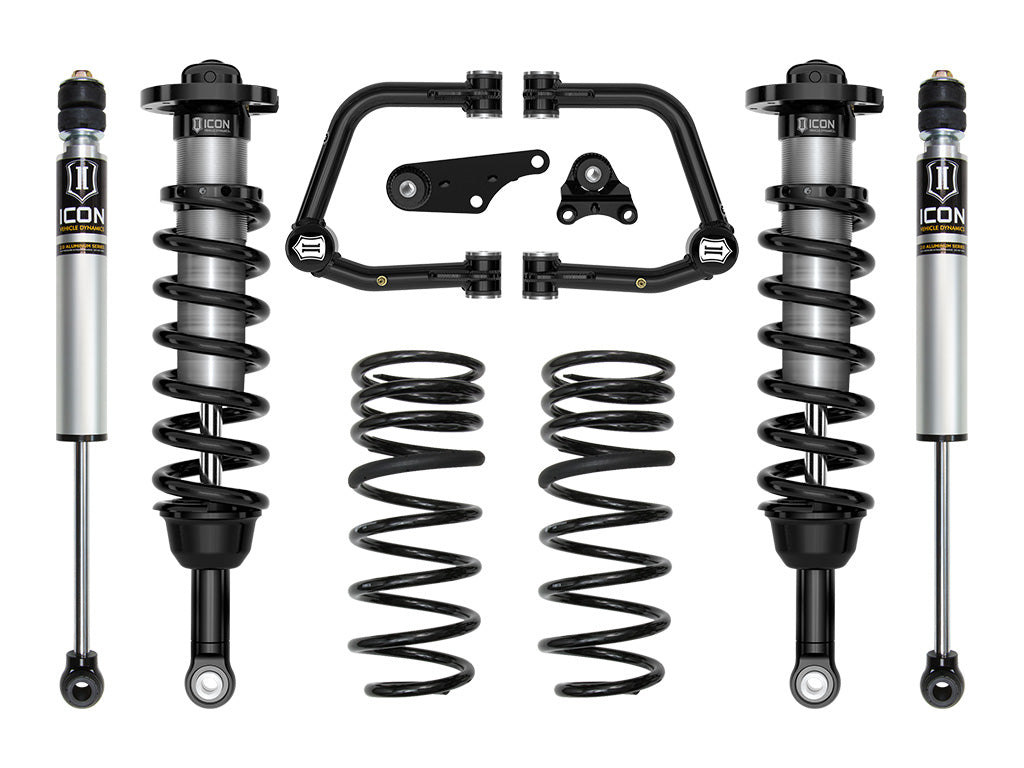

What's Included

Front 2.5 Series height-adjustable coilover shocks (pair)
Tubular upper control arm kit with ICON Delta Joint PRO
Front differential drop kit (4WD)
Rear 2.0 Aluminum Series internal reservoir shocks (pair)
Triple-rate rear coil springs

Fitment

Engineered specifically for the 4th-generation Toyota Tacoma. ADAS recalibration is required after installation; an adjustable track bar is recommended. Not compatible with vehicles equipped with Adaptive Variable Suspension.

2024-2025 Toyota Tacoma (4WD)

FAQ

Will the ICON K53292TS fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53292TS provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 with tubular upper control arms plus triple-rate rear coil springs (about 0.5 inch rear). K53292T is the same without the triple-rate springs; K53292S is the billet-arm version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2025	Toyota	Tacoma	—	Front

Specifications

stage: Stage 2
valve: non-adjustable
drivetrain: 4WD (front diff drop included)
front lift: 1.25-3 inches over stock (height adjustable)
rear shock: ICON 2.0 Aluminum Series, internal reservoir
front shock: ICON 2.5 Series coilover, internal reservoir, vehicle-specific tuned
rear spring: triple-rate coil design
front lift range: 1.25-3 in
upper control arms: tubular with Delta Joint PRO
