ICON Stage 2 Tubular Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 2 Tubular Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53292T
Price: 2473.29 USD
Availability: InStock

$2,473.29 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53292T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3 in. of front lift to fit larger, more aggressive tires
2.5 Series internal-reservoir coilovers resist heat fade on long off-road runs
Tubular upper control arms with Delta Joint PRO correct caster and add clearance
Differential drop brackets and tuned coilover lengths prevent CV bind
2.0 Aluminum Series rear reservoir shocks balance the truck front to rear
Polyurethane differential bushings limit drivetrain movement under load
Complete bolt-on front and rear system tuned specifically for the 4th-gen Tacoma

The ICON Vehicle Dynamics K53292T Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Height-adjustable 1.25-3 in. of front lift over stock to clear larger tires
2.5 Series coilovers with internal reservoirs for superior cooling and fade resistance
Tubular upper control arms with Delta Joint PRO restore caster and front-end geometry
Vehicle-specific valving balances ride quality front to rear, on-road and off
Front differential drop brackets and tuned coilover lengths prevent CV bind

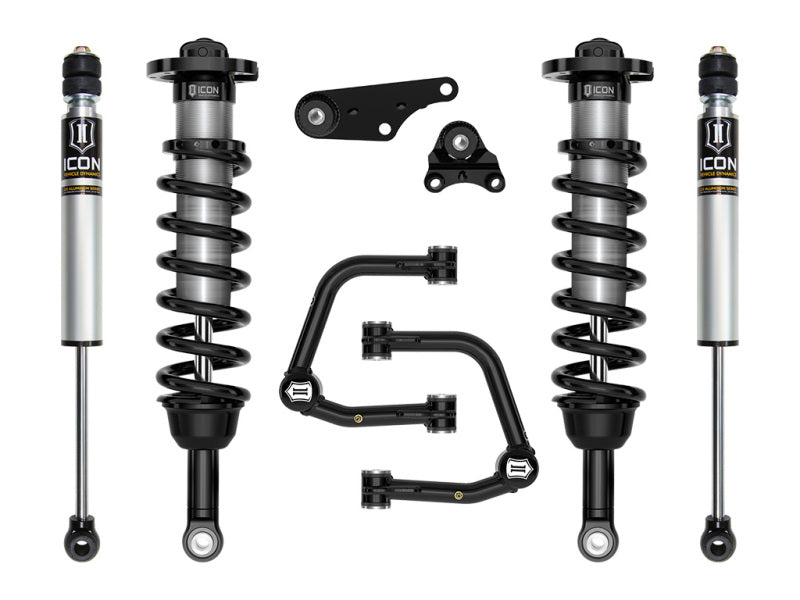

What's Included

2.5 Series front coilover shocks (height-adjustable, internal reservoir)
ICON-engineered front coil springs
Tubular upper control arm kit with Delta Joint PRO
Front differential drop brackets (for 4WD)
Polyurethane differential mounting bushings
2.0 Aluminum Series internal reservoir rear shocks

Specifications

Front lift range: 1.25 in. to 3 in. (adjustable)
Rear: compatible with 0-1 in. of rear lift over stock
Front coilover: 2.5 Series, internal reservoir, non-adjustable vehicle-specific valving
Rear shock: 2.0 Aluminum Series, internal reservoir
Upper control arm: tubular with Delta Joint PRO
Configured for 4WD models

Fitment

Engineered specifically for the 4th-generation Toyota Tacoma. This kit is configured for 4WD models. Not compatible with Adaptive Variable Suspension (AVS) equipped trucks or rear leaf-spring models, and requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation.

2024-2025 Toyota Tacoma (4WD), front and rear

FAQ

Will the ICON K53292T fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53292T provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about up to 1 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 with tubular upper control arms and the Delta Joint PRO. K53292 is the billet-arm version; K53292TS adds triple-rate rear springs.
