ICON Stage 2 2.5 Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 2 2.5 Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53292S
Price: 3799.7 USD
Availability: BackOrder

$3,799.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53292S

On backorder — ships when back in stock

Calculated shipping — oversized item
Ships when back in stock
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adds an adjustable 1.25-3in of front lift for larger tire and wheel fitment
2.5 Series front coilovers with internal reservoirs resist fade on long off-road runs
Billet aluminum upper control arms restore correct geometry and add alignment adjustment
Delta Joint PRO eliminates ball-joint bind and is fully serviceable and rebuildable
Triple-rate rear springs deliver plush on-road ride with strong bottoming resistance
2.0 Aluminum Series rear shocks tuned to balance the truck front-to-rear
Complete front-and-rear standalone system, no separate base lift required

The ICON Vehicle Dynamics K53292S Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Adjustable 1.25-3in of front lift to clear larger, more aggressive wheel and tire combinations
Vehicle-specific 2.5 Series front coilovers with internal reservoirs for superior heat management and fade resistance
Billet aluminum upper control arms correct front-end geometry and add camber/caster adjustment
ICON Delta Joint PRO replaces the OE ball joint for full travel without bind and serviceable, rebuildable life
Triple-rate rear springs balance soft on-road comfort with firm bottoming resistance off-road

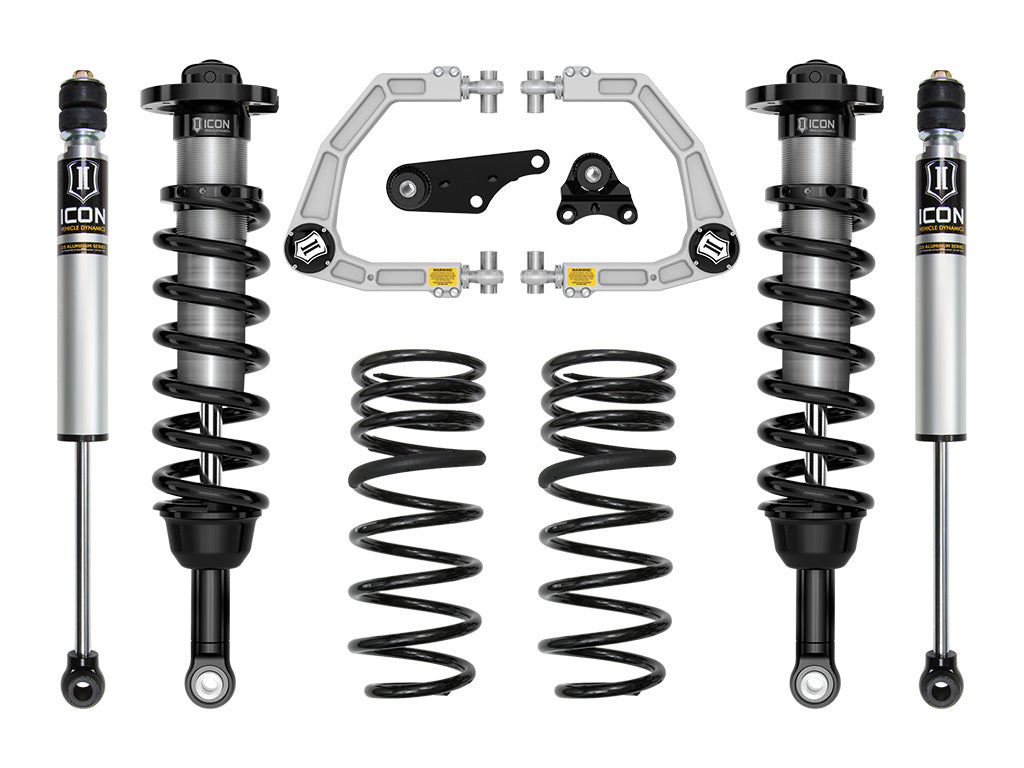

What's Included

Front 2.5 Series internal reservoir coilover shocks (pair)
Billet aluminum upper control arm kit with Delta Joint PRO
Front differential drop kit (for 4WD)
Rear 2.0 Aluminum Series internal reservoir shocks (pair)
Triple-rate rear coil springs

Fitment

Engineered specifically for the 4th-generation Toyota Tacoma. This is a complete standalone Stage 2 system that lifts the truck on its own. Not compatible with Adaptive Variable Suspension (AVS); ADAS recalibration is recommended after installation.

2024-2025 Toyota Tacoma (front)

FAQ

Will the ICON K53292S fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53292S provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about about 0.5 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

This is the billet-UCA Stage 2 with triple-rate rear coil springs for added load support (about 0.5 inch rear). K53292 is the same kit without the triple-rate rear springs; K53292TS is the tubular-arm version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2025	Toyota	Tacoma	—	Front

Specifications

valve: 2.5 Series internal reservoir coilover (non-CDCV base, manual preload adjust)
drivetrain: 4WD (configured); 2WD can omit diff drop 55160)
front lift: 1.25-3in over stock
rear shock: 2.0 Aluminum Series, internal reservoir
front shock: 2.5 Series coilover, internal reservoir
rear springs: Triple-rate
front lift range: 1.25-3 in
standalone system: Yes
upper control arms: Billet aluminum with Delta Joint PRO
