ICON Stage 2 2.5 Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 2 2.5 Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53292
Price: 2940.79 USD
Availability: BackOrder

$2,940.79 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53292

On backorder — ships when back in stock

Calculated shipping — oversized item
Ships when back in stock
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3 inch front lift to fine-tune stance and fit larger tires
2.5 Series internal-reservoir coilovers resist heat fade on long trails
Billet aluminum upper control arms restore geometry and add alignment adjustment
Serviceable Delta Joint PRO ball joint delivers full travel without bind
2.0 Series rear reservoir shocks tuned to match the front for a balanced ride
Front differential drop brackets prevent CV bind at lifted heights
Complete front-and-rear system engineered specifically for the 4th-gen Tacoma

The ICON Vehicle Dynamics K53292 Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with billet aluminum upper control arms and the Delta Joint PRO.

Key Benefits

Adjustable 1.25-3 inch front lift to dial in your exact stance and clear larger tires
2.5 Series coilovers with internal reservoirs for superior cooling and fade-free performance
Billet aluminum upper control arms correct front-end geometry and add camber and caster adjustment
Rebuildable Delta Joint PRO upper ball joint allows full travel without bind
2.0 Series rear reservoir shocks balance performance front to rear
Front differential drop brackets prevent CV bind at lifted ride heights

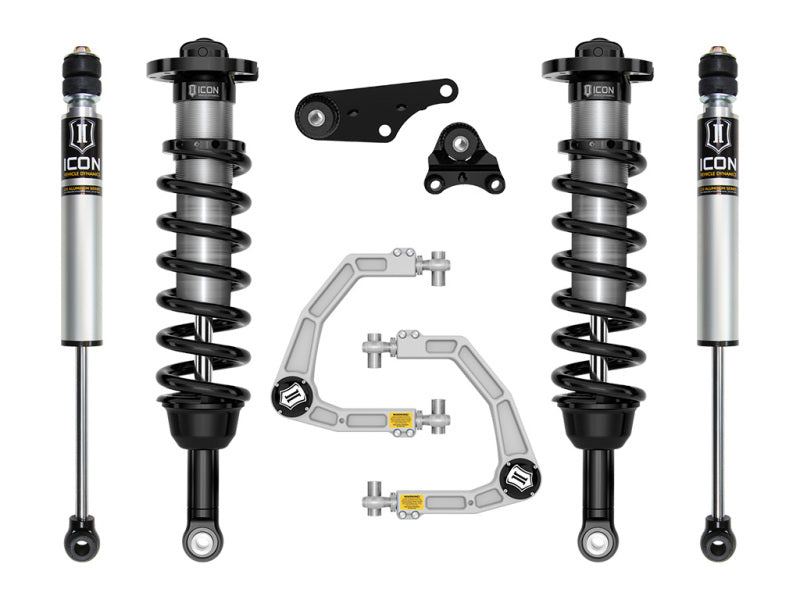

What's Included

Pair of front 2.5 Series coilover shocks with internal reservoirs and ICON-tuned springs
Billet aluminum upper control arm kit with serviceable Delta Joint PRO
Pair of rear 2.0 Aluminum Series internal-reservoir shocks
Front differential drop brackets with polyurethane differential bushings
Mounting hardware and installation instructions

Fitment

Engineered specifically for the 2024-2025 (4th generation) Toyota Tacoma 4WD. This system fits coil-spring rear models only and will not fit Tacoma submodels equipped with rear leaf springs. Not compatible with Adaptive Variable Suspension (AVS) equipped trucks. ADAS recalibration is recommended after installation.

2024-2025 Toyota Tacoma (4WD, coil-spring rear)

FAQ

Will the ICON K53292 fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53292 provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about up to 1 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 adds billet aluminum upper control arms with the Delta Joint PRO over Stage 1, keeping V.S. 2.5 Series front coilovers, 2.0 rear shocks and a front diff drop. The tubular-arm equivalent is K53292T.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2025	Toyota	Tacoma	—	Front

Specifications

valve: CDCV
drivetrain: 4WD (2WD compatible without diff drop)
front lift: 1.25 to 3 inches (adjustable)
rear shock: ICON 2.0 Aluminum Series, internal reservoir
front shock: ICON 2.5 Series coilover, internal reservoir
rear shocks: ICON 2.0 Aluminum Series, internal reservoir (0-1 inch rear lift compatible)
front shocks: ICON 2.5 Series coilover, internal reservoir, manual ride-height adjustment
configuration: 4WD (2WD installs do not require the front diff drop)
front lift range: 1.25-3 in adjustable
upper control arms: billet 6061 aluminum with Delta Joint PRO
rear lift compatible: 0-1 in
