ICON Stage 1 1.25-3in Suspension System for 2024-2025 Toyota Tacoma

Name: ICON Stage 1 1.25-3in Suspension System for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: K53291
Price: 1853.82 USD
Availability: InStock

$1,853.82 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53291

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

2.5 Series front coilovers with internal reservoirs resist heat fade on long trails
Adjustable 1.25-3 inch front lift lets you set your exact ride height
Rear 2.0 aluminum reservoir shocks deliver matched, balanced damping
Front differential drop prevents CV bind and maximizes travel on 4WD
ICON-engineered springs provide progressive, controlled performance
Clears larger tires for a more aggressive, capable stance
Direct bolt-on fit for the 4th-gen 2024-2025 Toyota Tacoma

The ICON Vehicle Dynamics K53291 Stage 1 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Tacoma (fourth generation), providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving and retains the factory upper control arms.

Key Benefits

Vehicle-specific tuned 2.5 Series front coilovers with internal reservoirs for superior heat management and consistent damping
Height-adjustable from 1.25 to 3 inches of front lift to dial in your exact stance
Rear 2.0 Aluminum Series internal reservoir shocks tuned to match the front for a balanced ride
Front differential drop brackets maximize suspension travel and prevent CV bind on 4WD models
ICON-engineered coil springs deliver controlled, progressive performance on and off road

What's Included

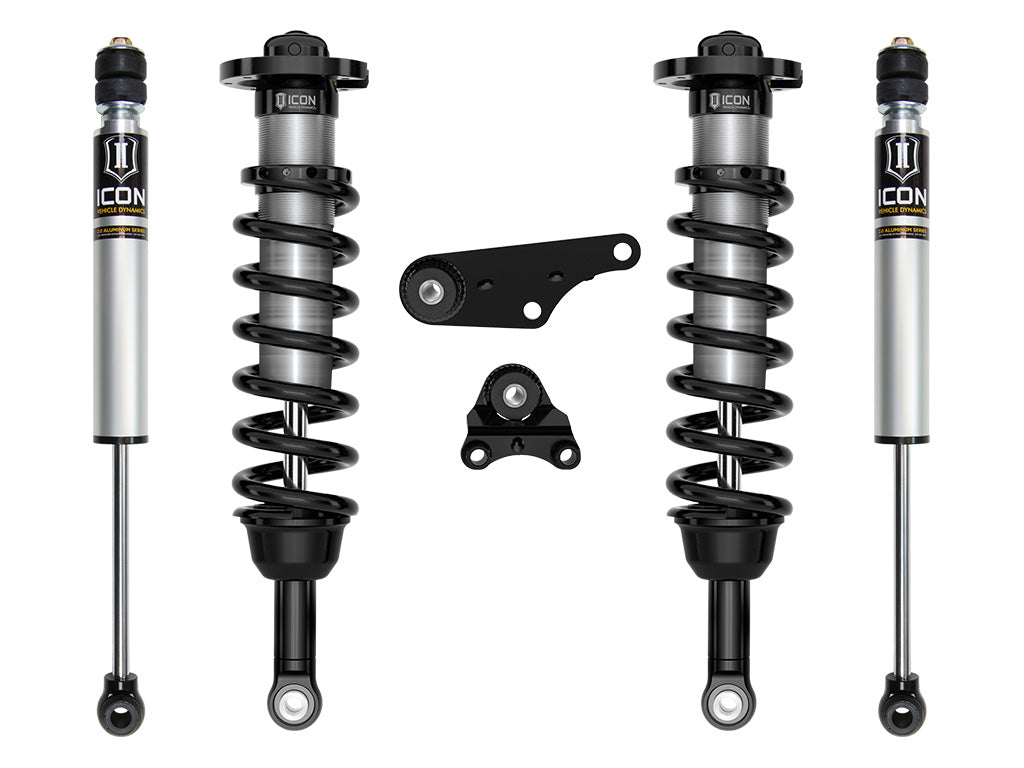

Front 2.5 Series coilover shocks (pair) with height-adjustable, internal-reservoir design
ICON-engineered front coil springs
Rear 2.0 Aluminum Series internal reservoir shocks (pair)
Front differential drop brackets with polyurethane mounting bushings (4WD)
Vehicle-specific mounting hardware

Specifications

Front lift: 1.25 to 3 inches (adjustable)
Rear lift: 0 to 1 inch
Front shocks: ICON 2.5 Series coilover, internal reservoir
Rear shocks: ICON 2.0 Aluminum Series, internal reservoir
Valving: vehicle-specific non-adjustable tuned
Drivetrain: configured for 4WD (2WD compatible without diff drop)

Fitment

Engineered for the 2024-2025 Toyota Tacoma (4th generation). ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2 inches of lift (sold separately). Not compatible with Adaptive Variable Suspension (AVS) equipped models or rear leaf-spring submodels, and the ICON front differential drop (part #55160) is required on 4WD models. ADAS recalibration is required after installation.

2024-2025 Toyota Tacoma (front and rear)

FAQ

Will the ICON K53291 fit a leaf-spring or AVS Toyota Tacoma?

No. This system fits the 2024-2025 fourth-generation Toyota Tacoma and will not fit rear leaf-spring submodels or trucks equipped with Adaptive Variable Suspension (AVS). On 4WD models the ICON front differential drop (part #55160) is required, and ADAS recalibration is required after installation.

How much lift does the ICON K53291 provide, and can the damping be adjusted?

The 2.5 Series front coilovers are height-adjustable from 1.25 to 3 inches with about up to 1 inch of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no compression-adjuster knob.

What does the Stage 1 system include, and how does it differ from the other ICON stages?

Stage 1 is the entry kit: V.S. 2.5 Series front coilovers, 2.0 Series rear shocks and a front differential drop, with no upper control arms included (ICON Delta Joint Pro upper arms are a recommended separate add-on above about 2 inches). Stage 2 and higher add ICON upper control arms.
