ICON 2.5 VS CDCV Front Coilover Kit for 2024-2025 Toyota Tacoma

Name: ICON 2.5 VS CDCV Front Coilover Kit for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: 58780C
Price: 2287.95 USD
Availability: InStock

$2,287.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58780C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CDCV single-knob adjuster with 10 hand-set compression settings
1.25-3 inches of adjustable front lift for the 2024-2025 Tacoma
2.5-inch remote-reservoir shocks for controlled, fade-free damping
ICON-engineered springs and valving for the 4th-gen Tacoma
4WD requires front diff drop #55160; UCA recommended above 2 in
Bolt-on front pair; fits 2024-2025 Tacoma

The ICON Vehicle Dynamics 58780C is a 2.5 Series VS remote-reservoir CDCV front coilover kit for the 2024-2025 Toyota Tacoma, delivering 1.25-3 inches of adjustable front lift with a 10-setting external compression adjuster.

Key Benefits

CDCV single-knob adjuster with 10 external compression settings, soft to firm
1.25-3 inches of adjustable front lift to clear larger tires
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered vehicle-specific springs and valving for the 4th-generation Tacoma
Bolt-on install in the factory front shock locations

What's Included

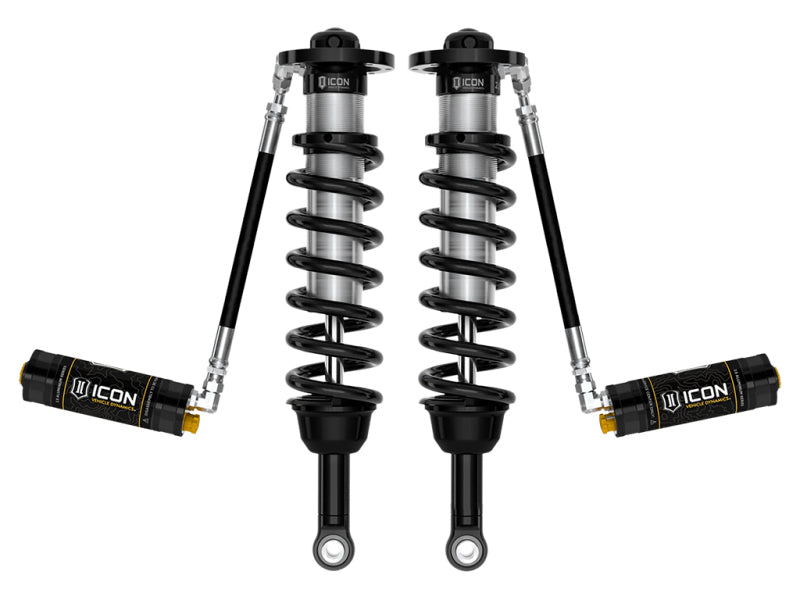

Pair of ICON 2.5 Series VS remote-reservoir CDCV front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled
Reservoir mounting hardware

Fitment

Fits the 2024-2025 Toyota Tacoma. ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift, and 4WD models require the front differential drop kit #55160 (sold separately). Does not fit the 2005-2023 (earlier-generation) Tacoma. This is the manual CDCV version; the 58780 has fixed valving.

FAQ

What does the CDCV adjuster do?

It is a single knob with 10 detented settings that lets you tune compression damping by hand from soft to firm.

How much lift does it provide?

It offers 1.25 to 3 inches of adjustable front lift over stock.

Do 4WD models need anything extra?

Yes. ICON specifies the front differential drop kit #55160 for 4WD Tacomas, sold separately.

How is the 58780C different from the 58780?

The 58780C adds a manual CDCV compression knob; the 58780 uses fixed vehicle-specific valving.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2025	Toyota	Tacoma	—	Front

Specifications

material: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
valve: CDCV
sold as: pair
valving: ICON CDCV (Compression Damping Control Valve) single-knob adjuster with 10 external compression settings
4wd note: 4WD models require front differential drop kit #55160 (sold separately)
reservoir: remote
generation: 4th gen Tacoma
lift range: 1.25-3 inches of front lift over stock
product line: 2.5 Series VS remote reservoir
mounting position: Front (sold as a pair)
upper control arms: ICON Delta Joint Pro UCA recommended above 2 in of lift
