ICON 2.5 VS RR Front Coilover Kit for 2024-2025 Toyota Tacoma

Name: ICON 2.5 VS RR Front Coilover Kit for 2024-2025 Toyota Tacoma
Brand: ICON
SKU: 58780
Price: 1975.95 USD
Availability: InStock

$1,975.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58780

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

1.25-3 inches of adjustable front lift for the 2024-2025 Tacoma
2.5-inch remote-reservoir shocks for controlled, fade-free damping
ICON-engineered springs and valving for the 4th-gen Tacoma
Fixed valving; step up to CDCV 58780C for adjustability
4WD requires front diff drop #55160; UCA recommended above 2 in
Bolt-on front pair; fits 2024-2025 Tacoma

The ICON Vehicle Dynamics 58780 is a 2.5 Series VS remote-reservoir front coilover kit for the 2024-2025 Toyota Tacoma, delivering 1.25-3 inches of adjustable front lift tuned specifically to the new Tacoma platform.

Key Benefits

1.25-3 inches of adjustable front lift to clear larger wheel and tire packages
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered vehicle-specific springs and valving for the 4th-generation Tacoma
Remote reservoirs add oil capacity and run cooler under hard use
Bolt-on install in the factory front shock locations

What's Included

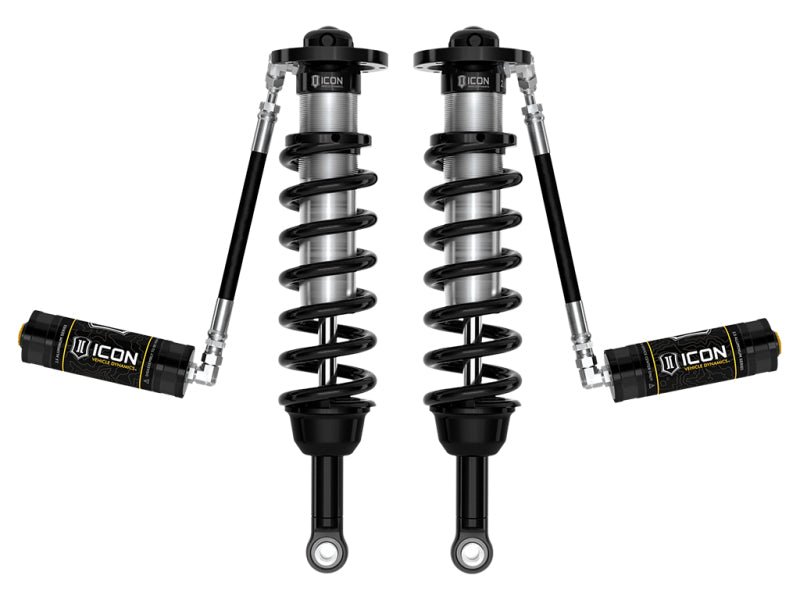

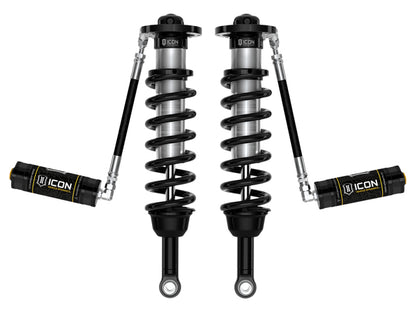

Pair of ICON 2.5 Series VS remote-reservoir front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled
Reservoir mounting hardware

Fitment

Fits the 2024-2025 Toyota Tacoma. ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift, and 4WD models require the front differential drop kit #55160 (sold separately). Does not fit the 2005-2023 (earlier-generation) Tacoma; those use the 58600/58700-series coilovers or the K530xx Stage systems. This base kit has non-adjustable valving; for a manual compression knob choose the CDCV 58780C.

FAQ

How much lift does the 58780 provide?

It offers 1.25 to 3 inches of adjustable front lift over stock.

Do 4WD models need anything extra?

Yes. ICON specifies the front differential drop kit #55160 for 4WD Tacomas, sold separately.

Is this coilover adjustable?

The 58780 uses fixed vehicle-specific valving. For a hand-adjustable compression knob, choose the CDCV 58780C.

Do I need upper control arms?

ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift to maintain proper alignment.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2025	Toyota	Tacoma	—	Front

Specifications

material: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
valve: standard non-adjustable VS (no CDCV/CDEV)
series: V.S. 2.5 Series Remote Reservoir
sold as: pair
valving: Vehicle-specific non-adjustable valving (no external knob)
4wd note: 4WD models require front differential drop kit #55160 (sold separately)
lift range: 1.25-3 inches of front lift over stock
shock body: 2.5 in
rear shocks: sold separately
mounting position: Front (sold as a pair)
upper control arms: ICON Delta Joint Pro UCA recommended above 2 in of lift
