Diode Dynamics SS6 Fog Light Kit DD7931 2024-2026 Toyota Tacoma

Name: Diode Dynamics SS6 Fog Light Kit DD7931 2024-2026 Toyota Tacoma
Brand: Diode Dynamics
SKU: DD7931
Price: 359.95 USD
Availability: InStock

$359.95 USD

Sale Sold out

Shipping calculated at checkout.

Free Shipping

SKU:DD7931

In stock

FREE shipping on this item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Replaces the 2024-2026 Tacoma factory fog lamps using the stock mounting points, no cutting or drilling
2,280 raw lumens and 13,000 candela peak per light bar, 130 lux at 10 meters
SAE fog beam pattern, 90 degrees horizontal by 10 degrees vertical, keeps light under the fog line
Patented TIR optics for higher usable output than a reflector fog housing
6000K cool white output matched to modern LED headlights
IP69K sealed for high-pressure wash and monsoon water, rated -40F to 185F
Two H11 DT adapters included: plug-and-play on the factory fog circuit and factory fog switch
Limited Lifetime Warranty, made in the USA with global materials

The Diode Dynamics SS6 LED Stage Series Fog Light Kit DD7931 replaces the factory fog lamps on the 2024-2026 Toyota Tacoma with a pair of 6-inch white SS6 light bars, and it fits every 4th-generation Tacoma trim except the Trailhunter and any truck delivered with the factory Rigid dual-color fog lights.

The 4th-gen Tacoma's bumper fog openings are wide and rectangular, so Diode Dynamics built this kit around that shape instead of sinking a round pod into a square hole. Four application-specific brackets bolt to the stock fog mounting points, the bars sit square in the opening, and two H11 DT adapters plug the Deutsch-connectorized bars straight into the truck's fog harness. Nothing is cut, nothing is drilled, no relay block needs a home, and the factory fog stalk still switches the lights.

Key Benefits

Drop-in replacement for the Tacoma's factory fog lamps on the stock mounting points, with no cutting or drilling.
2,280 raw lumens and 13,000 candela of peak intensity per bar, measured at 130 lux at 10 meters.
SAE fog beam, 90 degrees wide by 10 degrees tall, aimed to stay under the fog line rather than glare back at the driver.
Patented TIR optics push more of each LED's output into the usable beam than a reflector housing can.
6000K cool white that reads the same as a modern LED headlight instead of yellowing beside it.
IP69K sealing and a -40F to 185F operating range for pressure-wash bays, monsoon runoff and Phoenix summer heat.
Plug-and-play on the factory fog circuit through the included H11 DT adapters, so the stock fog switch keeps working.
Limited Lifetime Warranty, made in the USA with global materials.

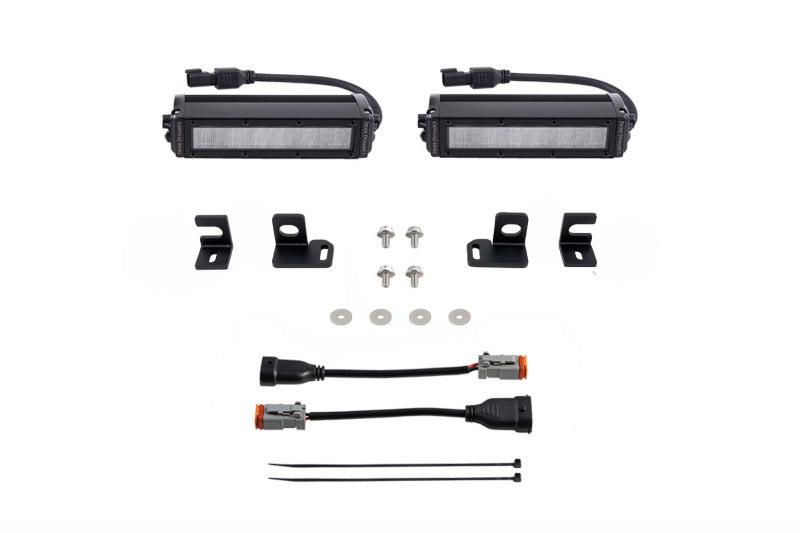

What's Included

Two 6-inch SS6 Stage Series LED light bars, white, wide SAE fog pattern
Four application-specific mounting brackets for the 2024+ Toyota Tacoma
Two H11 DT wiring adapters
Installation guide

Fitment

DD7931 fits the 2024, 2025 and 2026 Toyota Tacoma in the factory front fog-light openings. Diode Dynamics publishes no cab, bed, powertrain or transmission restriction for this kit, so XtraCab and Double Cab, 5-foot and 6-foot beds, the 2.4L turbo i-FORCE and the i-FORCE MAX hybrid, and both the 8-speed automatic and the 6-speed manual share the same bumper pocket and the same H11 fog connector. Does not fit the Tacoma Trailhunter, whose front fascia and lamp housings are different, and does not fit any Tacoma equipped with the factory Rigid dual-color fog lights, which is the hardware the TRD Pro is delivered with, so look at the bumper rather than the trim badge before ordering. Diode Dynamics lists this kit for the Tacoma only; the 2025+ 4Runner and 2024+ Land Cruiser take their own application-specific SS6 kits.

FAQ

Does DD7931 fit a Trailhunter or TRD Pro Tacoma?

No. Diode Dynamics states the kit is not compatible with the Trailhunter trim or with any Tacoma equipped with the factory Rigid dual-color fog lights, which is the fog hardware the TRD Pro is built with.

Does DD7931 work on the i-FORCE MAX hybrid Tacoma?

Yes. The only exclusions Diode Dynamics publishes are the Trailhunter fascia and Rigid dual-color fog hardware, so hybrid and non-hybrid trucks use the same brackets and the same connector.

Do I need a switch or relay harness with this kit?

No. Two H11 DT adapters are included and plug into the factory fog connectors, so the truck's own fog switch runs the SS6 bars with no added wiring.

What is the difference between DD7931 and DD7932?

DD7931 is the white 6000K kit and DD7932 is the identical bracket and adapter kit fitted with amber SS6 bars. DD7930P is the bracket pair on its own for anyone who already owns SS6 bars.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

material: Aluminum heatsink and aluminum/copper PCB with polycarbonate lens; powder-coated steel mounting brackets
finish: Powder-coated steel brackets
certifications: SAE fog beam pattern, road legal as fog lights when properly aimed, IP69K high-pressure water ingress rating
compatibility: 2024-2026 Toyota Tacoma factory fog-light openings; excludes Trailhunter and Rigid dual-color fog-equipped trucks
color: White (6000K output)
mounting: Four application-specific brackets on the factory fog mounting points; no cutting or drilling
warranty: Limited Lifetime Warranty
ip rating: IP69K, high-pressure waterproof
raw output: 2,280 lumens per light
carb status: n/a - non-emissions lighting product
beam pattern: SAE Fog / Wide, 90 degrees horizontal by 10 degrees vertical
install time: About 1-2 hours with hand tools
peak intensity: 13,000 candela per light (130 lux at 10 m)
color temperature: 6000K cool white
country of manufacture: Made in USA with global materials
