Diode Dynamics SS10 Max Stealth Lightbar Kit 24-26 Toyota Tacoma

Name: Diode Dynamics SS10 Max Stealth Lightbar Kit 24-26 Toyota Tacoma
Brand: Diode Dynamics
SKU: DD8836
Price: 979.95 USD
Availability: InStock

$979.95 USD

Sale Sold out

Shipping calculated at checkout.

Free Shipping

SKU:DD8836

In stock

FREE shipping on this item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Two 10-inch SS10 Max bars hidden behind the factory grille for a stock daytime look
15,840 raw lumens at 61 watts and 4.77 amps on 12.8 volts
6000K white combo beam at 60 by 30 degrees with patented TIR optics
CAD-designed application brackets use factory mounting points, no cutting or drilling
IP69K sealed and validated from -40 to 85 degrees C to SAE test standards
Aluminium heatsink housing with ASTM-standard powdercoat and polycarbonate lens
True amber backlight built in for accent lighting
Eight-year limited warranty, made in the USA with global materials

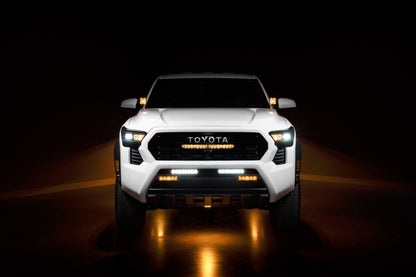

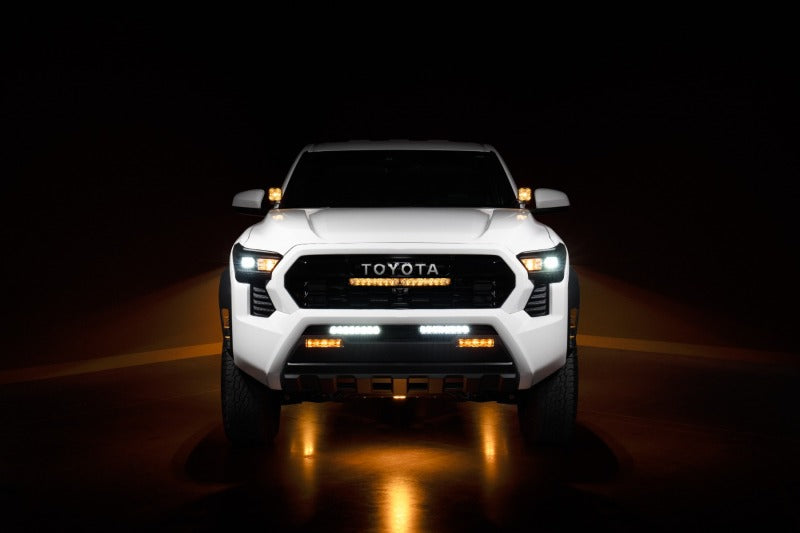

Diode Dynamics part DD8836 is the SS10 Max White Combo configuration of the Stealth Bumper Lightbar Kit for the 2024-2026 Toyota Tacoma. Two 10-inch Stage Series SS10 light bars sit behind the factory grille on CAD-designed application brackets, so the truck keeps a stock silhouette by day and gains a serious block of forward light the moment the switch is thrown.

Stealth is the whole idea. Roof bars throw glare onto the hood; bumper hoops change the truck's look. This kit hides both bars in the lower fascia and needs no cutting or drilling, though Diode Dynamics flags one install modification: "The 3 lowest Active Air Dam System shutters will be removed on each side, and not re-used. If necessary, they can be reinstalled in the future!"

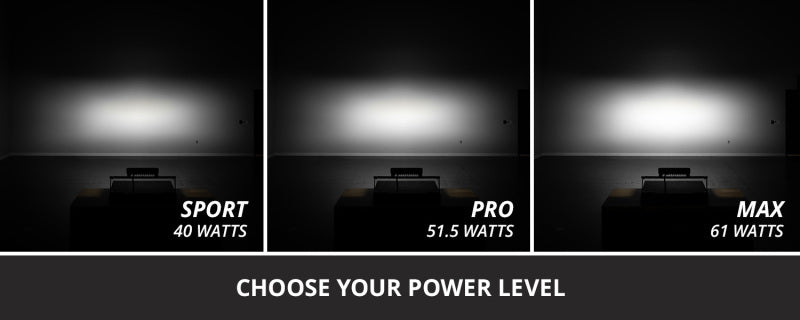

Max is the top of the three Stage Series power tiers on this bracket, built around the same Osram HX Boost emitters used in the Max SS3 and C2 2.0 pods. Diode Dynamics publishes 15,840 raw lumens and a 61-watt, 4.77-amp draw at 12.8 volts, paired here with a 6000K white combo optic at 60 by 30 degrees — spread for the near field with enough centre intensity to see down the trail. Patented TIR optics do the shaping, an aluminium heatsink under an ASTM-standard powdercoat does the cooling, and the assembly is IP69K rated and validated from -40 to 85 degrees C to SAE standards.

Key Benefits

Two 10-inch SS10 bars hidden behind the factory grille — no roof glare, no bumper hoop, stock appearance by day.
Max power tier: 15,840 raw lumens on 61 watts and 4.77 amps at 12.8 volts.
Combo beam at 60 by 30 degrees in 6000K white, shaped by patented TIR optics.
CAD-designed brackets use factory mounting points — no cutting, no drilling.
IP69K sealing, validated from -40 to 85 degrees C to SAE test standards.

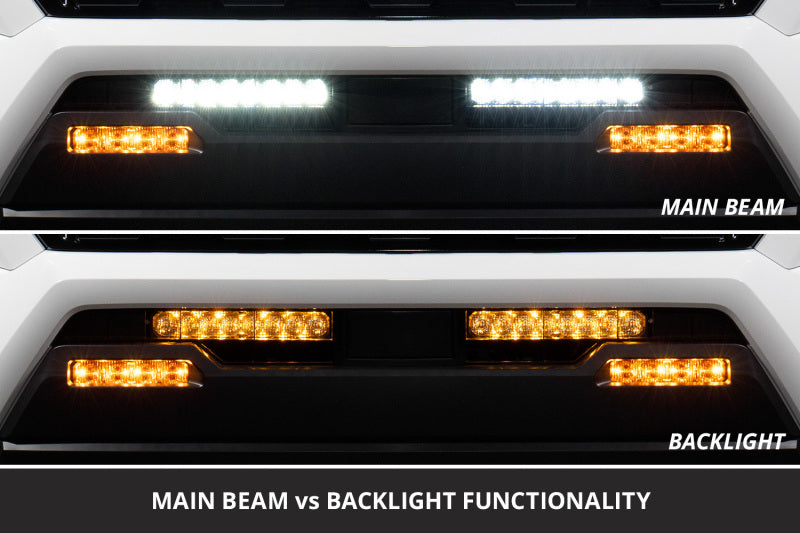

True amber backlight for a low-key accent when the mains are off.
Eight-year limited warranty; made in the USA with global materials.

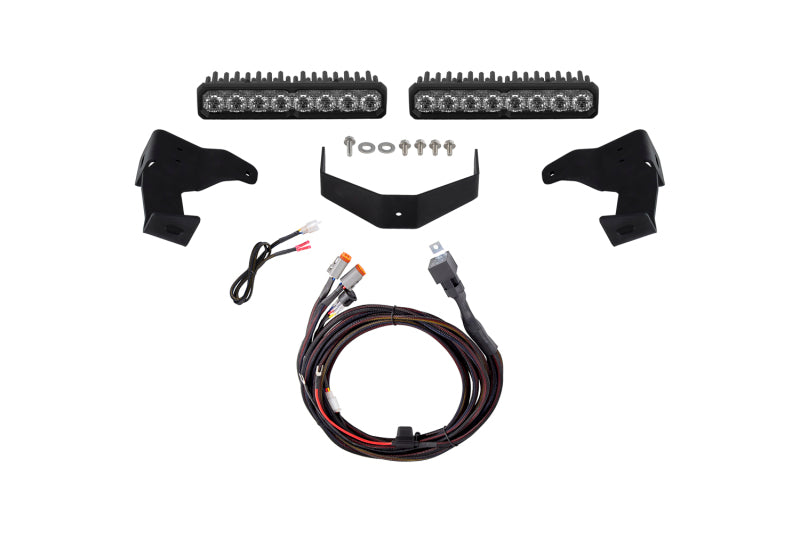

What's Included

2x 10-inch SS10 Max LED light bars, white combo
Application-specific bracket kit
Wiring harness
Mounting hardware

Fitment

Diode Dynamics lists part DD8836 for the 2024, 2025 and 2026 Toyota Tacoma, mounting behind the front grille in the lower bumper opening, and rates the install at one to two hours. Diode Dynamics publishes no trim, cab, bed, transmission or powertrain restriction for this kit. The one install caveat it does publish is the Active Air Dam System: three shutters come out per side and are not re-used, though they can be reinstalled later. It is not listed for the 2016-2023 Tacoma, the 4Runner or the Land Cruiser. DD8836 is the Max White Combo; DD8838 is Max White Driving, DD8837 is Max Yellow Combo, DD7952 and DD7950 step down to the Pro and Sport tiers, and DD7949P is the bracket kit alone.

FAQ

Does DD8836 require cutting or drilling the Tacoma bumper?

No. Diode Dynamics uses factory mounting points and states no cutting or drilling is required, but the three lowest Active Air Dam System shutters are removed per side and not re-used. They can be reinstalled later.

What is the difference between DD8836 and DD8838?

Both are SS10 Max White kits on the same brackets. DD8836 is the combo beam pattern at 60 by 30 degrees; DD8838 is the driving pattern.

How bright is the SS10 Max kit?

Diode Dynamics publishes 15,840 raw lumens for the SS10 Max White, on a 61-watt, 4.77-amp draw at 12.8 volts.

Does the kit fit a 2026 Toyota Tacoma?

Yes. Diode Dynamics lists model years 2024, 2025 and 2026.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

material: Aluminium heatsink housing, polycarbonate lens
finish: ASTM-standard powdercoat
certifications: IP69K, SAE test standards (vibration, moisture intrusion, corrosion)
compatibility: 2024-2026 Toyota Tacoma, behind the factory grille
color: 6000K white output with true amber backlight
wattage: 61 W
warranty: 8-year limited warranty
ip rating: IP69K, validated from -40 to 85 degrees C
raw lumens: 15,840 (SS10 Max White)
carb status: n/a (non-emissions part)
beam pattern: Combo, 60 by 30 degrees
current draw: 4.77 A at 12.8 V
install time: 1-2 hours; three lowest Active Air Dam shutters removed per side
color temperature: 6000K white
country of manufacture: Made in USA with global materials
