ARB Zenith Winch Bar 3423210 TXT Black for 24-26 Toyota Tacoma

Name: ARB Zenith Winch Bar 3423210 TXT Black for 24-26 Toyota Tacoma
Brand: ARB
SKU: 3423210
Price: 885.95 USD
Availability: InStock

$885.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:3423210

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Low-profile Zenith design protects approach angle without a slab-sided bar
Twin forged 8-tonne (17,637 lb) recovery points engineered into the bar
Integrated cradle takes most low-mount winches up to 12,000 lb
Compatible with factory radar ADAS, parking sensors and airbags
Removable centre grille mounts up to seven 4-inch pods or a 30-inch light bar
3mm laser-cut steel with ecoat, metal prep and satin black powder coat
Integrated forged centre bash plate plus side plates
ARB lists all eight 4th-gen Tacoma trims including Trailhunter and TRD Pro

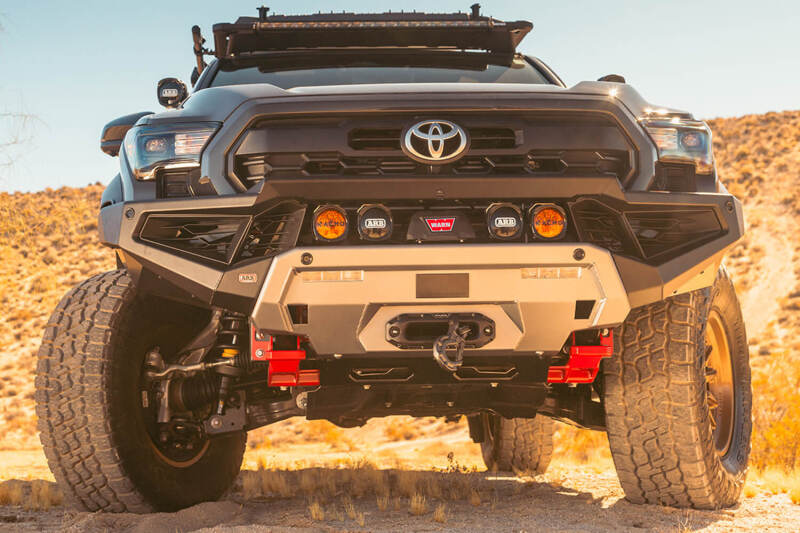

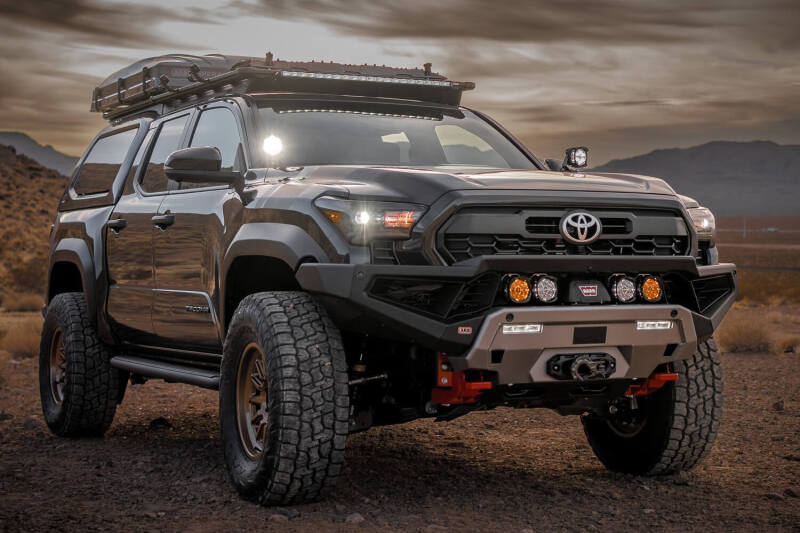

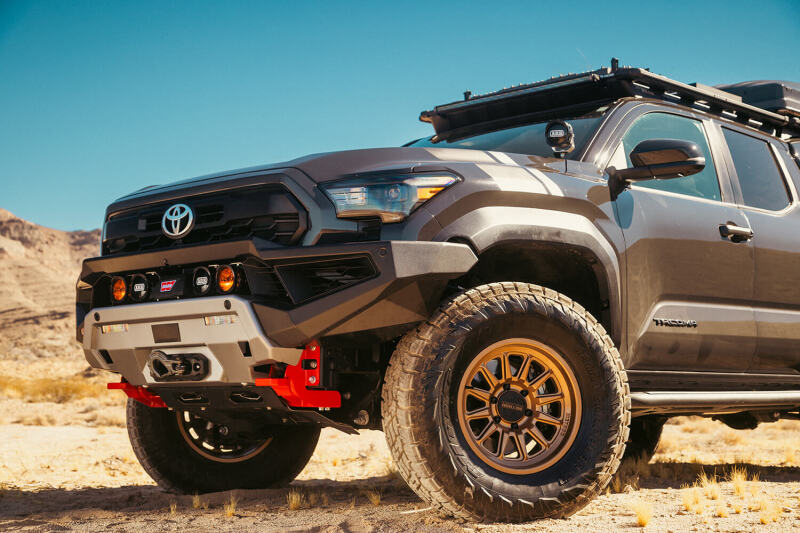

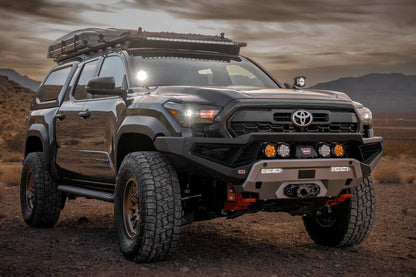

The ARB 3423210 is the Zenith winch bar for the 2024-2026 Toyota Tacoma, finished in ARB TXT satin black and listed by ARB for every 4th-gen trim from SR through Trailhunter and TRD Pro.

Zenith is ARB's low-profile bar program, and the profile is the point. Earlier generations of touring bar bolted a tall steel wall to the front of the truck; Zenith is laser-cut and formed to sit closer to the factory bodyline, which keeps approach angle and airflow honest without pretending the truck is stock.

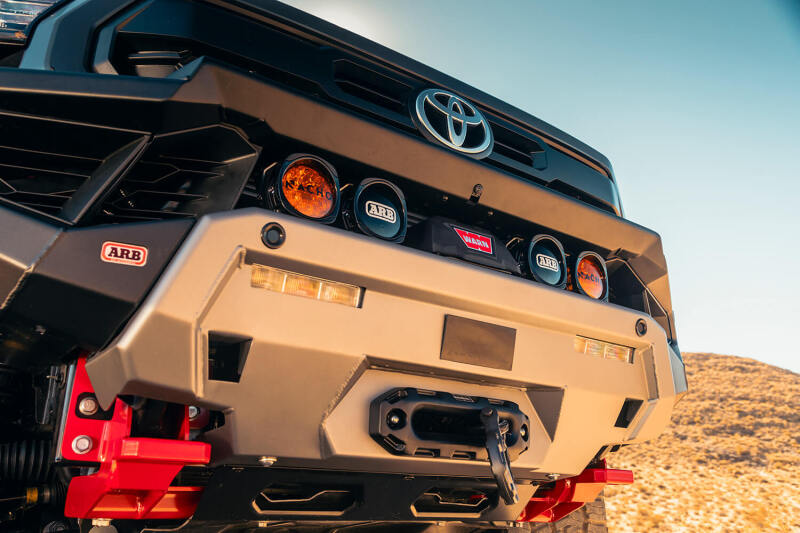

Recovery is engineered in rather than bolted on. ARB integrates twin recovery points rated to 8 tonnes, or 17,637 lb, The winch cradle takes most low-mount winches up to 12,000 lb.

On a 2024+ Tacoma, the electronics question decides whether a bar is usable at all. ARB lists the Zenith as compatible with the factory radar ADAS, the parking sensors, and the airbag system, and it accommodates the OE fog lights through dual apertures on applicable models, relocating the radar where the design requires it.

Key Benefits

Low-profile Zenith design keeps the bar close to the factory bodyline instead of adding a slab of frontal area.
Twin forged recovery points rated to 8 tonnes (17,637 lb), shaped so soft shackles are not cut and bow shackles do not point-load.
Integrated winch cradle takes most low-mount winches up to 12,000 lb.
Compatible with factory radar ADAS, parking sensors and airbag systems, so driver aids keep working after the swap.
Removable centre grille opens up mounting for up to seven 4-inch pods or a light bar up to 30 inches.
3mm laser-cut and formed steel, ecoated, metal-prepped and satin-black powder coated for corrosion resistance.

What's Included

Zenith winch bar in TXT satin black
Integrated bash plates - one heavy forged centre piece and side bash plates

Fitment

ARB lists the Zenith winch bar for the 2024, 2025 and 2026 Toyota Tacoma across all eight trims: SR, SR5, TRD PreRunner, TRD Sport, TRD Off-Road, Limited, Trailhunter and TRD Pro. This is one of the few 4th-gen front bars that ARB does not gate away from Trailhunter and TRD Pro.

ARB does not list this bar for the 2025+ 4Runner or the 2024+ Land Cruiser 250, so it is a Tacoma-only part despite the shared TNGA-F platform.

2024-2026 Toyota Tacoma - SR, SR5, TRD PreRunner, TRD Sport, TRD Off-Road, Limited, Trailhunter, TRD Pro

FAQ

Does the ARB Zenith bar fit a Tacoma Trailhunter or TRD Pro?

Yes. ARB lists the Zenith winch bar for all eight 2024-2026 Tacoma trims, Trailhunter and TRD Pro included.

Will the factory radar and parking sensors still work?

Yes. ARB lists the Zenith as compatible with the factory radar ADAS, parking sensors and airbag systems, and it relocates the radar where the design requires it.

Does ARB 3423210 include the vehicle-specific fitting kit?

Not in this part number. In the supplier catalogue 3423210 is the TXT Black bar on its own; the vehicle-specific fitting kit (ARB 6178713) and the underbody bash plate kit (ARB 6178714) carry their own part numbers, and 3423210B is ARB's bundled kit that includes them. Order the fitting kit with the bar, or ask us for the 3423210B bundle, before you book the install.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Tacoma	—	Front

Specifications

material: 3mm laser-cut and formed steel with integrated forged bash plates
finish: Ecoat and metal prep base under TXT satin black powder coat
range: ARB Zenith
winch: integrated cradle, most low-mount winches up to 12,000 lb
lighting: removable centre grille accepts up to seven 4-inch pod lights or a light bar up to 30 inches
warranty: 3-year
carb status: n/a (non-emissions part)
driver aids: compatible with factory radar ADAS, parking sensors and airbag systems
recovery points: two, rated 8 tonnes / 17,637 lb, forged
