ICON Stage 1 0-3in Suspension System for 96-02 Toyota 4Runner

Name: ICON Stage 1 0-3in Suspension System for 96-02 Toyota 4Runner
Brand: ICON
SKU: K53131
Price: 1909.65 USD
Availability: InStock

$1,909.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53131

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 2.5 VS Series front coilovers deliver 0-3 inches of lift
Increased wheel travel and ride quality over the factory suspension
Vehicle-specific tuning reduces body roll and sharpens handling
Matched 2.0 Aluminum Series rear shocks complete the system
Fully rebuildable and revalveable for long-term serviceability
FK rod end bearings and CNC-machined aluminum for durability
Bolt-on design for a straightforward, hardware-included install
Clears up to 33-inch tires for a more aggressive stance

The ICON K53131 Stage 1 Suspension System is a complete bolt-on kit for the 1996-2002 Toyota 4Runner, pairing height-adjustable 2.5 VS Series front coilovers (0-3 inches of lift) with 2.0 Aluminum Series rear shocks and retaining the factory upper control arms.

Key Benefits

Height-adjustable front coilovers provide 0 to 3 inches of lift to clear larger, more aggressive tires
Increased wheel travel and ride quality over stock both on and off the pavement
Vehicle-specific tuned damping reduces body roll and improves control
Fully rebuildable and revalveable shocks protect your investment for the long haul
Bolt-on design installs with hand tools for a straightforward upgrade

What's Included

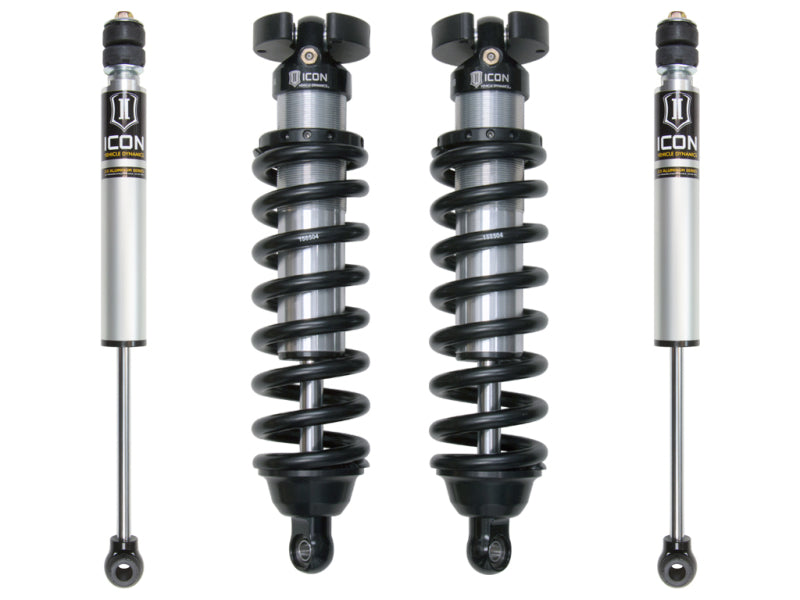

Pair of 2.5 VS Series front coilovers with ICON-engineered coil springs
Pair of 2.0 Aluminum Series rear shocks
FK rod end bearings and CNC-machined aluminum components
Vehicle-specific mounting hardware

Specifications

Front lift: 0-3 inches (adjustable)
Front: 2.5 VS Series coilovers
Rear: 2.0 Aluminum Series shocks
Position: Front coilovers plus rear shocks (complete system)
Rebuildable and revalveable
Recommended max tire: 33 x 11.50 (trimming may be required for larger)

Fitment

Direct bolt-on fitment for the 1996-2002 Toyota 4Runner (3rd generation), 4WD and 2WD. This is a standalone Stage 1 system; no aftermarket upper control arms are required at this lift height.

1996-2002 Toyota 4Runner

FAQ

Does the ICON K53131 require aftermarket upper control arms?

No. Stage 1 (K53131) pairs 2.5 VS front coilovers (0-3 inches adjustable) with 2.0 rear shocks and works with the factory upper control arms.

Does the ICON K53131 fit a 2003 or newer 4Runner?

No. It fits the 1996-2002 third-generation 4Runner only. The 2003 and newer 4Runner uses a different ICON system.

How do the 96-02 4Runner ICON stages differ?

Stage 1 (K53131) is coilovers plus rear shocks. Stage 2 (K53132) adds Delta Joint tubular upper control arms. Stage 3 (K53133) adds remote-reservoir coilovers and a 1-inch rear coil kit. Stage 5 (K53135) adds CDCV adjustable coilovers.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996	Toyota	4Runner	—	Front
1996	Toyota	4Runner	—	Rear
1997	Toyota	4Runner	—	Front
1997	Toyota	4Runner	—	Rear
1998	Toyota	4Runner	—	Front
1998	Toyota	4Runner	—	Rear
1999	Toyota	4Runner	—	Front
1999	Toyota	4Runner	—	Rear
2000	Toyota	4Runner	—	Front
2000	Toyota	4Runner	—	Rear
2001	Toyota	4Runner	—	Front
2001	Toyota	4Runner	—	Rear
2002	Toyota	4Runner	—	Front
2002	Toyota	4Runner	—	Rear
