ICON 2.5 VS Front Coilover Kit for 96-04 Toyota Tacoma/4Runner

Name: ICON 2.5 VS Front Coilover Kit for 96-04 Toyota Tacoma/4Runner
Brand: ICON
SKU: 58610
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58610

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life

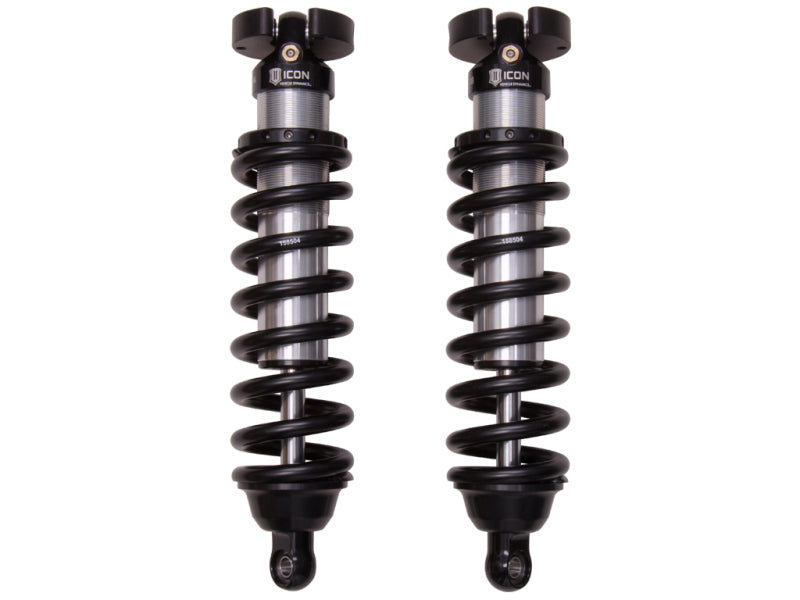

The ICON Vehicle Dynamics 58610 is a Vehicle Specific (V.S.) 2.5 Series front coilover kit for the 1996-2002 Toyota 4Runner and 1996-2004 Toyota Tacoma.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Fitment

Fits the following applications, verified for ICON part number 58610: 1996-2002 Toyota 4Runner, 1996-2004 Toyota Tacoma. Standard-travel version tuned for the stock upper control arms; the extended-travel version (requires aftermarket UCAs) is ICON 58615. Does not fit 2WD 5-lug Tacoma models. Designed to run with the factory front upper control arms. For a high-clearance long-travel build choose the extended-travel ICON 58615 instead. Front kit only where applicable; rear shocks and any required control arms are sold separately.

1996-2002 Toyota 4Runner
1996-2004 Toyota Tacoma

FAQ

How much lift do the 58610 coilovers provide?

They offer 0-3 inches of adjustable front lift via the threaded lower spring seat.

Do I need aftermarket upper control arms?

No — 58610 is the standard-travel kit tuned to run with the factory upper control arms. The extended-travel 58615 requires aftermarket UCAs.

Are these electronically adjustable?

No. They use ICON's non-adjustable Vehicle Specific (V.S.) valving — there is no CDCV knob or CDEV electronic controller.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996–2002	Toyota	4Runner	—	Front
1996–2004	Toyota	Tacoma	—	Front

Specifications

valve: CDCV
series: 2.5 VS (Vehicle Specific)
valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
reservoir: internal, 250 PSI nitrogen
lift range: 0-3 in adjustable
shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
rebuildable: yes
front lift range: 0-3 inches
mounting position: Front (sold as a pair)
controller required: no
shock body diameter: 2.5 in
