ICON 2.5 VS CDCV Coilover Kit for 96-02 Toyota 4Runner

Name: ICON 2.5 VS CDCV Coilover Kit for 96-02 Toyota 4Runner
Brand: ICON
SKU: 58716C
Price: 2204.75 USD
Availability: InStock

$2,204.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58716C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

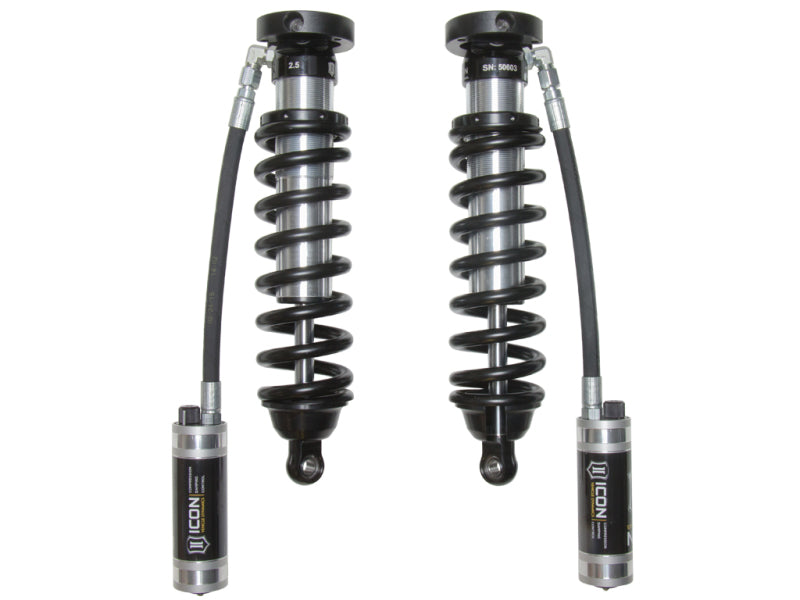

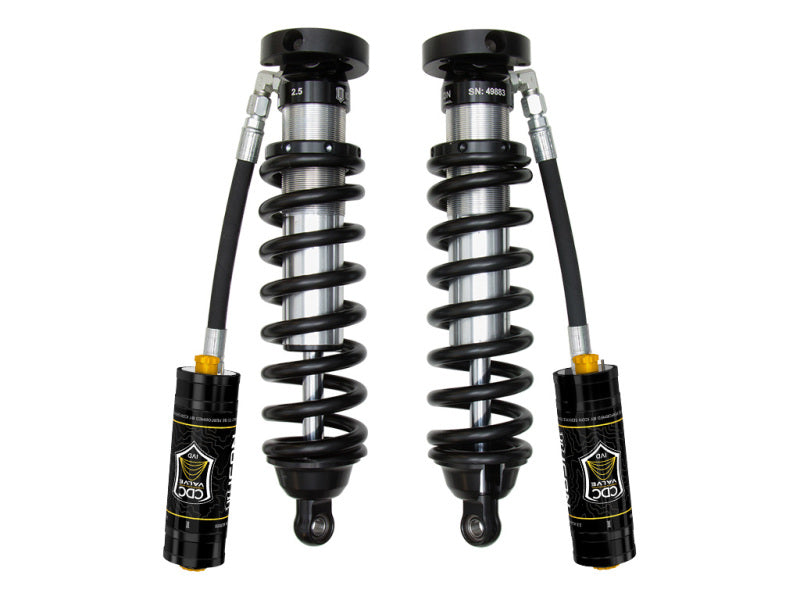

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir CDCV front coilover kit (MPN 58716C) is a bolt-in front suspension upgrade for the 1996-2002 Toyota 4Runner, providing 0-3 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 settings from soft to firm for improved ride quality and control on-road and off.

Key Features

Provides 0-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of preassembled CDCV coilovers with 700 lb/in coil springs.

Fitment

This kit is a direct front-suspension fit for 1996-2002 Toyota 4Runner. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58716C provide?

It provides 0-3 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58716C requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996–2002	Toyota	4Runner	—	Front

Specifications

material: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and a 7/8-inch induction-hardened, chrome-plated shaft
valve: CDCV
series: 2.5 VS Extended Travel
travel: Extended travel
damping: CDCV manual compression adjuster with 10 settings from soft to firm
sold as: front pair
reservoir: remote reservoir
lift range: 0-3 in
rear shocks: not included
spring rate: 700 lb/in
ucas required: aftermarket upper control arms required, sold separately
front lift range: 0-3 inches of front lift
mounting position: Front (sold as a pair)
adjustment settings: 10
