ICON

ICON 2.5 VS Ext Travel Coilover Kit for 96-04 Tacoma 4Runner

Name: ICON 2.5 VS Ext Travel Coilover Kit for 96-04 Tacoma 4Runner
Brand: ICON
SKU: 58615
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58615

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life

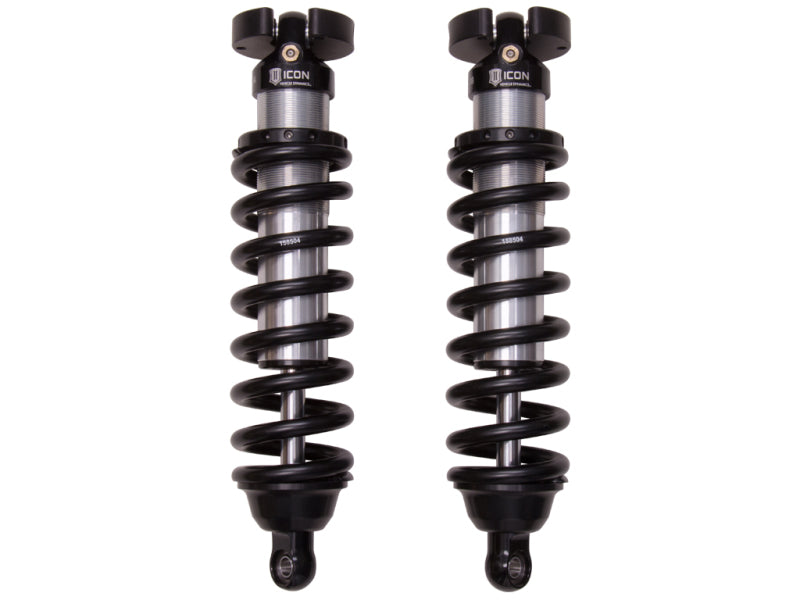

The ICON Vehicle Dynamics 58615 is a Vehicle Specific (V.S.) 2.5 Series extended-travel front coilover kit for the 1996-2002 Toyota 4Runner and 1996-2004 Toyota Tacoma.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Fitment

Fits the following applications, verified for ICON part number 58615: 1996-2002 Toyota 4Runner, 1996-2004 Toyota Tacoma. Extended-travel version that requires aftermarket upper control arms; the standard-travel kit for stock UCAs is ICON 58610. Does not fit 2WD 5-lug Tacoma models. The extended-travel length requires aftermarket front upper control arms (sold separately). If you are keeping the factory upper control arms, choose the standard-travel ICON 58610 instead. Front kit only where applicable; rear shocks and any required control arms are sold separately.

1996-2002 Toyota 4Runner
1996-2004 Toyota Tacoma

FAQ

Do the 58615 coilovers need aftermarket upper control arms?

Yes. This is the extended-travel kit; aftermarket front upper control arms are required to reach full travel and protect the ball joints.

What is the difference between 58610 and 58615?

58610 is standard travel for stock upper control arms; 58615 is the extended-travel version that requires aftermarket UCAs for maximum wheel travel.

How much lift do they provide?

0-3 inches of adjustable front lift.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996–2002	Toyota	4Runner	—	Front
1996–2004	Toyota	Tacoma	—	Front

Specifications

valve: VS (Variable Speed, non-adjustable)
sold as: front pair
valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
reservoir: Internal reservoir (IR)
lift range: 0-3 in
shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
product line: ICON Vehicle Specific (V.S.) 2.5 Series
front lift range: 0-3 inches
recommended tire: 33 x 11.50 in
mounting position: Front (sold as a pair)
spring rate option: 700 lb/in expedition coil available
requires aftermarket uca: Yes
