ICON Stage 3 2.5 VS Suspension System for 96-02 Toyota 4Runner

Name: ICON Stage 3 2.5 VS Suspension System for 96-02 Toyota 4Runner
Brand: ICON
SKU: K53133
Price: 2605.04 USD
Availability: InStock

$2,605.04 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53133

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 3 system: front coilovers, rear shocks, rear coil kit, and upper control arms in one package
0-3 inches of adjustable front lift to dial in your stance and clearance
2.5 VS Series remote-reservoir coilovers run cooler for consistent damping on long trails
Increased wheel travel and reduced body roll over the factory suspension
Tubular upper control arms with Delta Joints correct alignment geometry at lift height
Fully rebuildable and revalveable shocks for long-term serviceability
Bolt-on installation with vehicle-specific tuning out of the box

The ICON K53133 Stage 3 Suspension System is a complete bolt-on kit for the 1996-2002 Toyota 4Runner, combining 2.5 VS Series remote-reservoir front coilovers (0-3 inches of lift), tubular Delta Joint upper control arms, 2.0 Aluminum Series rear shocks, and a 1-inch rear coil kit.

Key Benefits

0-3 inches of front lift, fully adjustable via the coilover spring preload
2.5 VS Series remote-reservoir coilovers add fluid capacity for cooler, more consistent damping on long trails
Increased wheel travel and reduced body roll over stock for better control on and off road
Tubular upper control arms with ICON Delta Joints correct geometry at lift height and resist contamination better than rubber bushings
Fully rebuildable and revalveable shocks protect your long-term investment

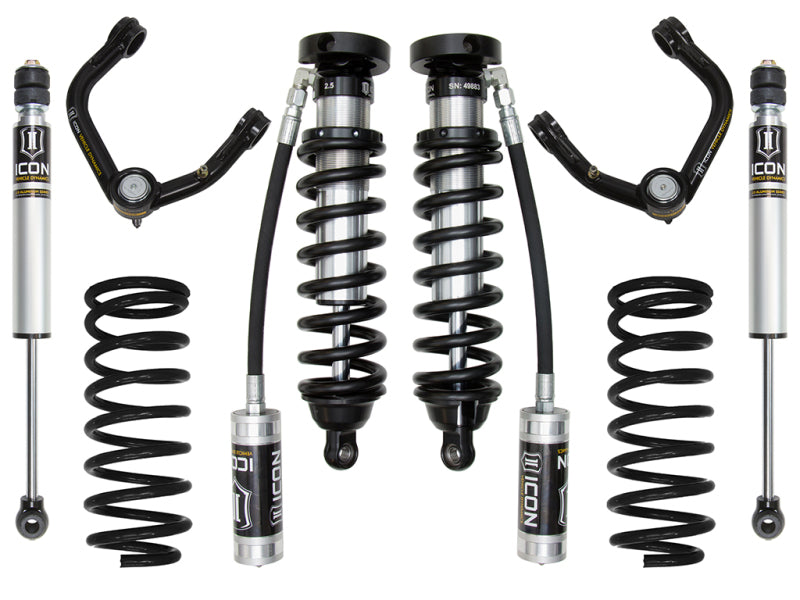

What's Included

Front 2.5 VS Series Extended-Travel Remote-Reservoir Coilovers (pair)
Tubular Steel Upper Control Arms with ICON Delta Joints (pair)
Rear 2.0 Aluminum Series Shocks (pair)
Rear Coil Kit providing 1 inch of rear lift

Specifications

Front lift: 0-3 inches (adjustable)
Rear lift: 1 inch
Front damping: 2.5 VS Series, vehicle-specific valving, remote reservoir
Rear damping: 2.0 Aluminum Series
Upper control arms: tubular steel with Delta Joints (included)
Recommended max tire: 33x11.50

Fitment

Engineered specifically for the 1996-2002 Toyota 4Runner (front and rear). The tubular upper control arms are included in this system. Remote-reservoir brackets may interfere with some aftermarket bumper mounts or washer-fluid bottles; verify clearance during installation.

1996-2002 Toyota 4Runner

FAQ

What does the ICON K53133 add over the Stage 2 kit?

Stage 3 (K53133) upgrades to 2.5 VS remote-reservoir front coilovers and adds a 1-inch rear coil kit, on top of the tubular Delta Joint upper control arms and rear shocks. It provides 0-3 inches of adjustable front lift.

Does the ICON K53133 fit a 2003 or newer 4Runner?

No. It fits the 1996-2002 third-generation 4Runner only. The 2003 and newer 4Runner uses a different ICON system.

Are the ICON K53133 coilovers adjustable in damping?

No. The coilovers are height-adjustable but use non-adjustable vehicle-specific damping. The Stage 5 K53135 adds CDCV compression adjustment.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996	Toyota	4Runner	—	Front
1996	Toyota	4Runner	—	Rear
1997	Toyota	4Runner	—	Front
1997	Toyota	4Runner	—	Rear
1998	Toyota	4Runner	—	Front
1998	Toyota	4Runner	—	Rear
1999	Toyota	4Runner	—	Front
1999	Toyota	4Runner	—	Rear
2000	Toyota	4Runner	—	Front
2000	Toyota	4Runner	—	Rear
2001	Toyota	4Runner	—	Front
2001	Toyota	4Runner	—	Rear
2002	Toyota	4Runner	—	Front
2002	Toyota	4Runner	—	Rear
