ICON Stage 7 Suspension System for 2024-2025 Toyota Land Cruiser 250

Name: ICON Stage 7 Suspension System for 2024-2025 Toyota Land Cruiser 250
Brand: ICON
SKU: K53367T
Price: 5547.65 USD
Availability: InStock

$5,547.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53367T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front-and-rear suspension system tuned specifically for the 2024-2025 Land Cruiser 250 Series
Adjustable 1.25-3in front lift clears larger, more aggressive wheel and tire setups
ICON Vehicle Specific (V.S.) valving is tuned for street, rocks, and desert control
Remote-reservoir 2.5 Series coilovers resist heat fade during sustained hard use
Tubular upper control arms with Delta Joint Pro correct geometry and add caster
Matched 2in rear package with billet adjustable track bar levels the stance
Includes front differential drop for maximum usable wheel travel

The ICON Vehicle Dynamics K53367T Stage 7 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Land Cruiser 250 Series, providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Front VS 2.5 Series coilovers with remote reservoirs deliver 1.25-3in of adjustable front lift for larger wheel and tire combinations.
ICON's Vehicle Specific (V.S.) valving is tuned for balanced control from street to rock crawling to high-speed desert running, with no external adjuster.
Remote reservoirs add shock oil volume and heat dissipation to resist fade under sustained hard use.
Tubular upper control arms with Delta Joint Pro restore correct front-end geometry, add caster, and improve component clearance.
Matched rear package levels the stance with 2in of rear lift and balanced front-to-rear valving.

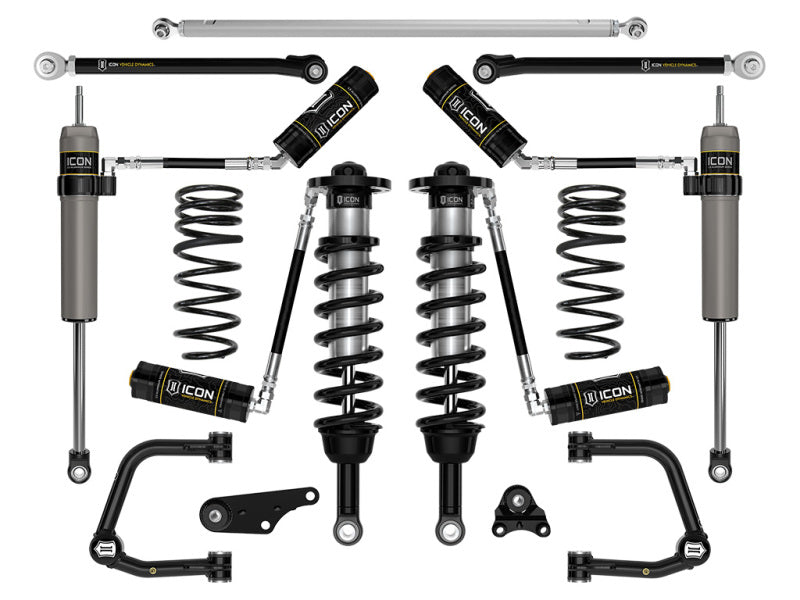

What's Included

Pair of front V.S. 2.5 Series remote-reservoir coilovers
Tubular upper control arm kit with Delta Joint Pro
Front differential drop kit
Pair of rear 2.5 Aluminum Series remote-reservoir shocks
Dual-rate rear coil springs
Billet adjustable rear track bar
Tubular rear lower links

Specifications

Stage: 7 (Tubular UCA)
Front lift: 1.25-3in adjustable
Rear lift: 2in
Front shock: V.S. 2.5 Series remote reservoir (non-adjustable)
Rear shock: 2.5 Aluminum Series remote reservoir
Valve type: V.S. Vehicle Specific (non-adjustable)
Position: Front and rear (complete system)

Fitment

Engineered specifically for the 2024-2025 Toyota Land Cruiser 250 Series. This is a complete standalone lift system; no separate aftermarket lift is required. Advanced Driver Assistance Systems (ADAS) recalibration is required after installation.

2024-2025 Toyota Land Cruiser (250 Series)

FAQ

Does the ICON K53367T also fit a Lexus GX550?

No. It is engineered for the 2024-2025 Toyota Land Cruiser (250 Series) only; the Lexus GX550 uses separate ICON part numbers (for example K53352T and K53353T) with a different differential drop and tire clearance. On 4WD the Land Cruiser 250 kit uses ICON diff drop part #55160, and ADAS recalibration is required after installation.

How much lift does the ICON K53367T provide, and is the damping adjustable?

It provides 1.25 to 3 inches of adjustable front lift and about 2 inches of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no external adjuster.

What does the Stage 7 system include, and how does it differ from the other ICON stages?

Stage 7 is the most complete Land Cruiser 250 system: tubular upper control arms, 2.5 Series remote-reservoir front coilovers, 2.5 Aluminum Series remote-reservoir rear shocks, a billet adjustable rear track bar and tubular rear lower links, all using ICON's non-adjustable V.S. valving.
