ICON Stage 5 Suspension System for 2024-2025 Land Cruiser 250

Name: ICON Stage 5 Suspension System for 2024-2025 Land Cruiser 250
Brand: ICON
SKU: K53365T
Price: 4648.21 USD
Availability: InStock

$4,648.21 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53365T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

V.S. 2.5 Series remote-reservoir front coilovers with ICON-tuned Vehicle Specific valving
Adjustable 1.25-3 inches of front lift to clear up to 34-inch tires
Tubular upper control arms with serviceable Delta Joint PRO for corrected geometry and added caster
Dual-rate rear coil springs blend on-road comfort with off-road bottoming resistance
Remote-reservoir rear shocks resist heat and fade on long trail days
Front differential drop kit maintains proper CV axle angles at lift height
Complete front-and-rear system engineered specifically for the 250 Series

The ICON Vehicle Dynamics K53365T Stage 5 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Land Cruiser 250 Series, providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

V.S. 2.5 Series front coilovers with remote reservoirs and ICON-tuned, fade-resistant Vehicle Specific valving
1.25-3 inches of adjustable front lift to dial in stance and clear larger wheel and tire combinations
Tubular upper control arms with the serviceable, rebuildable ICON Delta Joint PRO correct front-end geometry and add caster
Dual-rate rear coil springs balance on-road comfort with off-road bottoming resistance
Remote-reservoir rear shocks improve cooling and fade resistance on long runs

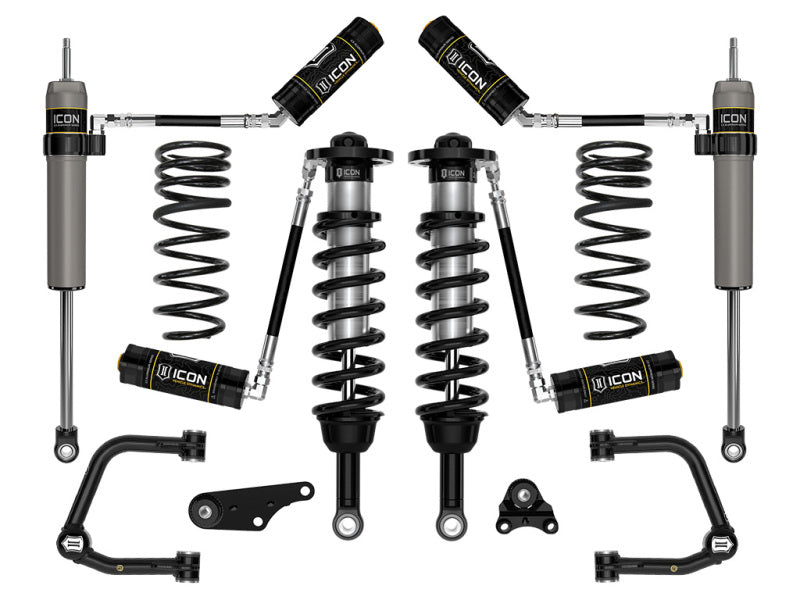

What's Included

Pair of V.S. 2.5 Series front coilovers with remote reservoirs
Tubular upper control arms with Delta Joint PRO
Front differential drop kit
Pair of 2.5 Aluminum Series remote-reservoir rear shocks
Dual-rate rear coil springs

Specifications

Stage: 5
Front lift: 1.25-3 inches (adjustable)
Rear lift: 2 inches
Front shock: 2.5 Series remote reservoir coilover
Valve: V.S. Vehicle Specific (non-adjustable)
Upper control arms: tubular with Delta Joint PRO
Position: front and rear

Fitment

Engineered specifically for the following application. This is a complete standalone suspension system and does not require a separate base lift.

2024-2025 Toyota Land Cruiser 250 Series

An adjustable track bar is recommended to realign the rear axle but is not required. Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation. Tires larger than 33 inches may require fender modification.

FAQ

Does the ICON K53365T also fit a Lexus GX550?

No. It is engineered for the 2024-2025 Toyota Land Cruiser (250 Series) only; the Lexus GX550 uses separate ICON part numbers (for example K53352T and K53353T) with a different differential drop and tire clearance. On 4WD the Land Cruiser 250 kit uses ICON diff drop part #55160, and ADAS recalibration is required after installation.

How much lift does the ICON K53365T provide, and is the damping adjustable?

It provides 1.25 to 3 inches of adjustable front lift and about 2 inches of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no external adjuster.

What does the Stage 5 system include, and how does it differ from the other ICON stages?

Stage 5 steps the rear up to 2.5 Aluminum Series remote-reservoir shocks over the lower stages, with tubular upper control arms, dual-rate rear springs and ICON's non-adjustable V.S. valving.
