ICON Stage 3 Tubular Suspension System for 24-25 Toyota LC250

Name: ICON Stage 3 Tubular Suspension System for 24-25 Toyota LC250
Brand: ICON
SKU: K53363T
Price: 3657.05 USD
Availability: InStock

$3,657.05 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53363T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Vehicle-specific 2.5 Series front coilovers with internal reservoirs for cooler, fade-resistant performance
Tubular Delta Joint PRO upper control arms correct geometry and add caster for sharper on-road handling
Adjustable 1.25 to 3 inches of front lift to fit larger wheel and tire combinations
Front differential drop kit prevents CV bind and maximizes available suspension travel
Polyurethane differential mounting bushings limit diff movement under load
Matched 2.0 Series rear shocks and dual-rate springs balance ride quality front to rear
Billet adjustable rear track bar re-centers the axle with on-vehicle fine tuning
Complete bolt-on system engineered specifically for the Land Cruiser 250 Series

The ICON Vehicle Dynamics K53363T Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Land Cruiser 250 Series, providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Adjustable 1.25 to 3 inches of front lift for clearing larger, more aggressive wheel and tire packages
2.5 Series coilovers with internal reservoirs run cooler and resist fade on long off-road days
Tubular Delta Joint PRO upper control arms correct front-end geometry and add caster for confident on-road manners
Front differential drop kit and tuned coilover length maximize travel and prevent CV bind
Matched 2.0 Series rear shocks and dual-rate springs balance the truck front to rear
Billet adjustable rear track bar re-centers the axle with easy on-vehicle adjustment

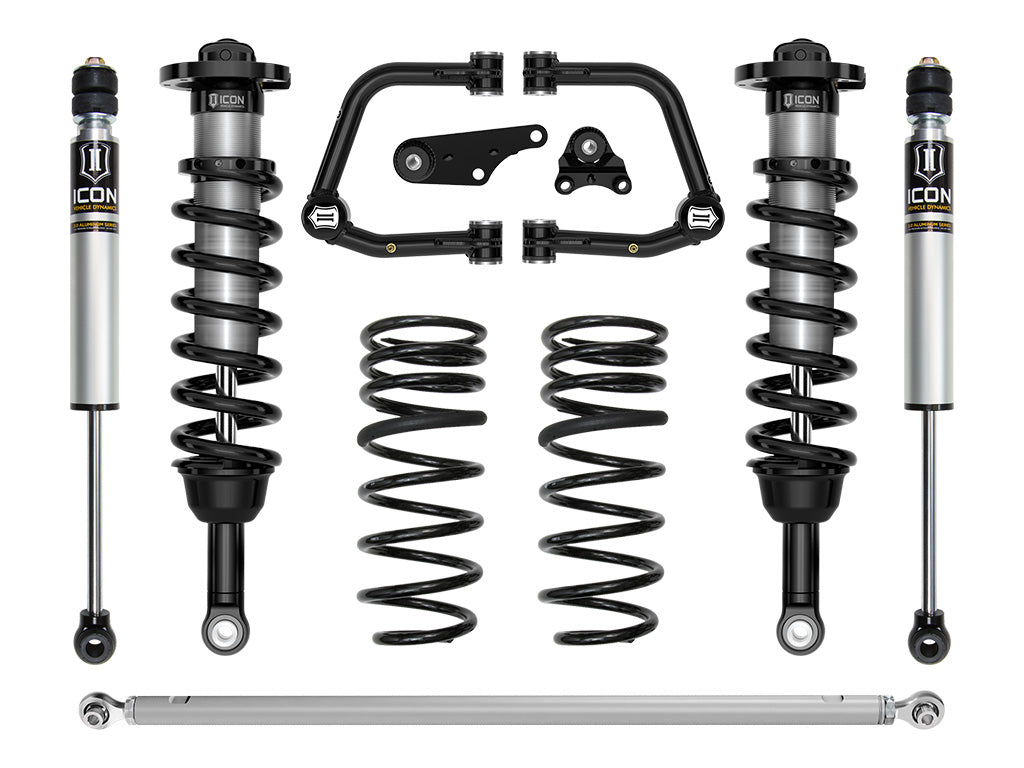

What's Included

Front 2.5 Series VS internal-reservoir coilover kit (pair)
Tubular Delta Joint PRO upper control arm kit
Front differential drop kit with polyurethane diff mounting bushings
Rear 2.0 Series VS internal-reservoir shocks (pair)
2-inch dual-rate rear spring kit
Billet adjustable rear track bar

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53363T
Stage: 3 (Tubular)
Front lift: 1.25 to 3 inches (adjustable)
Rear lift: approximately 2 inches
Front shock: 2.5 Series internal reservoir, vehicle-specific tuned
Rear shock: 2.0 Series internal reservoir, vehicle-specific tuned
Upper control arms: tubular with Delta Joint PRO
Position: front and rear (complete system)

Fitment

This complete suspension system is engineered specifically for the following vehicle. ADAS sensor recalibration is required after installation.

2024-2025 Toyota Land Cruiser 250 Series

FAQ

Does the ICON K53363T also fit a Lexus GX550?

No. It is engineered for the 2024-2025 Toyota Land Cruiser (250 Series) only; the Lexus GX550 uses separate ICON part numbers (for example K53352T and K53353T) with a different differential drop and tire clearance. On 4WD the Land Cruiser 250 kit uses ICON diff drop part #55160, and ADAS recalibration is required after installation.

How much lift does the ICON K53363T provide, and is the damping adjustable?

It provides 1.25 to 3 inches of adjustable front lift and about 2 inches of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no external adjuster.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 adds a billet adjustable rear track bar over the Stage 2 (K53362T) to re-center the axle after lift; both use tubular upper control arms and V.S. 2.5 Series coilovers.
