ICON Stage 2 Tubular Suspension System for 2024-2025 Land Cruiser 250

Name: ICON Stage 2 Tubular Suspension System for 2024-2025 Land Cruiser 250
Brand: ICON
SKU: K53362T
Price: 3266.7 USD
Availability: InStock

$3,266.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53362T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 1.25-3in front lift with 2in rear lift for a level, aggressive stance
2.5 Series front coilovers with internal reservoirs resist heat fade on long trails
Tubular upper control arms restore correct geometry and add caster for stable steering
Rebuildable ICON Delta Joint PRO eliminates ball-joint bind through full travel
Dual-rate rear coils deliver on-road comfort and off-road bottoming resistance
Complete front-and-rear system tuned specifically for the Land Cruiser 250 Series
Front differential drop brackets and poly diff bushings included for proper geometry

The ICON Vehicle Dynamics K53362T Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2025 Toyota Land Cruiser 250 Series, providing 1.25 to 3 inches of adjustable front lift and clearing up to a 33x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Adjustable 1.25-3in of front lift to clear larger tires and level the stance
Vehicle-tuned 2.5 Series front coilovers with internal reservoirs for superior cooling and fade resistance
Tubular upper control arms correct front-end geometry and add caster for better on-road manners
Rebuildable ICON Delta Joint PRO replaces the OE ball joint for full bump and droop travel without bind
Dual-rate rear coils blend on-road comfort with off-road bottoming resistance

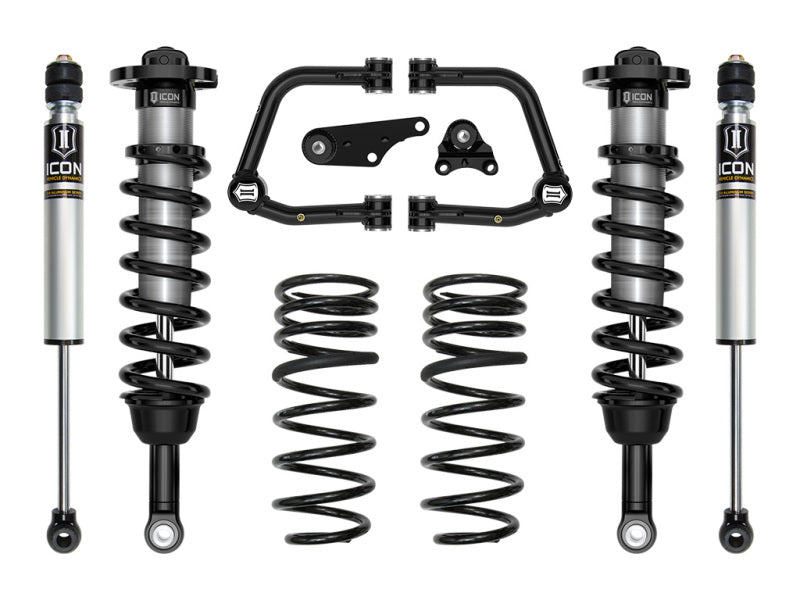

What's Included

Front 2.5 Series coilover shocks with internal reservoirs and ICON coil springs
Tubular upper control arm kit with serviceable Delta Joint PRO
Front differential drop brackets
Rear 2.0 Aluminum Series shocks
Dual-rate rear coil springs
Polyurethane differential mounting bushings

Specifications

Stage: Stage 2 (Tubular UCA)
Front lift: 1.25in to 3in (height adjustable)
Rear lift: 2in
Front shock: 2.5 Series coilover with internal reservoir
Rear shock: 2.0 Aluminum Series
Adjustment: manual (coilover ride-height adjustable)
Position: front and rear (complete system)

Fitment

Engineered specifically for the following vehicles:

2024-2025 Toyota Land Cruiser (250 Series)

An adjustable track bar is recommended to realign the axle but is not required. ADAS recalibration is required after installation.

FAQ

Does the ICON K53362T also fit a Lexus GX550?

No. It is engineered for the 2024-2025 Toyota Land Cruiser (250 Series) only; the Lexus GX550 uses separate ICON part numbers (for example K53352T and K53353T) with a different differential drop and tire clearance. On 4WD the Land Cruiser 250 kit uses ICON diff drop part #55160, and ADAS recalibration is required after installation.

How much lift does the ICON K53362T provide, and is the damping adjustable?

It provides 1.25 to 3 inches of adjustable front lift and about 2 inches of rear lift, clearing up to a 33x11.50 tire. The 2.5 Series shocks use ICON's non-adjustable Vehicle Specific (V.S.) valving, so there is no external adjuster.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 pairs V.S. 2.5 Series front coilovers with tubular upper control arms (Delta Joint PRO), a front diff drop and dual-rate rear springs with 2.0 rear shocks. Stage 3 (K53363T) adds a billet adjustable rear track bar.
