ICON Stage 1 3.0 CDCV Suspension System for 2007-2021 Toyota Tundra

Name: ICON Stage 1 3.0 CDCV Suspension System for 2007-2021 Toyota Tundra
Brand: ICON
SKU: K53165
Price: 7999.6 USD
Availability: InStock

$7,999.60 USD

Sale Sold out

Final Sale — no returns or exchanges

Shipping calculated at checkout.

SKU:K53165

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

3.0 Series remote-reservoir front coilovers for fade-free off-road damping
CDCV 10-way adjustable compression valving front and rear for terrain and load tuning
Billet Delta Joint upper control arms correct geometry and add caster
Adjustable 1.63 to 3 inches of front lift for an aggressive stance
Clears up to 35-inch tires for bigger wheel and tire setups

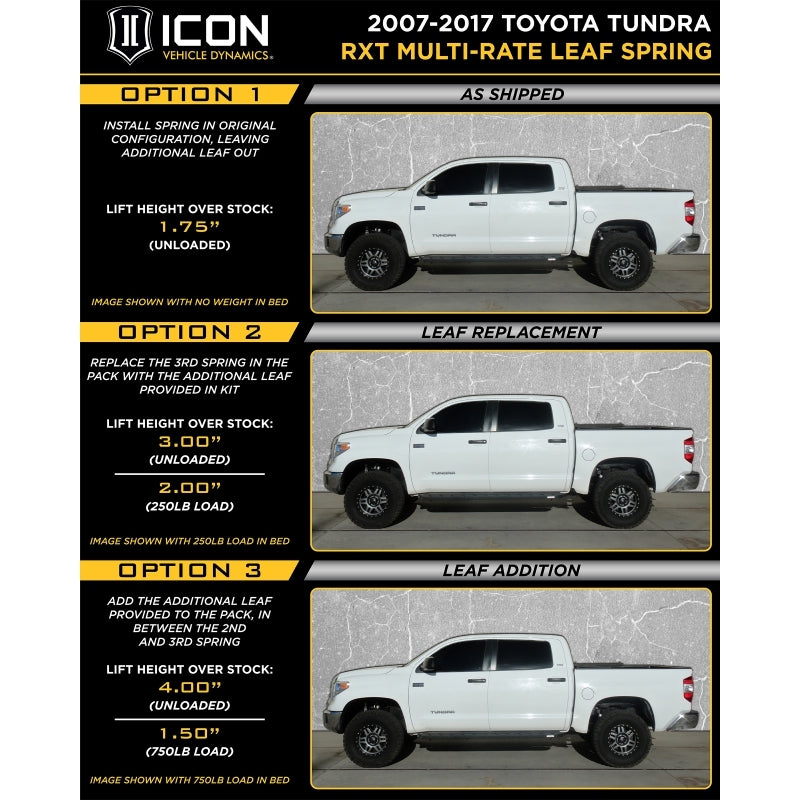

RXT multi-rate rear leaf packs balance ride quality and load capacity
Complete front-and-rear bolt-on system - no drilling, cutting, or welding

The ICON K53165 Stage 1 3.0 Suspension System is a complete bolt-on front-and-rear kit for the 2007-2021 Toyota Tundra and 2008-2022 Sequoia, combining CDCV-adjustable 3.0 Series front coilovers (1.63-3 inches of lift), billet Delta Joint upper control arms, RXT multi-rate rear leaf packs, and 2.5 Series CDCV rear shocks.

Key Benefits

3.0 Series front coilovers with remote reservoir for superior heat dissipation and fade-free performance on long off-road runs
CDCV 10-way adjustable compression valving front and rear, tuned with a large detented knob for easy, repeatable changes to suit terrain and cargo loads
Billet upper control arms with the rebuildable ICON Delta Joint for corrected geometry, added caster, and improved clearance
Height-adjustable from 1.63 to 3 inches for an aggressive stance and clearance for up to 35-inch tires
Complete front and rear system - everything needed in one box for a balanced, dialed-in ride

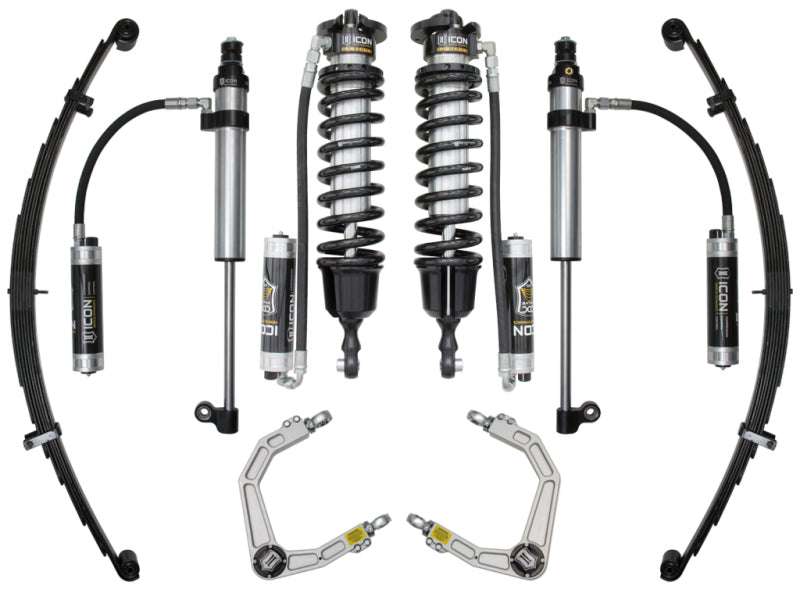

What's Included

Front 3.0 VS RR CDCV coilover kit (qty 1)
Billet upper control arms with Delta Joint kit (qty 1)
Rear 2.5 VS RR CDCV piggyback shock pair (qty 1)
RXT multi-rate rear leaf packs with add-in leaf (qty 2)
Toyota rear 8.0-inch U-bolt kit (qty 1)
Installation hardware

Specifications

Front shock: 3.0 Series remote-reservoir coilover
Rear shock: 2.5 Series remote-reservoir piggyback
Valve type: CDCV (manual 10-way compression damping control)
Front lift range: 1.63-3 inches
Recommended tire: up to 35x12.50
Install: 100% bolt-on, no drilling or cutting

Fitment

This is a stand-alone kit and must not be combined with other aftermarket lift components. It is not compatible with TRD rear sway bar kits. Confirmed fitment for the following vehicles:

2007-2021 Toyota Tundra (front)
2008-2022 Toyota Sequoia (front)

FAQ

Does the ICON K53165 fit a Sequoia?

Yes. This Stage 1 3.0 system fits the 2007-2021 Toyota Tundra and the 2008-2022 Toyota Sequoia.

Are the ICON K53165 shocks adjustable?

Yes. The 3.0 Series front coilovers and 2.5 Series rear shocks both use CDCV with 10 external compression-damping settings. The kit also includes billet Delta Joint upper control arms.

How much lift does the ICON K53165 provide?

1.63 to 3 inches of adjustable front lift, with clearance for tires up to 35x12.50. It is a stand-alone kit and should not be combined with other aftermarket lift components.
