ICON Stage 1 Suspension System for 07-21 Tundra / 08-22 Sequoia

Name: ICON Stage 1 Suspension System for 07-21 Tundra / 08-22 Sequoia
Brand: ICON
SKU: K53021
Price: 1951.25 USD
Availability: InStock

$1,951.25 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53021

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

2.5in vehicle-specific front coilovers with internal reservoir for superior heat management
Adjustable from 1 to 3 inches of lift to dial in your ideal stance and tire fitment
2.0 VS Aluminum Series rear shocks balance ride performance front to rear
FK rod end bearings deliver extended longevity with minimal deflection
CAD-plated, corrosion-resistant construction stands up to mud, salt, and weather
Increased wheel travel for improved control and comfort on rough terrain
Complete 100% bolt-on system with no cutting, drilling, or welding

Transform the ride and stance of your 2007-2021 Toyota Tundra or 2008-2022 Toyota Sequoia with the ICON Vehicle Dynamics K53021 Stage 1 Suspension System. Engineered for the serious driver, this complete system increases wheel travel and damping ability for outstanding vehicle control and ride quality both on and off the road.

Key Benefits

Vehicle-specific tuned 2.5in front coilovers with internal reservoir for superior cooling and fade resistance
Height adjustable from 1 to 3 inches of lift to clear larger, more aggressive wheel and tire packages
ICON 2.0 VS Aluminum Series rear shocks valved to balance front-to-rear performance
FK rod end bearings for extended longevity and minimal deflection
Corrosion-resistant CAD-plated coilover bodies built to endure harsh conditions
100% bolt-on installation with no cutting, drilling, or welding required

What's Included

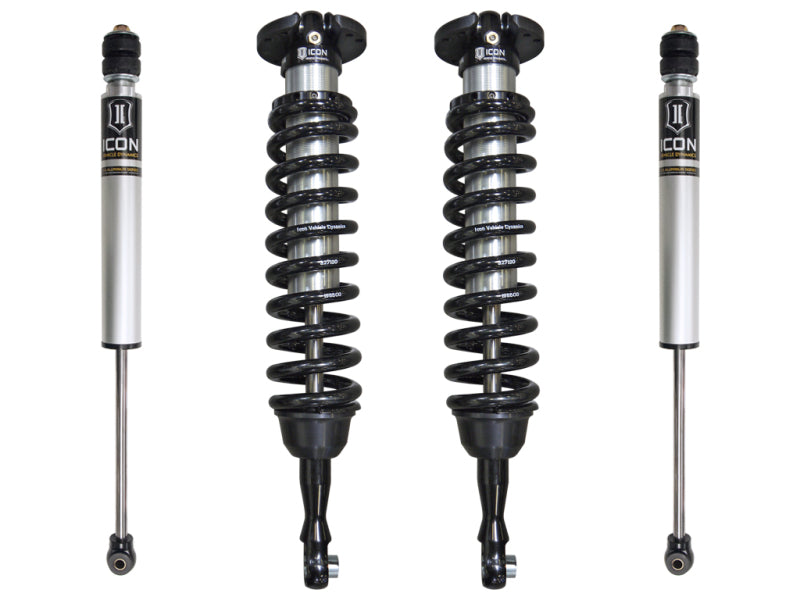

Pair of ICON 2.5in front coilover shocks (height adjustable 1-3in)
Pair of ICON 2.0 VS Aluminum Series rear shocks
Mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53021
Stage: Stage 1
Front: 2.5in coilover, internal reservoir, adjustable 1-3in
Rear: 2.0 VS Aluminum Series shock
Lift Range: 1in - 3in
Position: Front and Rear (complete system)

Fitment

Direct-fit for the following Toyota models (2WD and 4WD):

2007-2021 Toyota Tundra
2008-2022 Toyota Sequoia

Note: Factory upper control arms will not align properly past 2.5in of lift. Above 2.5in of lift, an aftermarket upper control arm is recommended. Fender trimming may be required to run 35in tires.

FAQ

Does this ICON Stage 1 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra and 2008-2022 Sequoia; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53021 provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire. Factory upper control arms will not align properly past 2.5 inches of lift, so an aftermarket upper control arm is recommended above that height.

What is the difference between this Stage 1 system and the other ICON Tundra stages?

Stage 1 uses 2.5 inch internal-reservoir front coilovers and 2.0 rear shocks with no rear expansion pack and no upper control arms.
