ICON 2.5 VS IR Coilover Kit for 07-21 Tundra/08-22 Sequoia

Transform the front suspension of your 2007-2021 Toyota Tundra or 2008-2022 Sequoia with the ICON Vehicle Dynamics 2.5 Series VS internal-reservoir coilover kit (PN 58650). Engineered for street comfort and off-road control, this front coilover pair delivers 1 to 3 inches of adjustable lift and adds 2 inches of usable wheel travel over the factory shocks.

Key Benefits

• Large 2.5-inch shock body increases oil capacity and resists heat fade on long, rough trails
• Velocity-sensitive race piston with flutter-stack compression valving tunes itself to terrain for a controlled ride
• Integrated coilover design provides 1-3 inches of front lift with on-vehicle ride-height adjustment
• Adds 2 inches of front wheel travel for improved articulation and bump absorption
• Internal reservoir keeps a clean, factory-style footprint with no remote hoses to route

What's Included

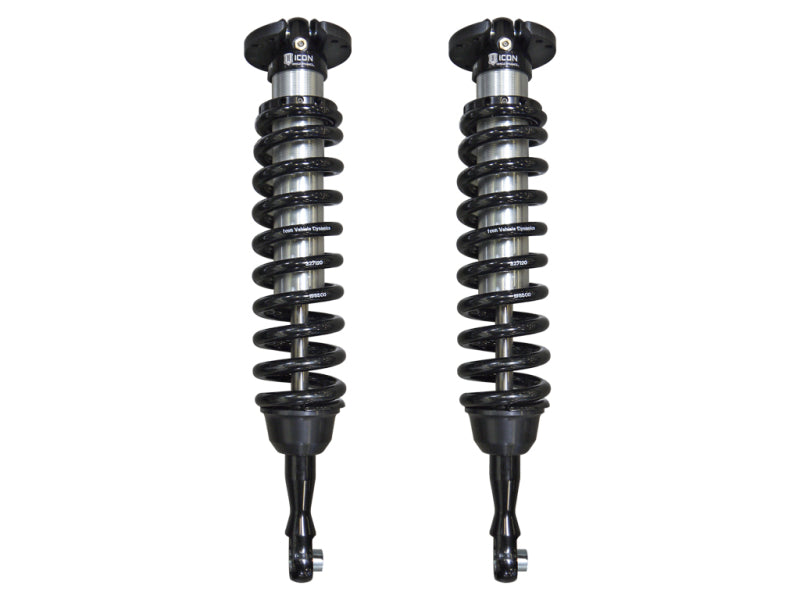

• Pair of ICON 2.5 Series VS internal-reservoir front coilovers (left and right)
• ICON-engineered chrome-silicon coil springs
• All hardware required for installation

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: 58650
• Series: 2.5 Velocity Sensitive (VS)
• Reservoir: Internal Reservoir (IR)
• Valving: Non-adjustable, velocity-sensitive flutter-stack
• Position: Front (pair)
• Lift Range: 1-3 inches adjustable
• Added Wheel Travel: 2 inches
• Construction: 6061 aircraft-grade CNC-machined aluminum components

Fitment

Direct bolt-on front fitment for the following vehicles. Factory upper control arms align correctly up to 2.5 inches of lift; above 2.5 inches an aftermarket upper control arm is recommended. This is a front kit only - rear shocks are sold separately.

• 2007-2021 Toyota Tundra (front)
• 2008-2022 Toyota Sequoia (front)
